Belimo AFB24-SR Damper Actuator
Belimo AFB24-SR Damper Actuator
Low stock: 5 left
Couldn't load pickup availability
SKU:235687
View full details
![Belimo AFB24-SR Damper Actuator — New England Supply House spec card [NESH-SPEC-CARD-V2]](http://newenglandsupplyhouse.com/cdn/shop/files/spec-9031636418782.png?v=1782833054&width=1445)

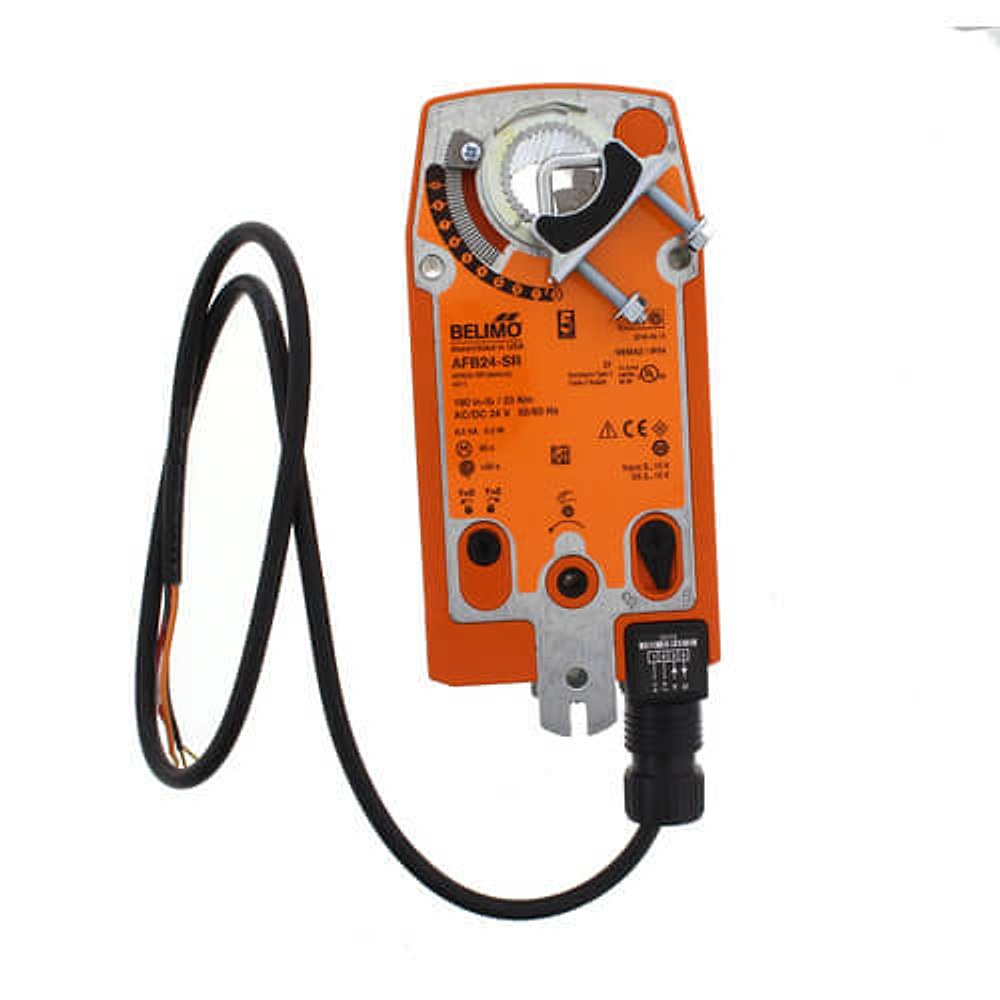

The Belimo AFB24-SR Damper Actuator is a direct-coupled, modulating damper actuator designed for HVAC systems. Its spring-return operation delivers reliable fail-safe positioning, ensuring precise air control across varied environmental conditions.
Powered by 24 V AC/DC at 50/60 Hz, it delivers 180 in-lb of torque through a 95° rotation. The output is a 2–10 V DC control signal at 0.5 mA, ideal for precise damper positioning. Its zinc-coated metal body with a plastic casing provides robust protection (NEMA 2, IP54) for challenging installations. Running power is 5.5 W; holding power is 3 W, and it accommodates shaft diameters from 1/2 in to 1.05 in for flexible mounting.
- Direct-coupled, modulating damper actuator for HVAC systems
- Spring-return operation for fail-safe positioning
- 24 V AC/DC power, 50/60 Hz
- 180 in-lb torque; 95° travel
- 2–10 V DC control signal at 0.5 mA
- Enclosure: NEMA 2, IP54; zinc-coated metal with plastic casing
- 3 ft 18 AWG appliance cable with 1/2 in conduit connector
- Includes 5 mm hex crank; UL/CE/CAN/CSA/ISO 9001 approvals

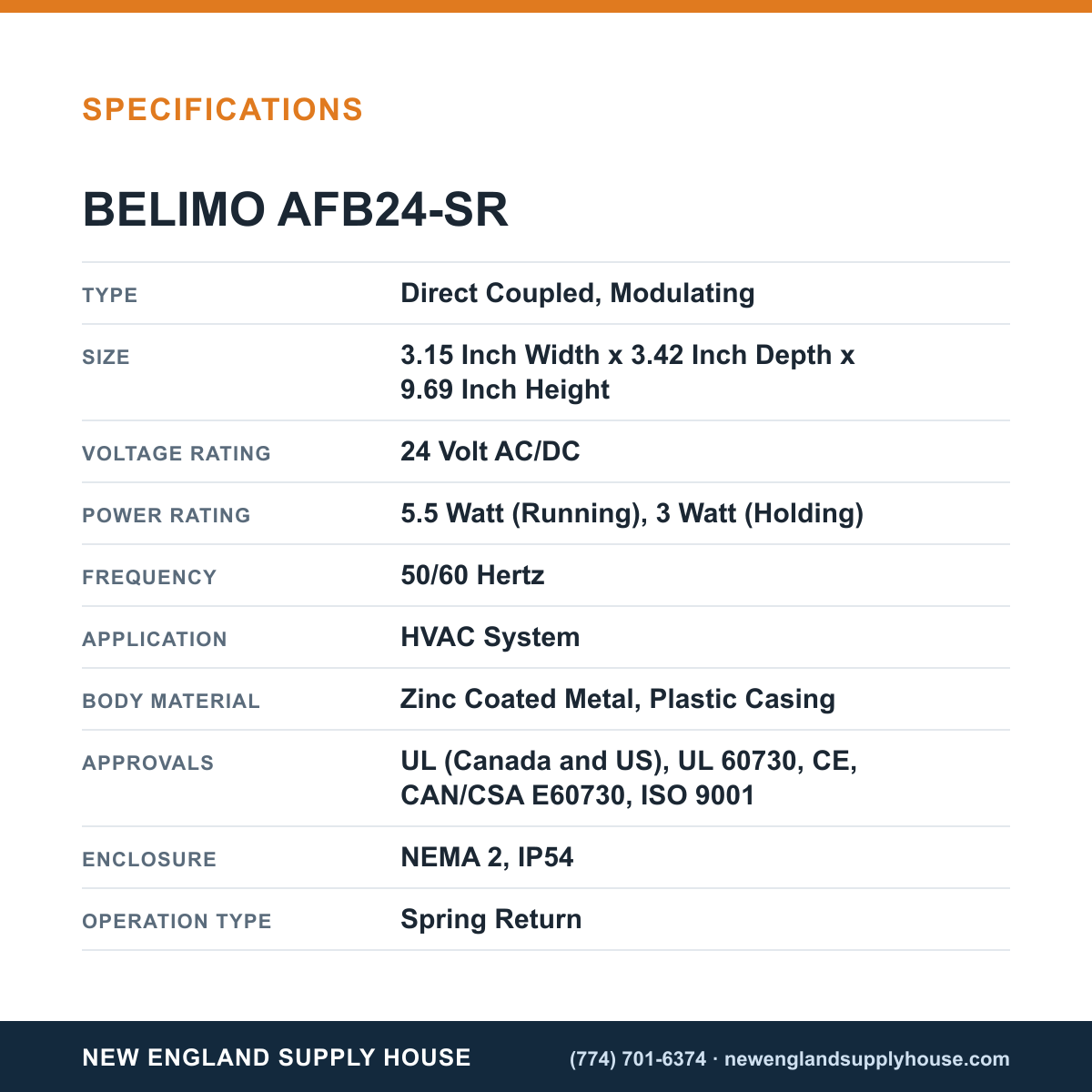

Specifications
| Type | Direct Coupled, Modulating |
|---|---|
| Size | 3.15 Inch Width x 3.42 Inch Depth x 9.69 Inch Height |
| Voltage Rating | 24 Volt AC/DC |
| Power Rating | 5.5 Watt (Running), 3 Watt (Holding) |
| Frequency | 50/60 Hertz |
| Application | HVAC System |
| Body Material | Zinc Coated Metal, Plastic Casing |
| Approvals | UL (Canada and US), UL 60730, CE, CAN/CSA E60730, ISO 9001 |
| Enclosure | NEMA 2, IP54 |
| Operation Type | Spring Return |
| Angle of Rotation | 95 Degree |
| Torque | 180 Inch-Pound |
| Shaft Diameter | 1/2 to 1.05 Inch |
| Operating Temperature | -22 to 122 Deg F |
| Supply Connection | 3 Foot 18 AWG Appliance Cable with 1/2 Inch Conduit Connector |
| Output Signal | 2 to 10 Volt DC, 0.5 Milliamp |
| Max AC Voltage | 24 Volt |
| Max DC Voltage | 24 Volt |
