Belimo GMB24-3 Damper Actuator

The Belimo GMB24-3 Damper Actuator is a compact HVAC damper actuator delivering reliable ON/OFF control with direct-coupled, floating point operation. Designed for non-spring return applications, it runs on 24 Volt AC/DC and supports 50/60 Hz, ensuring compatibility across a wide range of commercial systems. This rugged unit combines precise positioning with long-term reliability, making it a trusted choice for dampers in classrooms, offices, and industrial facilities.

It features a weather-resistant enclosure (NEMA 2, IP54) and comes with an anti-rotation strap for secure mounting. With a torque of 360 in-lb and a 95° rotation, the GMB24-3 provides dependable damper control while complying with UL 60730, UL (Canada and US), CAN/CSA E60730, CE, and ISO 9001 standards.

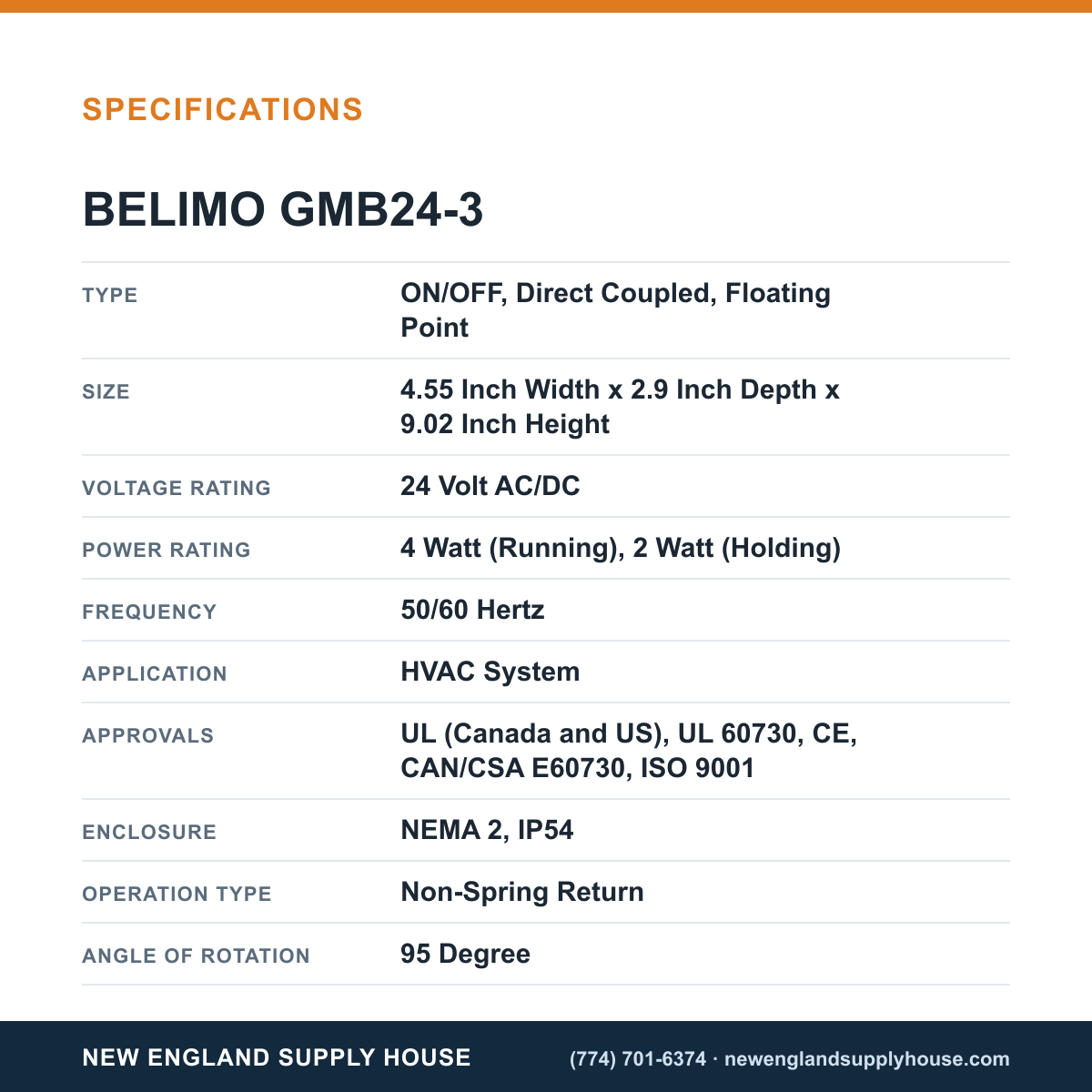

• Voltage: 24V AC/DC; Frequency: 50/60 Hz
• Power: 4 W (Running), 2 W (Holding)
• Torque: 360 in-lb
• Angle of rotation: 95°
• Enclosure: NEMA 2, IP54
• Size: 4.55"W x 2.9"D x 9.02"H
• Shaft diameter: 1/2" to 1.05"
• Supply connection: 3 ft 18 AWG appliance cable with 1/2" conduit connector
• Operating temperature: -22 to 122°F
• Application: HVAC System
• Approvals: UL (Canada & US), UL 60730, CE, CAN/CSA E60730, ISO 9001
• Includes: Anti-rotation strap
