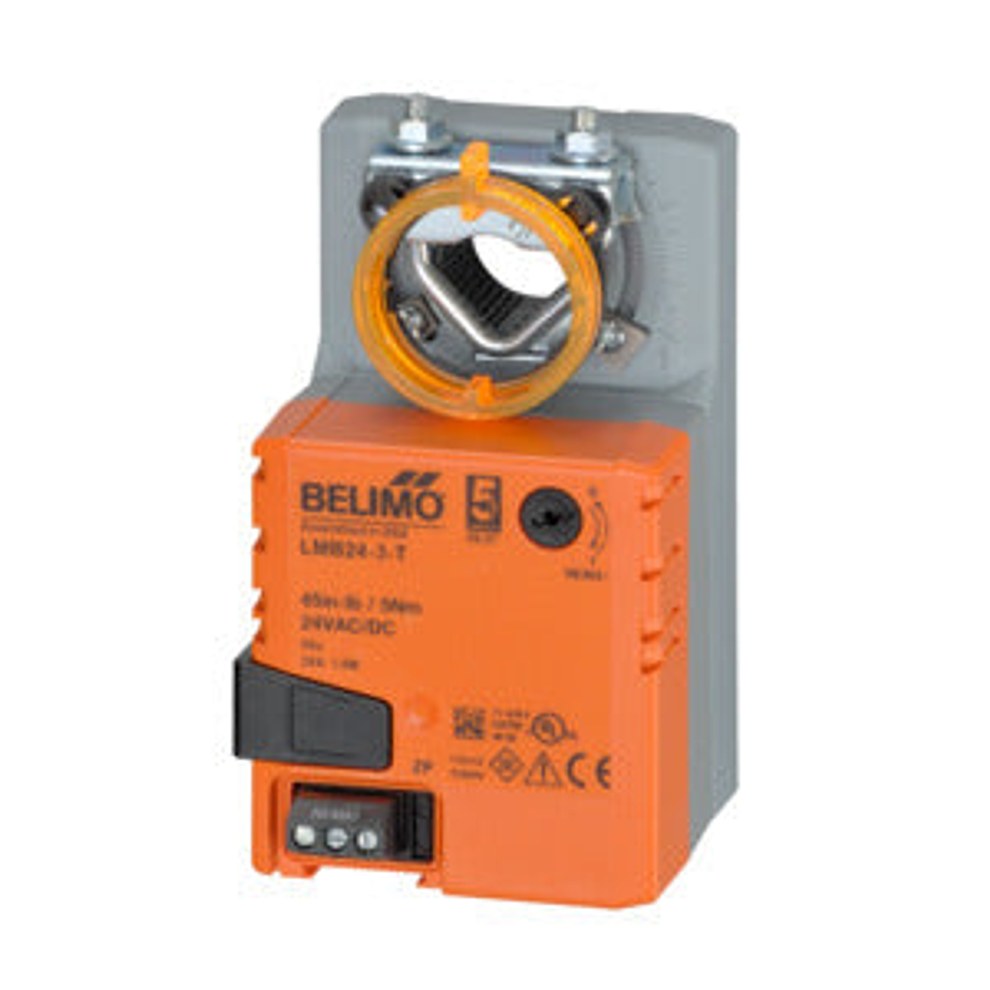

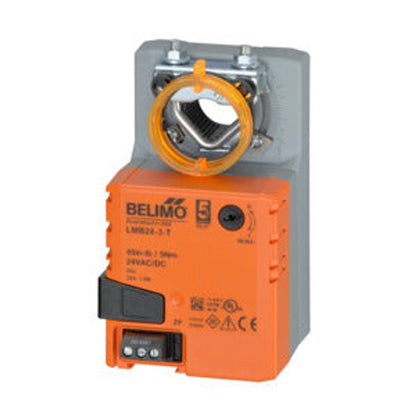

Belimo LMB24-3-T Damper Actuator

The Belimo LMB24-3-T Damper Actuator is a reliable ON/OFF damper actuator with direct coupled, floating point control for precise HVAC modulation. This 24V AC/DC unit delivers efficient performance with 1.5 W running power and 0.2 W holding power, ideal for continuous operation in VAV systems.

With a 95° rotation and 45 in-lb torque, it fits compact spaces (2.6 in W x 2.34 in D x 6.57 in H) and attaches to shafts from 1/4 to 5/8 inch. The enclosure is NEMA 1 with IP20 protection, ensuring dependable performance in typical HVAC environments.

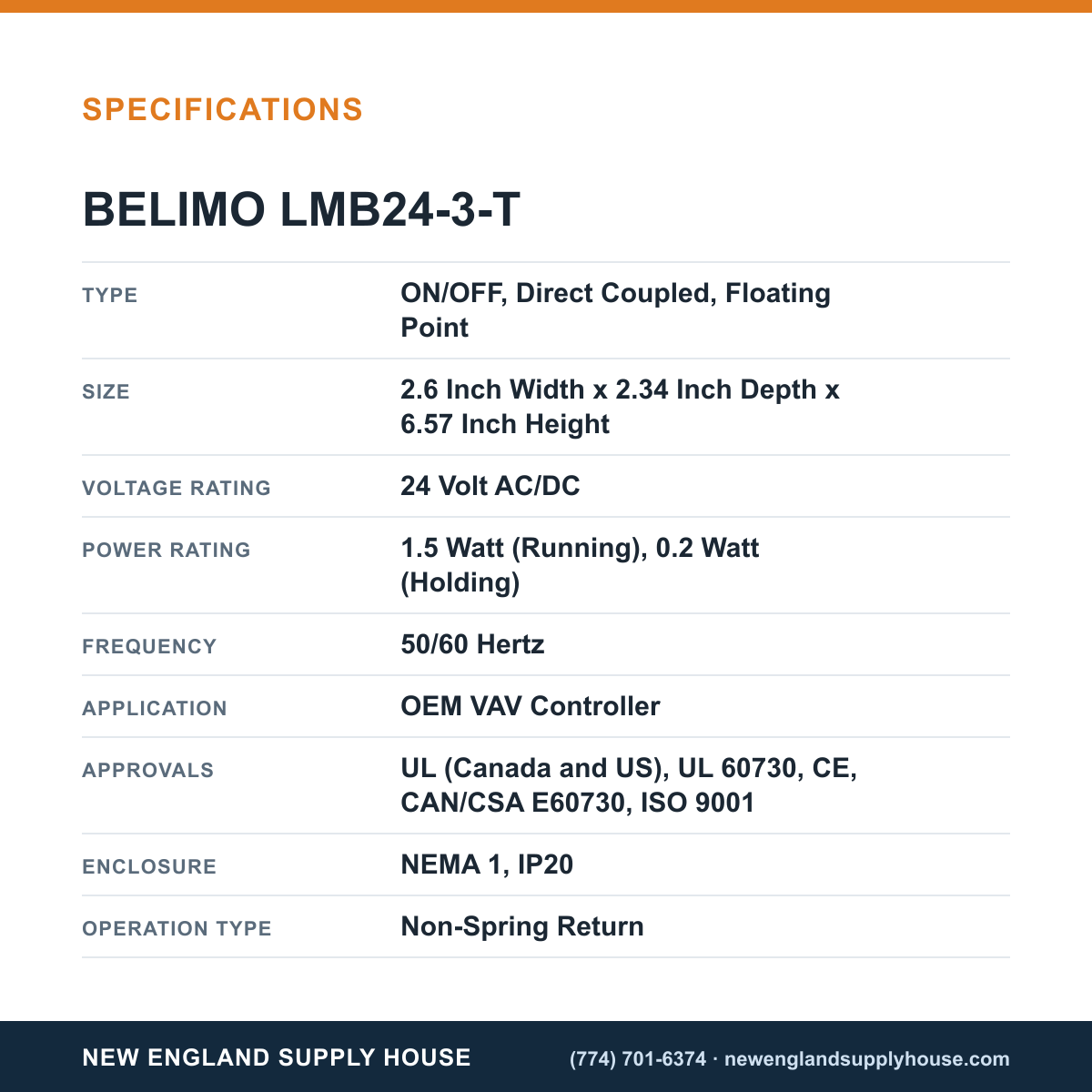

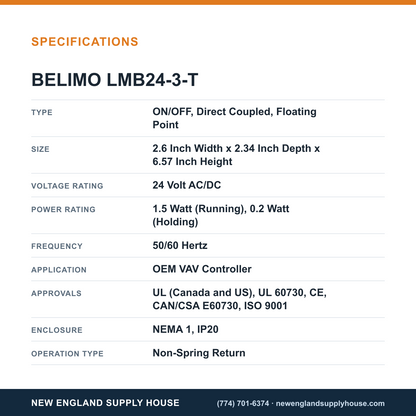

• Type: ON/OFF, Direct Coupled, Floating Point
• Voltage: 24V AC/DC
• Power: 1.5 W running, 0.2 W holding
• Torque/Rotation: 45 in-lb, 95°
• Enclosure: NEMA 1, IP20
• Connection: Supply terminals for 26–14 AWG wire
• Operating Temp: -22 to 122°F
• Application: OEM VAV Controller
• Includes: Anti-Rotation Strap
• Certifications: UL (Canada/US), UL 60730, CE, CAN/CSA E60730, ISO 9001

Engineered for reliable performance and easy integration, the Belimo LMB24-3-T is a smart choice for modern air handling systems.
