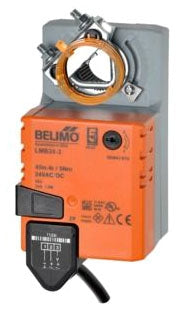

Belimo LMB24-HM Damper Actuator

The Belimo LMB24-HM Damper Actuator is a direct-coupled, modulating damper actuator designed for OEM VAV controllers. This non-spring return unit delivers precise control in 24 V systems and is built for reliable, energy-efficient operation in commercial HVAC applications.

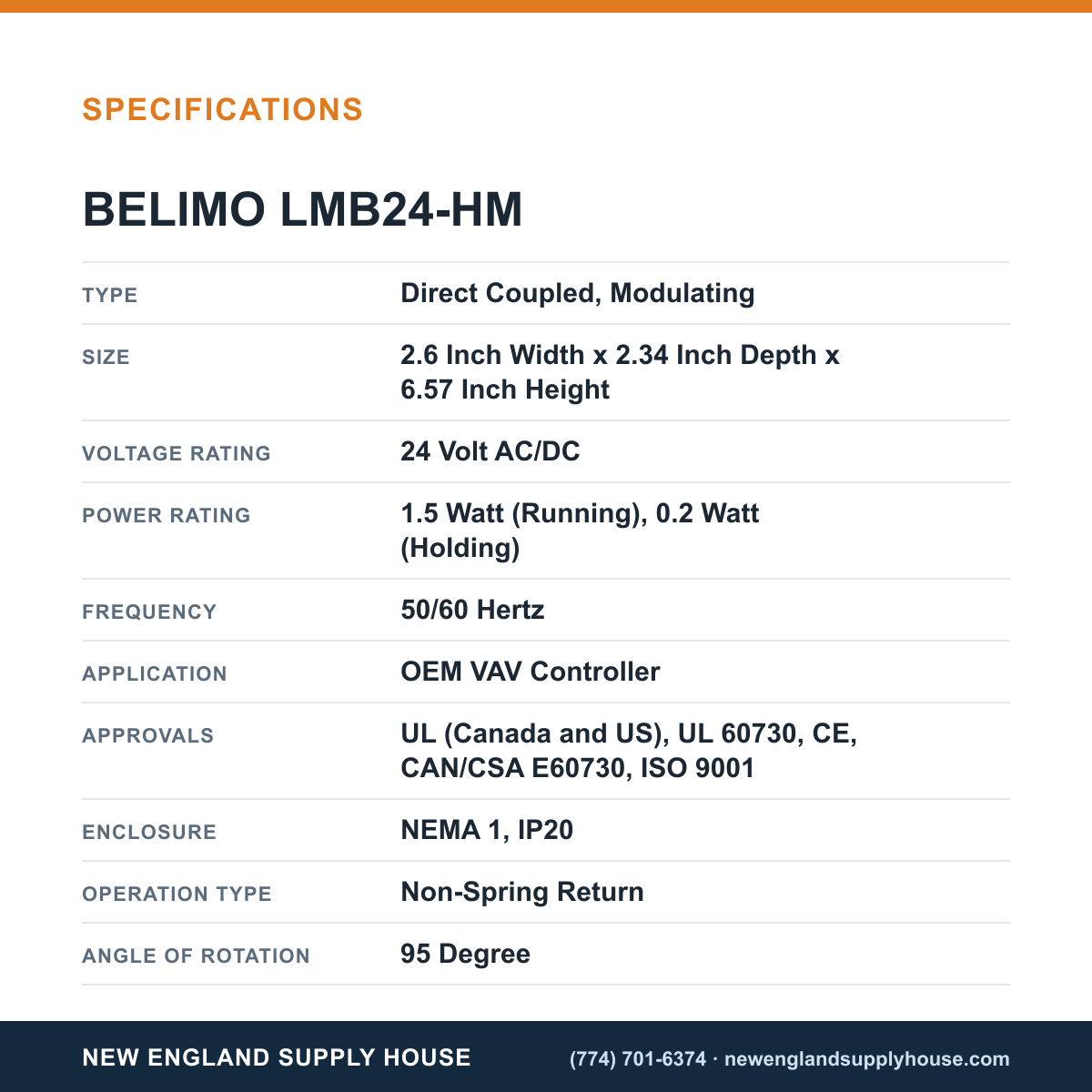

Operating at 24V AC/DC, 50/60 Hz, it provides 45 in-lb of torque and a 95° travel, enabling flexible damper positioning in tight spaces. The compact enclosure (NEMA 1, IP20) keeps installations protected in indoor environments, while the shaft compatibility (1/4" to 5/8") and 18 AWG 2-conductor plenum cable support easy wiring and durable performance.

• Direct-coupled, modulating design for precise damper positioning with minimal backlash.
• Non-spring return ensures controlled operation and adaptable fail-safe behavior.
• Voltage: 24V AC/DC at 50/60 Hz for compatibility with standard HVAC controls.
• Torque/Travel: 45 in-lb and 95° rotation for versatile damper reach.
• Enclosure: NEMA 1, IP20; compact footprint for tight ceilings and plenums.
• Physicals: Shaft 1/4" to 5/8"; 2-conductor plenum cable setup.
• Operating range: -22 to 122°F (-30 to 50°C).
• Certifications: UL (Canada and US), UL 60730, CE, CAN/CSA E60730, ISO 9001.
