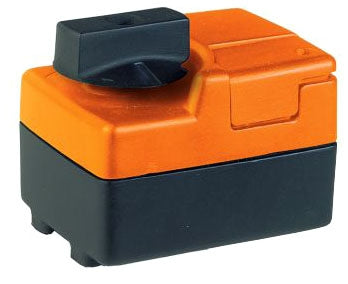

Belimo TR24-3 Valve Actuator

Belimo TR24-3 Valve Actuator is an ON/OFF, floating-point actuator designed for precise control of characterized control valves in HVAC systems. This compact, 24 Volt AC device delivers reliable valve actuation with a 90° rotation and a non-spring return mechanism, making it ideal for applications requiring straightforward, dependable control.

With a compact footprint, the TR24-3 fits tight plenums and retrofit projects, while the 24V AC supply matches standard HVAC control panels. The NEMA 1/IP40 enclosure provides dependable protection in indoor environments, and the 3 ft plenum-rated 18 AWG cable supports safe, code-compliant wiring for straightforward installation.

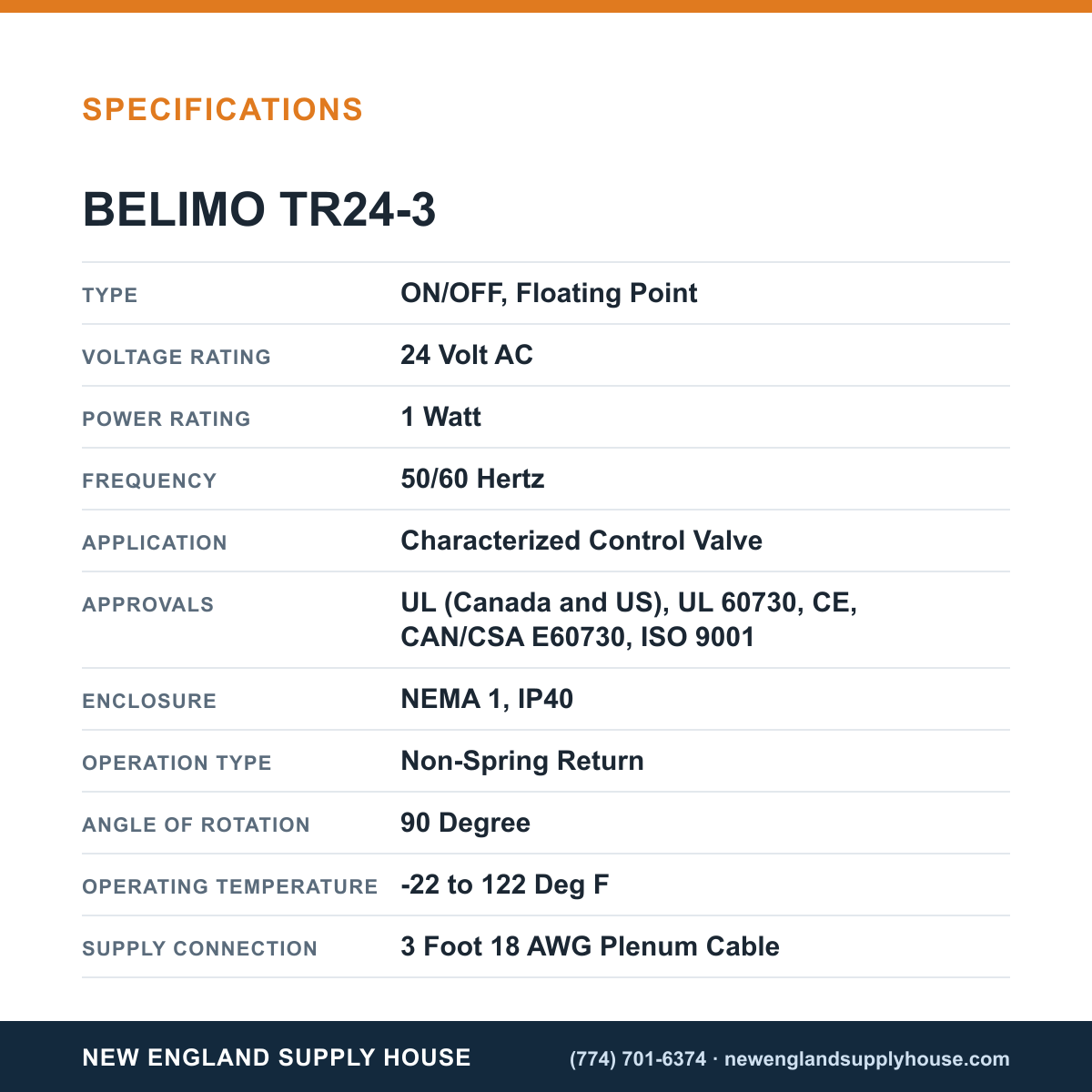

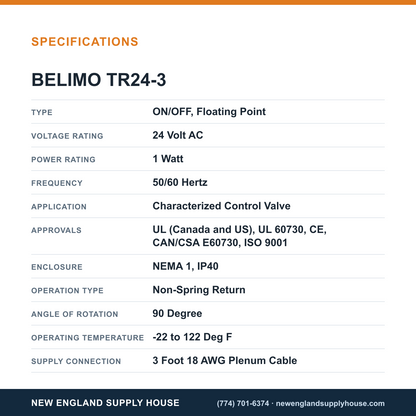

• Type: ON/OFF, Floating Point
• Operation: Non-Spring Return
• Voltage: 24 Volt AC (Max 24 V)
• Frequency: 50/60 Hz
• Power: 1 Watt
• Rotation: 90°
• Enclosure: NEMA 1, IP40
• Cable: 3 ft 18 AWG Plenum Cable
• Operating Temperature: -22 to 122 °F
• Application: Characterized Control Valve
• Approvals: UL (Canada/US), UL 60730, CE, CAN/CSA E60730, ISO 9001

Certified for reliability, this actuator carries UL (Canada and US), UL 60730, CE, CAN/CSA E60730, and ISO 9001 approvals, ensuring compatibility with common specification requirements in commercial settings.
