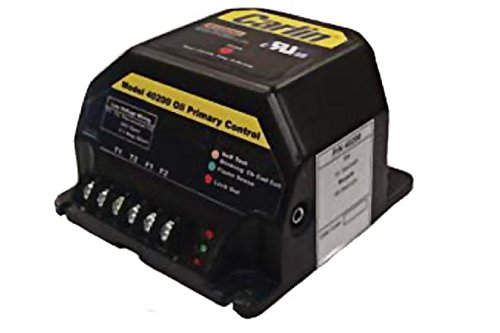

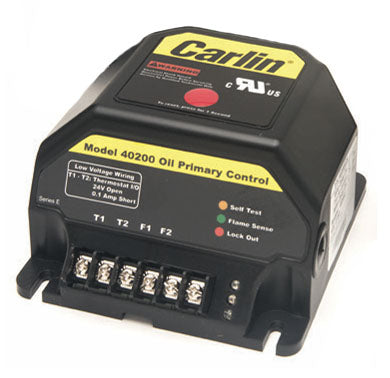

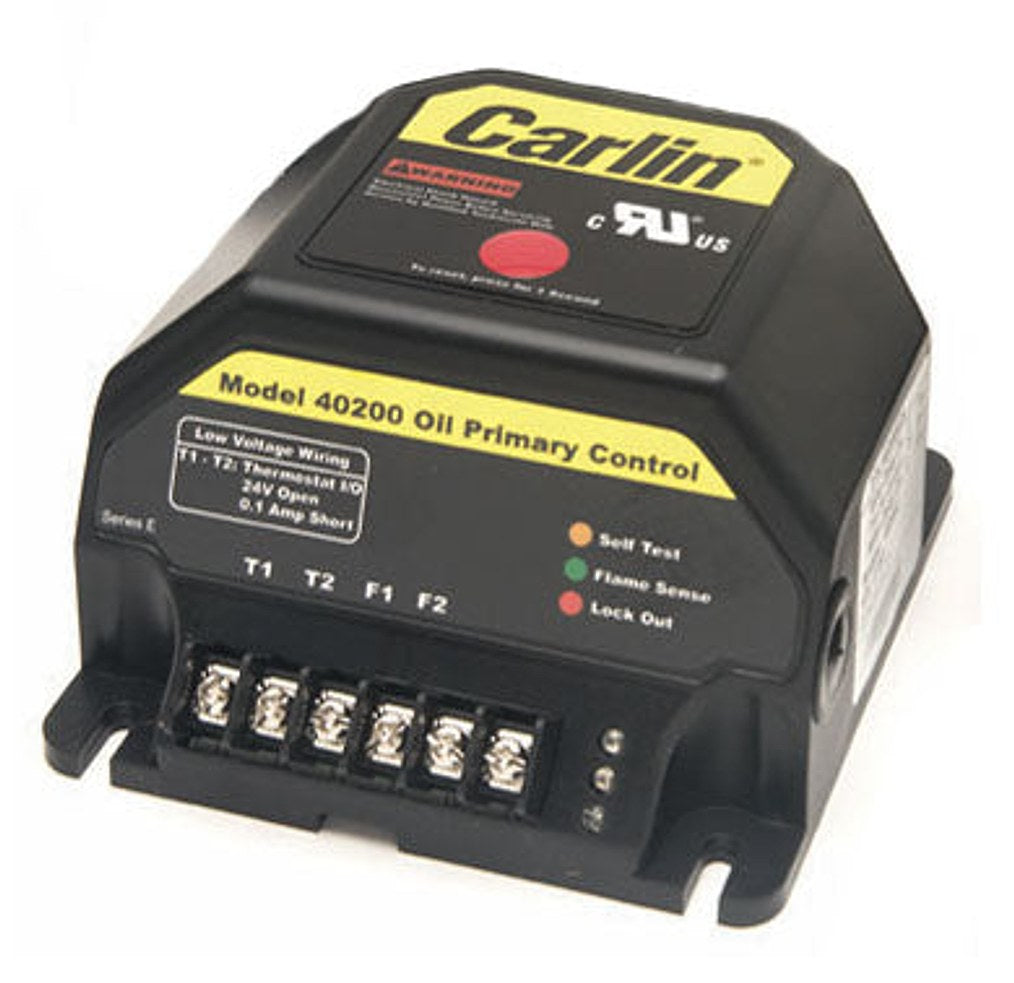

Carlin 4020002S Oil Burner Primary Control

Carlin 4020002S Oil Burner Primary Control is a reliable ignition and flame-safety solution for oil burner systems. This UL-listed primary control is designed for oil burner applications and operates on 120 Volt AC at 60 Hz, delivering a precise flame establishing period and swift safety responses. With an operating temperature range of 32–140°F, it performs reliably in typical heating environments.

Engineered for robust performance in residential or commercial installations, this oil burner control integrates ignition, flame failure monitoring, and circuit protection in a compact 4x4 inch junction box footprint. It is suitable for UL (Canada and US) approved installations and supports standard oil burner circuitry.

• Flame Establishing Period: 15 seconds
• Pilot Type: Interrupted
• Voltage Rating: 120 Volt AC at 60 Hz
• Operating Temperature: 32–140°F
• Application: Oil burner
• Power Rating: 10 VA
• Motor Load: 10 A (Full Load) / 60 A (Locked Rotor)
• Igniter Load: 120 Volt AC 60 Hz 500 VA
• Flame Failure Response Time: 1.3 seconds
• Thermostat Anticipator Current: 0.2 A AC
• Mounting: 4" x 4" Junction Box
