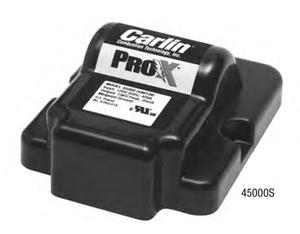

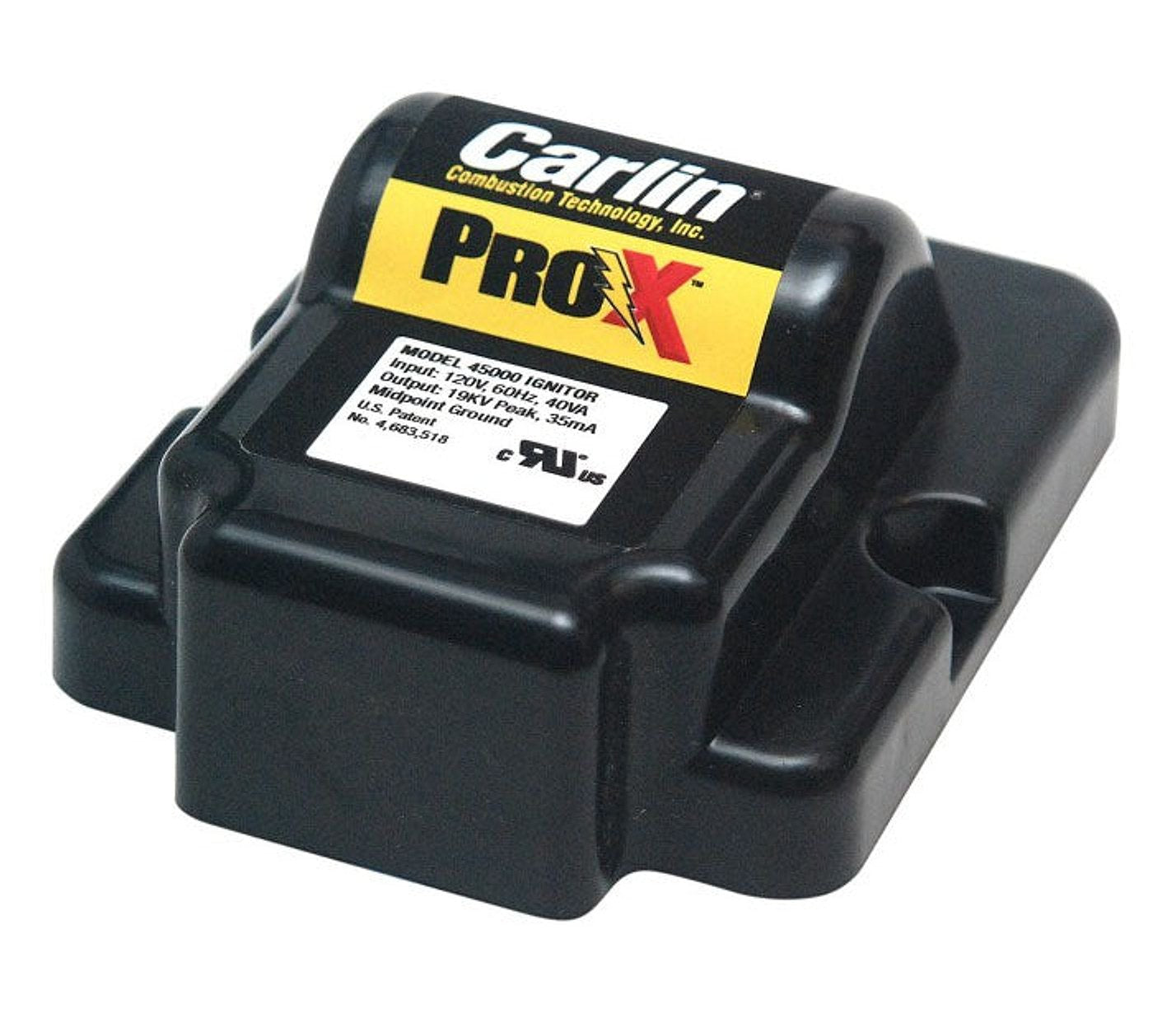

Carlin 45000S Oil Burner Universal Electronic Igniter

Carlin 45000S Oil Burner Universal Electronic Igniter is a heavy-duty universal electronic igniter designed for use on oil burner systems. This rugged unit is compatible with 201CRD/102CRD/EZ/99FRD oil burners, delivering reliable ignition across a range of models and simplifying installation in retrofit and new-build projects.

Built to meet demanding safety and reliability standards, the igniter uses proven electronic ignition technology to ensure quick starts, reduced fuel waste, and fewer at-start outages. It runs from 120 V AC at 60 Hz, handling 40 VA while delivering a reliable 19 kV ignition output at 35 mA RMS. The thermoplastic housing is mounted on a sturdy baseplate for straightforward alignment and servicing, and it operates across a wide temperature range from 32 to 140°F to suit most boiler rooms.

• Universal compatibility with 201CRD/102CRD/EZ/99FRD oil burners
• Heavy-duty construction for long service life
• Input power: 120 V AC, 60 Hz (40 VA)
• Ignition output: 19 kV, 35 mA RMS
• Baseplate mounting in a thermoplastic housing
• UL and CSA approved for US and Canada
