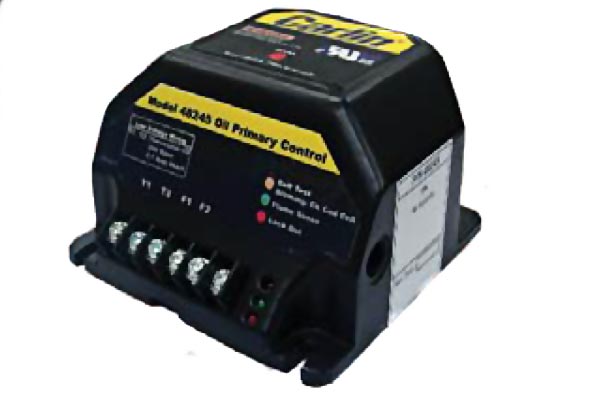

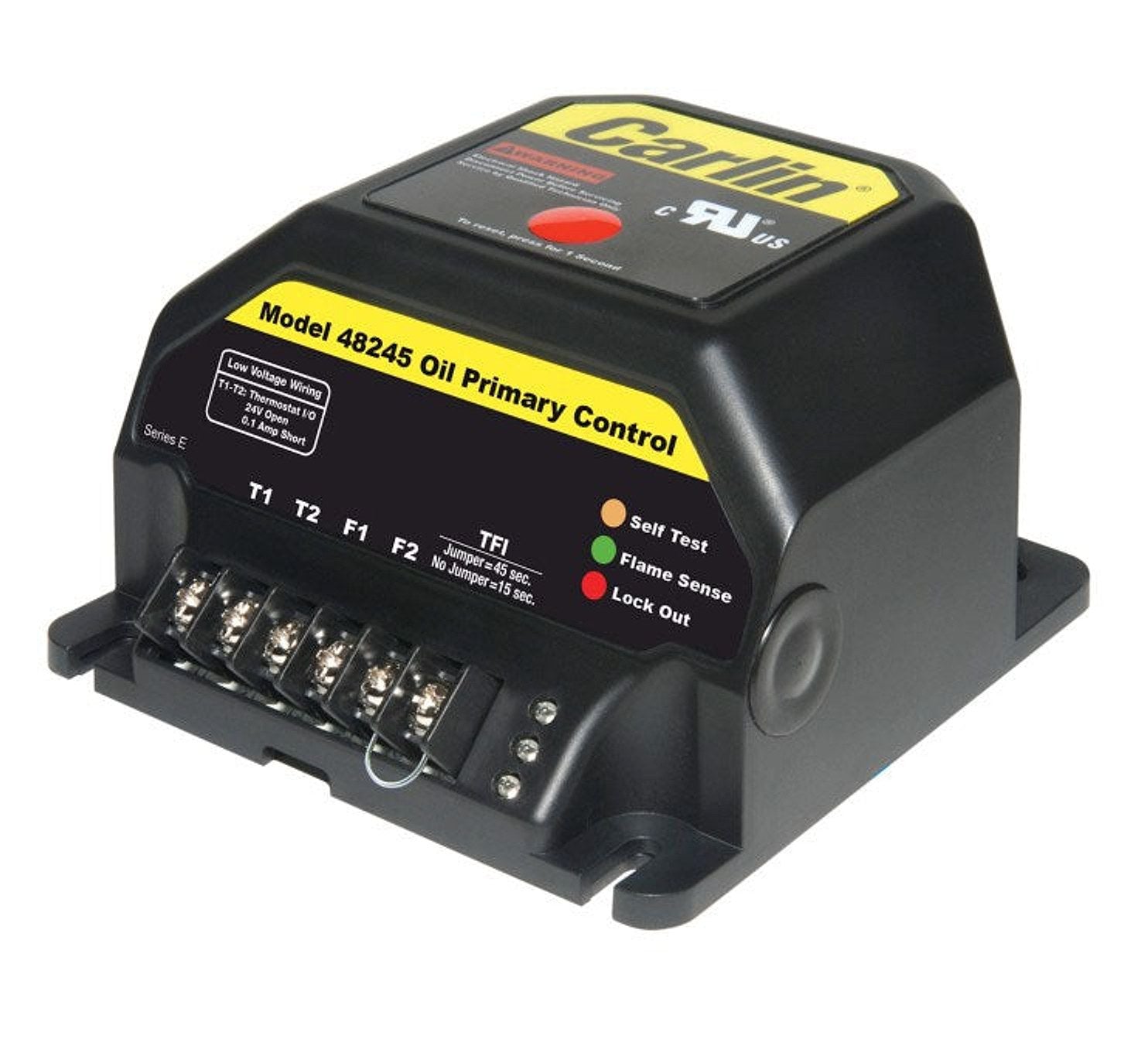

Carlin 48245S Oil Burner Primary Control

The Carlin 48245S Oil Burner Primary Control delivers reliable flame establishment and burner safety for oil-fired equipment. This UL approved control operates at 120V AC and ensures stable starts and safe shutdowns under demanding conditions.

With a flame establishing period of 45 seconds and support for constant or intermittent pilot operation, the Carlin 48245S adapts to a wide range of burner setups while delivering consistent ignition and control. Operating from 32 to 140 °F and designed for straightforward mounting in a 4x4 inch junction box, this primary control combines durability with approval for both Canada and US installations.

Built for long service life, this primary control minimizes downtime with straightforward wiring and compatible mounting options. It provides dependable ignition, safe flame establishment, and reliable protection for oil burners in residential or commercial systems, backed by UL Canada/US approval.

Features

• Flame establishing period: 45 seconds
• Pilot type: Constant/Intermittent
• Voltage rating: 120V AC at 60 Hz
• Operating temperature: 32–140 °F
• Application: Oil burner
• Approval: UL (Canada and US)
• Power rating: 10 VA
• Motor load: 10 A (full load) / 60 A (locked rotor)
• Igniter load: 120V AC, 60 Hz, 500 VA
• Thermostat anticipator current: 0.2 A AC
• Mounting: 4 in × 4 in junction box
