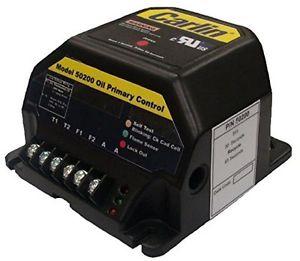

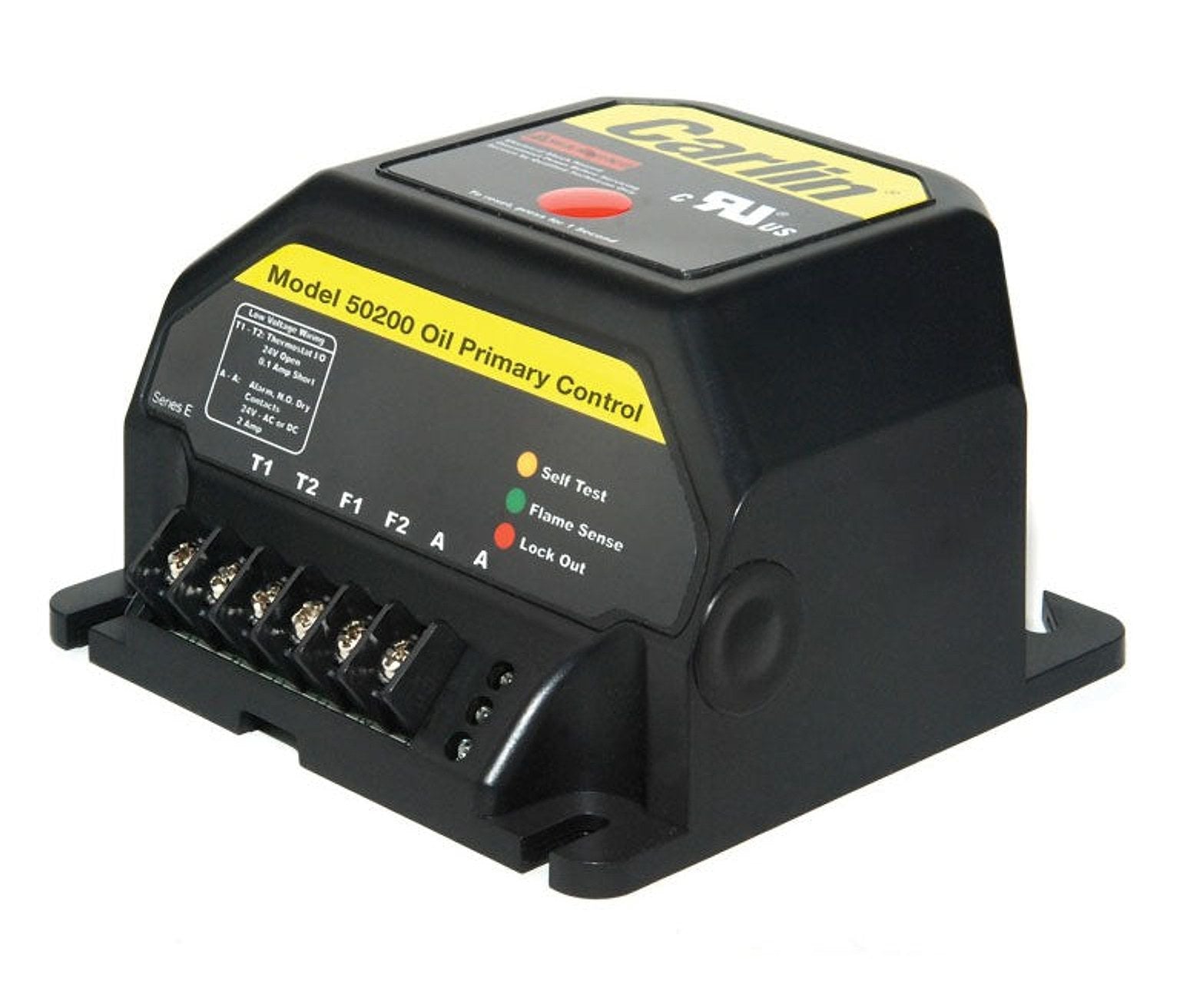

Carlin 5020002S Oil Burner Primary Control

Oil Burner Primary Control is engineered for dependable flame establishment in oil burner systems, delivering precise ignition control and safe shutdown sequences. It features a timed flame establishing period of 15 seconds and a pilot type interrupted configuration, ensuring reliable startup across varying fuel conditions. Designed for a 120 Volt AC, 60 Hz supply, it operates from 32 to 140 degrees Fahrenheit, making it suitable for cold-start and warm-weather environments. The compact 4x4 inch mounting footprint fits standard junction boxes, simplifying retrofits and new installations alike. UL approval for Canada and the US confirms compliance with essential safety standards, providing peace of mind for residential, commercial, and service applications.

• Flame establishing period: 15 seconds
• Pilot type: Interrupted
• Voltage rating: 120V AC, 60 Hz
• Power rating: 9 Volt Amp
• Motor load: 10 A (full load) / 60 A (locked rotor)
• Igniter load: 120V AC, 60 Hz, 500 VA
• Alarm contact rating: 24V AC/DC, 2 A
• Thermostat anticipator current: 0.2 A AC
• Mounting: 4 in × 4 in junction box
• Approvals: UL for Canada and US

Designed for reliable performance in demanding environments, this control brings safety, efficiency, and easy installation to your oil burner system.
