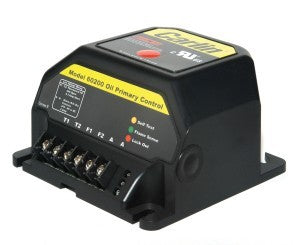

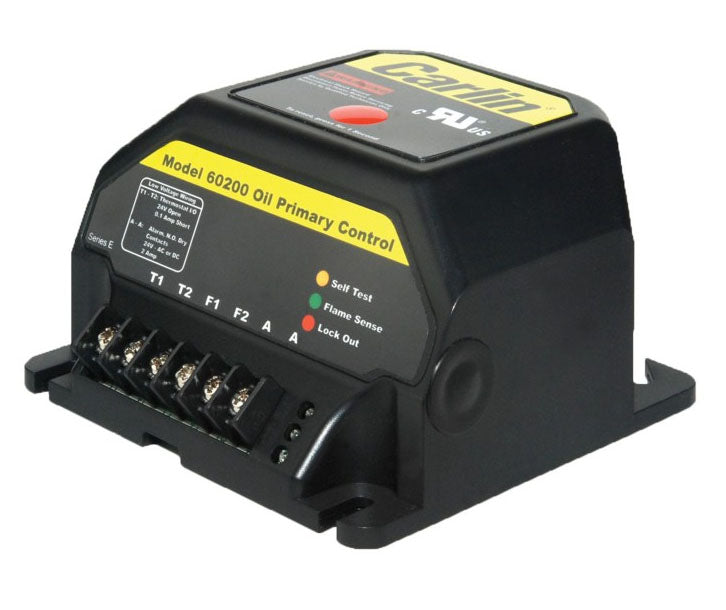

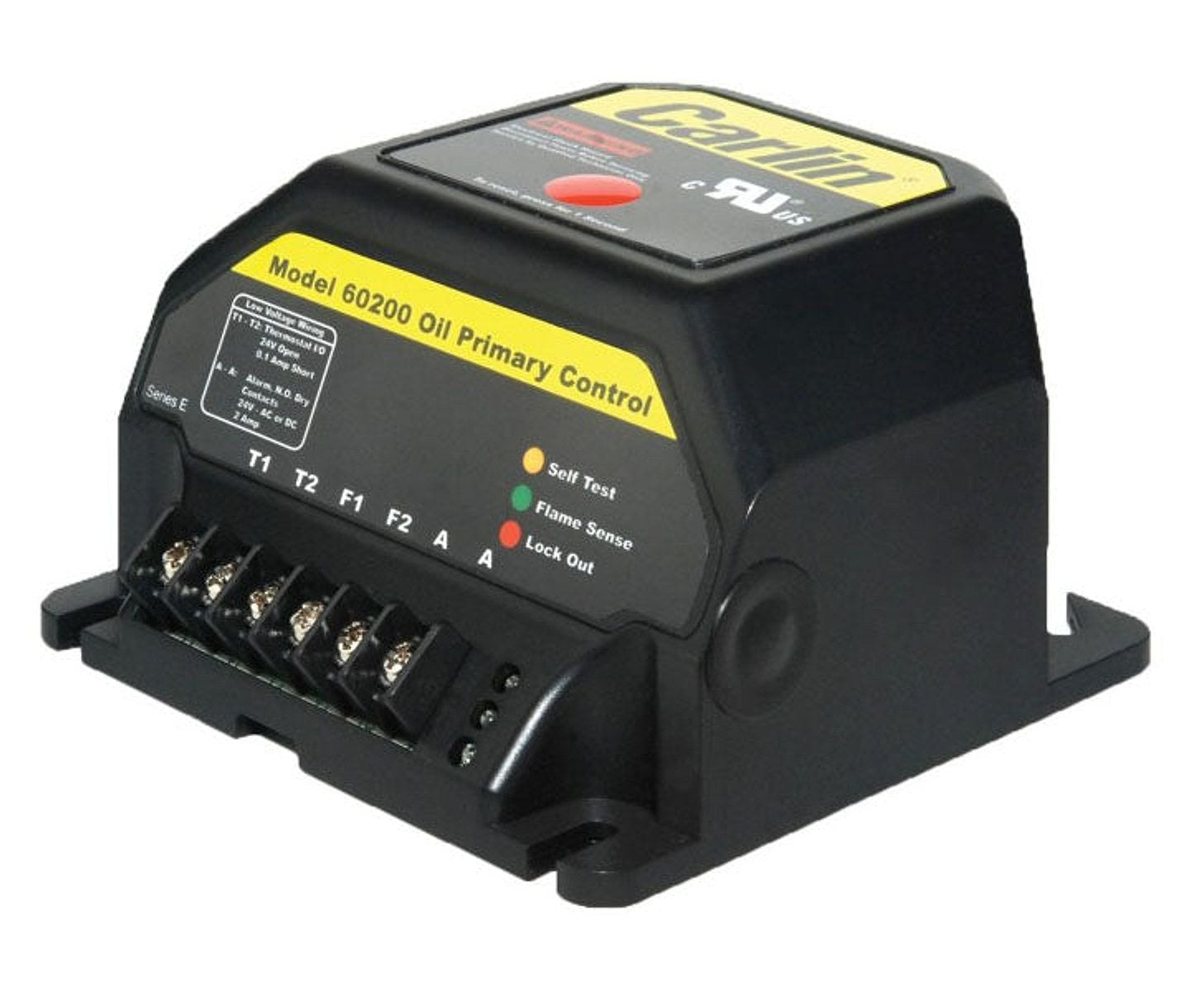

Carlin 6020002S Oil Burner Primary Control

Oil Burner Primary Control for the Carlin 6020002S delivers reliable ignition timing and flame establishing performance for oil burner systems. This UL-approved control operates on 120V AC and is designed for safe startup of oil-fired equipment.

Key specs support dependable operation in typical boilers and furnaces, with a flame establishing period of 15 seconds, pilot type interrupted, and an ambient range of 32–140°F. The unit features a compact 4x4 inch mounting footprint and a 9 VA power rating, accommodating motor loads up to 10A (full) or 60A (locked rotor). It also manages the igniter, valve, and alarm loads required by standard oil burner configurations.

• Voltage: 120V AC @ 60 Hz
• Flame Establishing Period: 15 seconds
• Pilot Type: Interrupted
• Ambient Temperature: 32–140°F
• Mounting: 4" x 4" junction box
• Power and Loads: 9 VA; Motor 10A (full) / 60A (locked rotor); Igniter 120V AC; Valve 120V AC 2A; Alarm 24V AC/DC 2A
• Thermostat Anticipator: 0.1A
• Approval: UL (Canada and US)

Designed for compatibility with Carlin 6020002S oil burner systems, this oil burner control delivers proven reliability and efficient startup for everyday heating applications.
