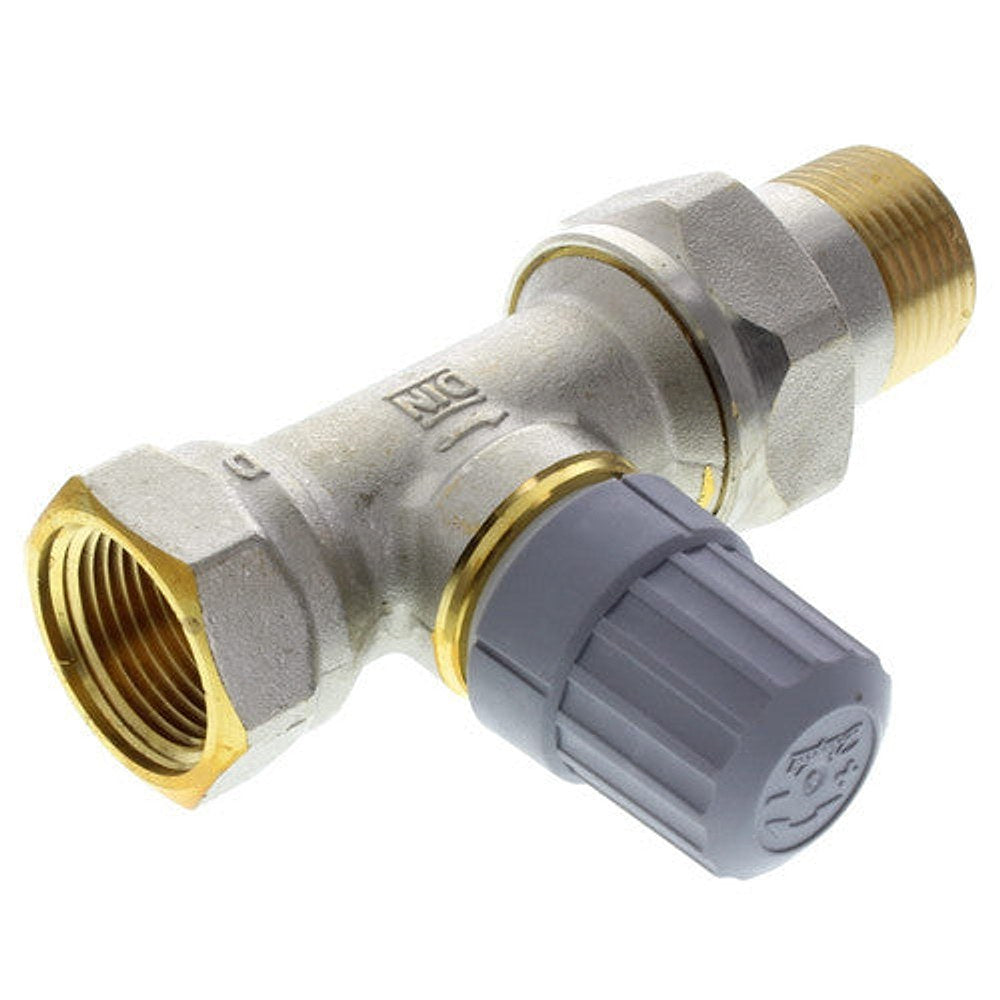

Danfoss 013G8020 Radiator Valve

Danfoss 013G8020 Radiator Valve is a thermostatic radiator valve designed to deliver precise temperature control for hot water heating systems. With a straight body configuration and 3/4 inch nominal size, this valve features end connections of female threaded x male threaded for versatile installation.

Constructed with nickel plated brass, a EPDM seat, and an ABS plastic handle, it combines durability with smooth operation. The valve offers a set temperature range from 45 to 86 Deg F and a temperature rating up to 250 Deg F, with a robust 145 PSI static and 15 PSI differential pressure rating to cover residential, commercial, and industrial needs. It includes a tail piece union and is suitable for 2-pipe low pressure steam as well as hot water systems. The flow coefficient is 2.7 for reliable flow control.

Designed for versatility across residential, commercial and industrial applications, this thermostatic valve ensures consistent room comfort and energy efficiency.

• Type: Thermostatic radiator valve
• Body: Nickel plated brass
• Seat: EPDM
• Handle: ABS plastic
• Nominal size: 3/4 Inch
• End connections: Female threaded x Male threaded
• Set temperature range: 45 to 86 Deg F
• Temperature rating: 250 Deg F
• Pressure rating: 145 PSI static, 15 PSI differential
• Inclusions: Tail Piece Union
• Applications: Hot water, 2-pipe low pressure steam; Residential, Commercial and Industrial
• Flow coefficient: 2.7
