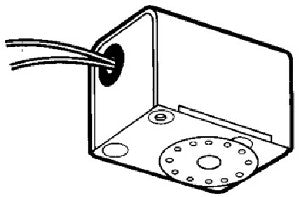

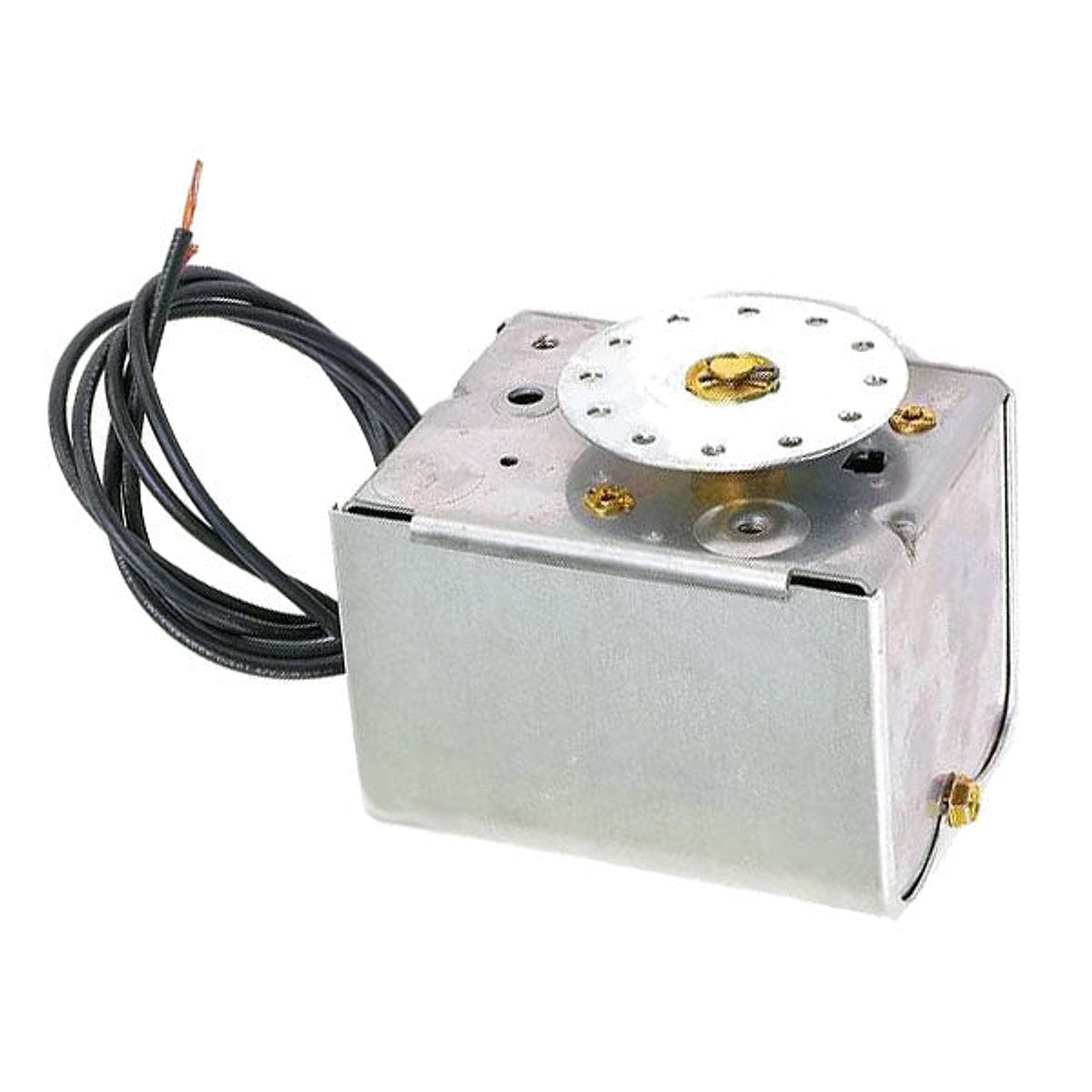

Erie Controls 0453L0038GA00 Damper Actuator

Damper Actuator from Erie Controls 0453L0038GA00 delivers reliable ON/OFF, 2-Position damper control. This SPST light-duty rotary actuator uses a linkage drive and spring return to ensure precise, fail-safe operation within a standard temperature range.

Designed for damper applications, this actuator runs on 24 Volt AC with a 50/60 Hz supply and a compact 6.5 W motor. It provides an 84 Degree rotation with clockwise rotation, and a torque range from 17 in-oz at 0° to 25 in-oz at 84°. The NEMA 1 enclosure protects it in standard environments, while a built-in spring-return enables dependable fail-safe positioning. The unit features an 18 inch wire lead supply connection and operates from 0 to 120 °F. UL E37601, CSA, and CE approvals confirm its suitability for commercial HVAC systems.

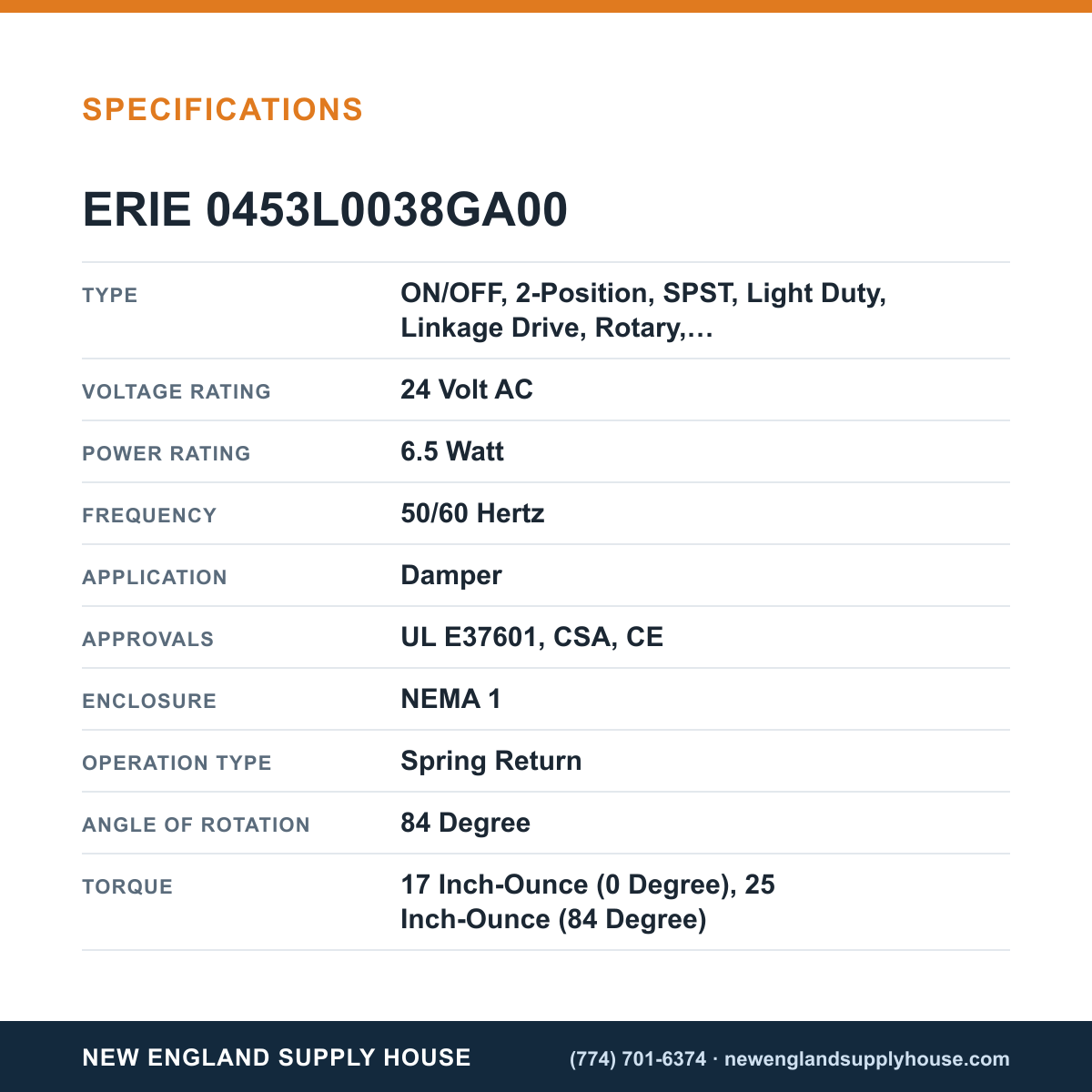

• Type: ON/OFF, 2-Position, SPST, Light Duty
• Electrical: 24V AC, 50/60 Hz, 6.5 W
• Mechanical: Rotary, Linkage Drive, 84° rotation, Clockwise
• Torque: 17 in-oz @ 0°, 25 in-oz @ 84°
• Enclosure: NEMA 1, Supply: 18 in. wire lead
• Operating: 0–120 °F, Spring Return
• Approvals: UL E37601, CSA, CE
