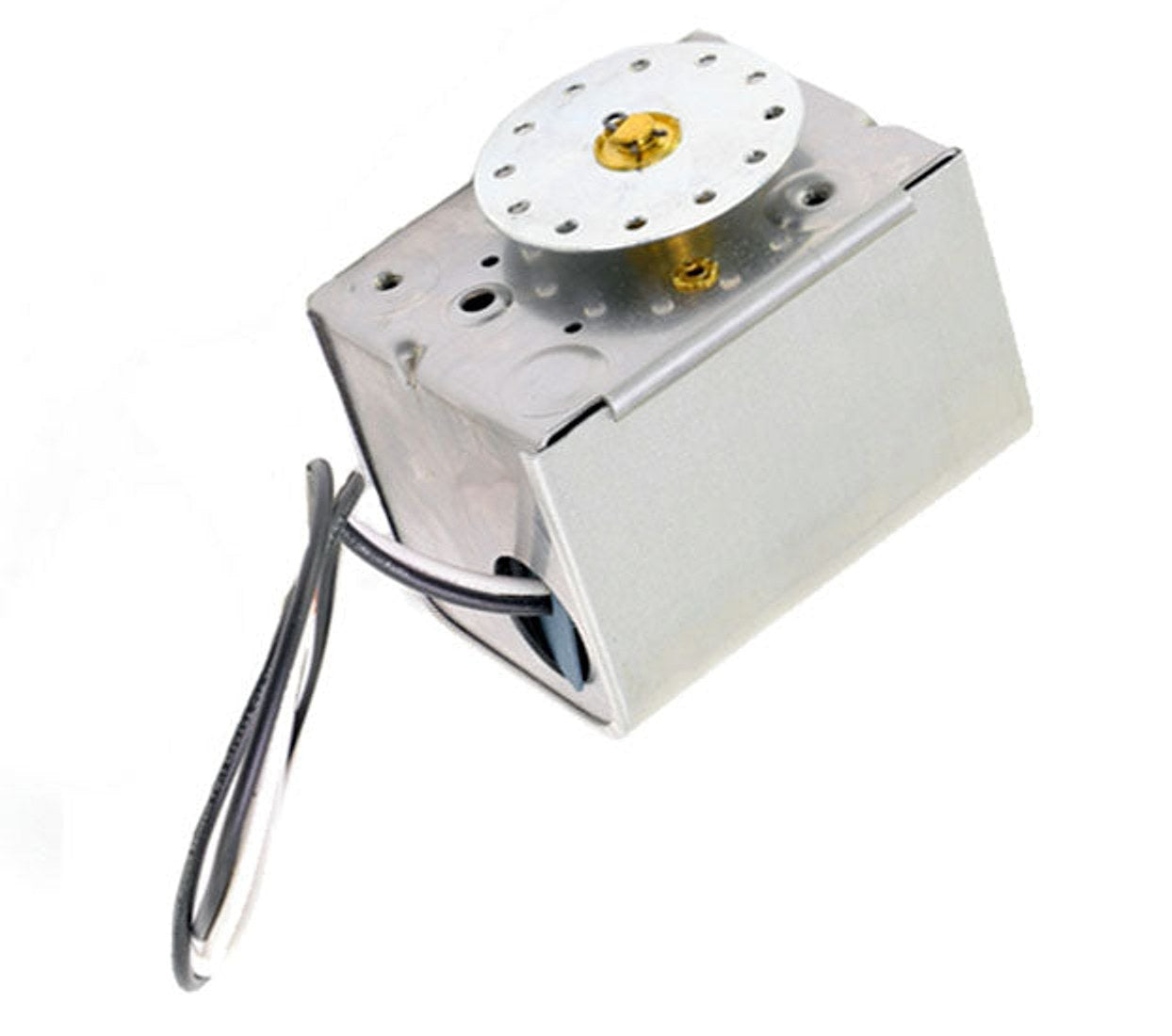

Erie Controls 0453L0038GB00 Damper Actuator

Damper Actuator Erie Controls 0453L0038GB00 delivers reliable ON/OFF, 2-Position control for HVAC dampers. This SPST, rotary actuator uses spring-return operation for fast, fail-safe damper positioning in light-duty applications.

Operating at 120 Volt AC with 50/60 Hz, it draws 6.5 Watts and provides torque across its travel. The actuator delivers 17 in-oz at 0°, and 25 in-oz at 84°, with an 84° rotation. The linkage drive and rotary design simplify mounting on standard dampers, and the spring-return action provides dependable fail-safe closure during power outages. The rugged NEMA 1 enclosure protects electronics, and an 18-inch wire lead simplifies field wiring. Operating temperature ranges from 0 to 120°F.

Approved for global use, UL E37601, CSA, and CE markings ensure compliance across markets. The unit uses a synchronous AC motor, rotates clockwise, and is optimized for standard temperature operation, making it easy to integrate with existing control systems.

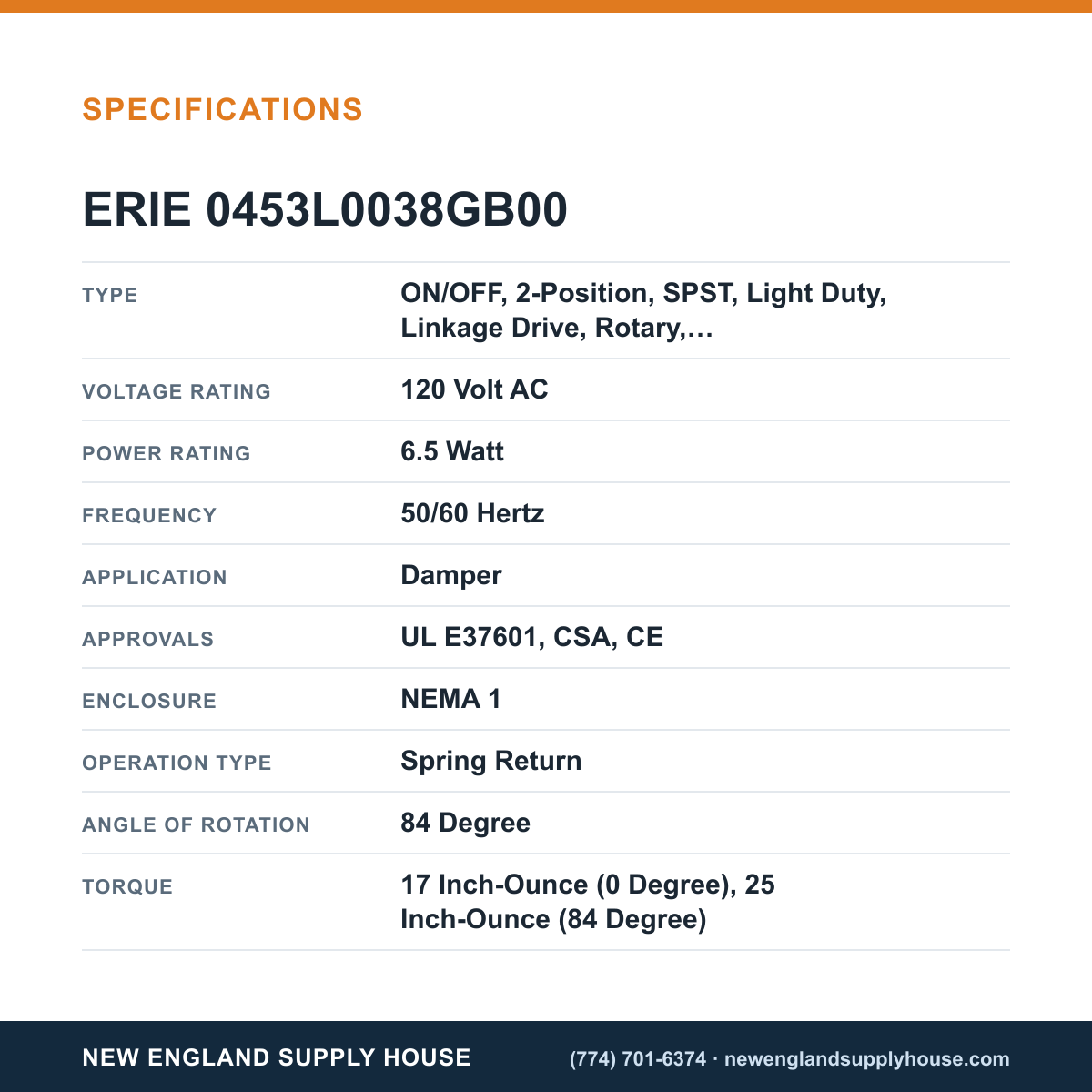

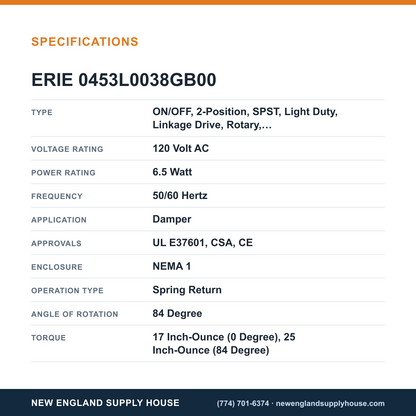

• Type: ON/OFF, 2-Position, SPST
• Operation: Spring Return
• Voltage & Frequency: 120 VAC, 50/60 Hz
• Power & Torque: 6.5 W; 17 in-oz @ 0°; 25 in-oz @ 84°
• Rotation & Enclosure: 84° rotation; NEMA 1 enclosure; clockwise rotation
• Connections: 18 inch wire lead
• Standards: UL E37601, CSA, CE
