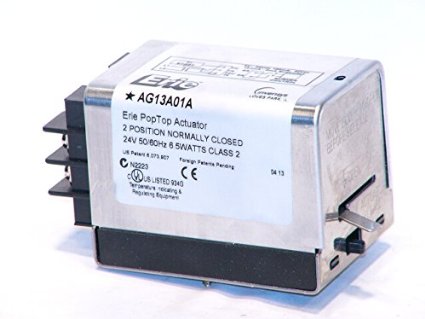

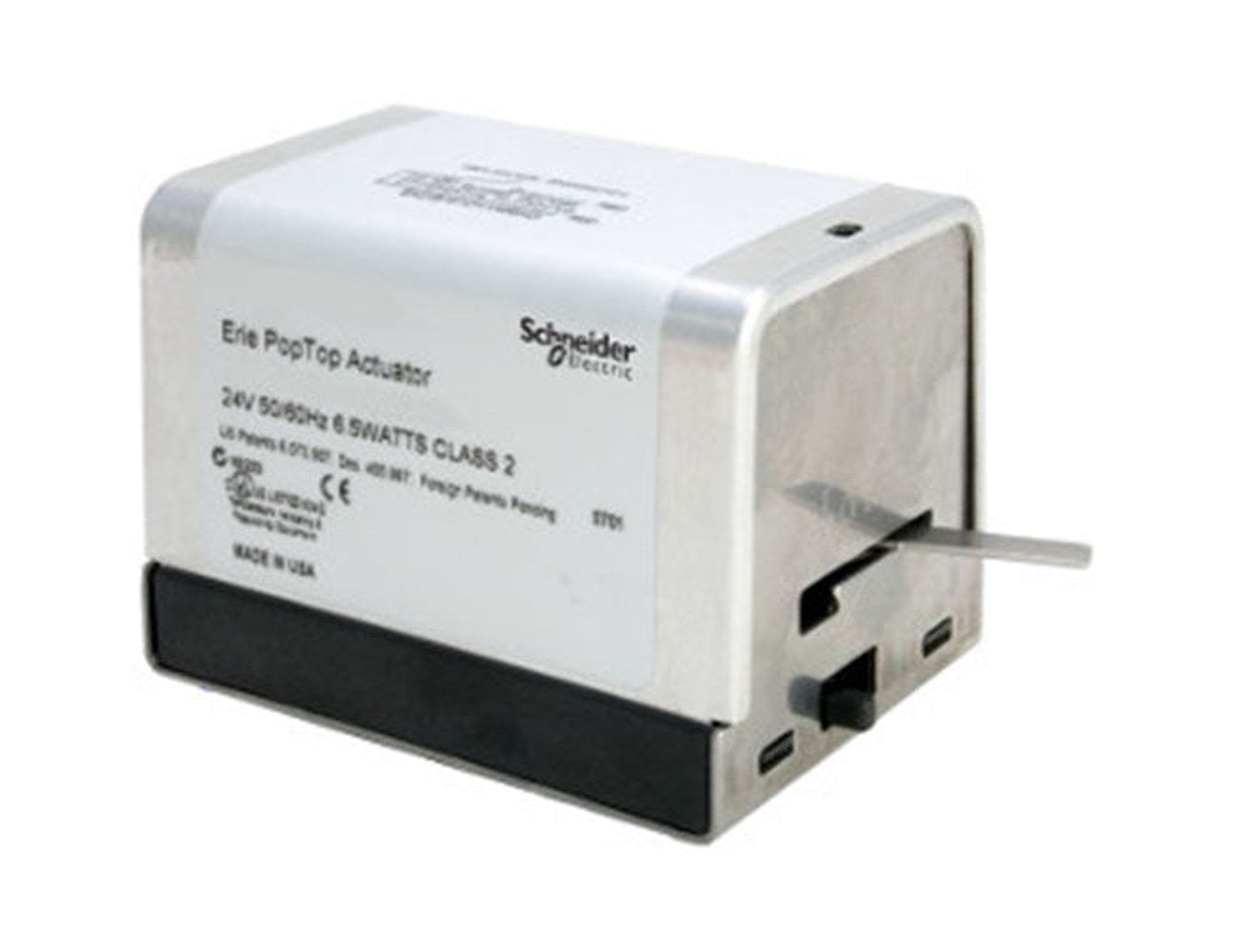

Erie Controls AG13A01A Valve Actuator

The Valve Actuator AG13A01A from Erie Controls delivers reliable ON/OFF control for HVAC valve actuators and zone valve applications. This 24V AC spring-return actuator features a 2-position rotary design for precise operation in heating and cooling systems.

Engineered for durability, it features a stainless steel base plate and aluminum cover, enclosed to NEMA 1 standards. The unit runs on 24V AC with a 50/60 Hz supply, drawing only 6.5 watts, and is designed for operating temperatures from 32 to 200 Deg F in heating/cooling systems. Its hysteresis synchronous motor delivers dependable motion with NC electrical position, and the terminal block provides clean wiring. An SPDT auxiliary switch adds signaling options for control schemes.

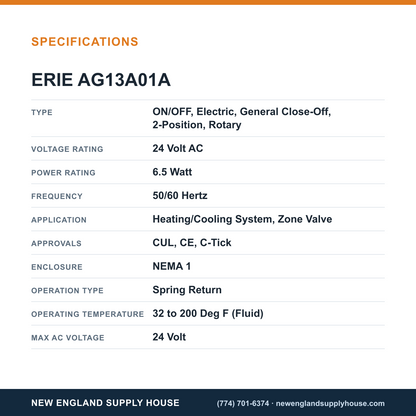

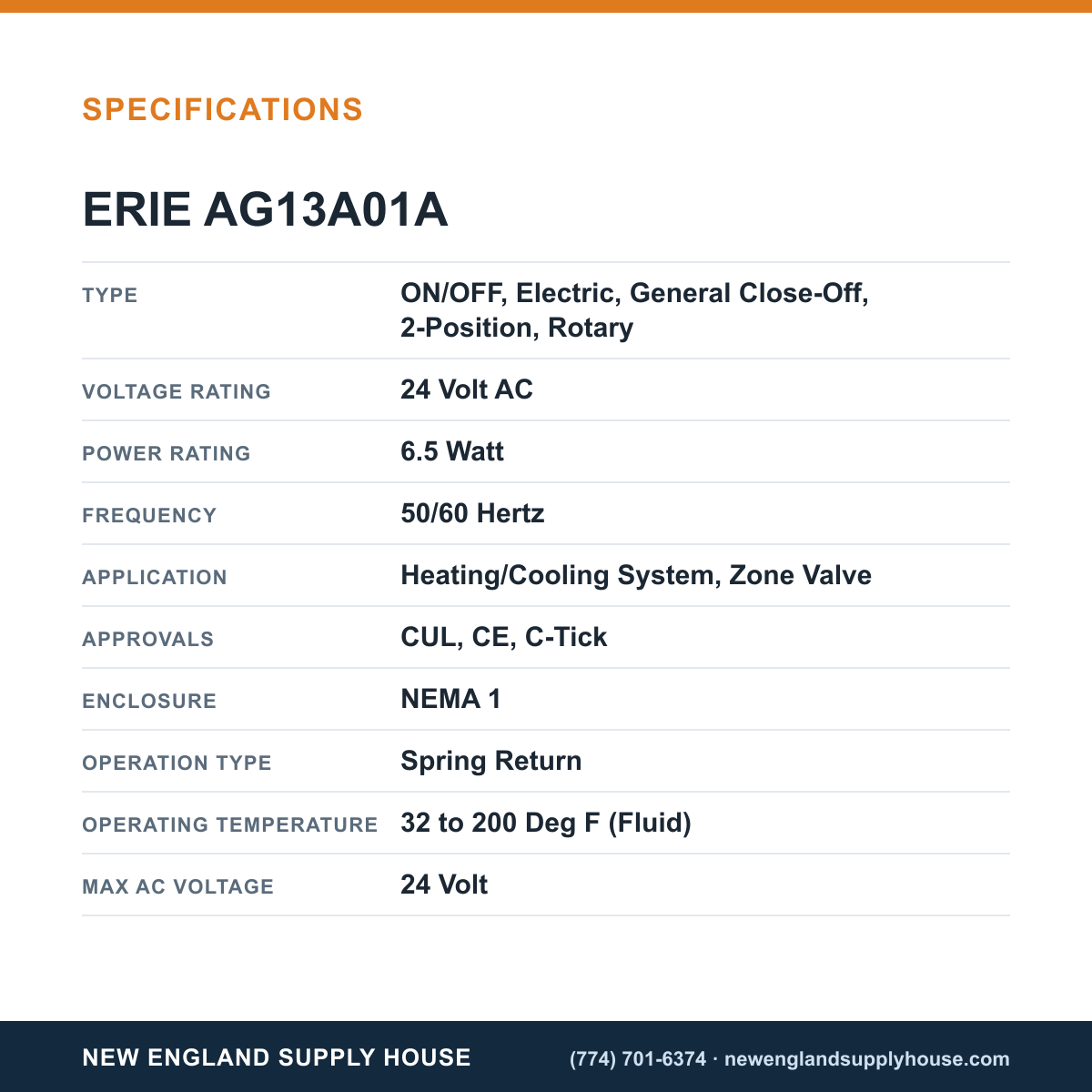

• Type: ON/OFF, 2-Position, Rotary; Spring Return
• Voltage: 24V AC; Frequency: 50/60 Hz; Power: 6.5 W
• Enclosure: NEMA 1; Materials: Stainless Steel (Base Plate), Aluminum (Cover)
• Applications: Heating/Cooling System, Zone Valve
• Electrical Position: NC; Connection: Terminal Block
• Includes: SPDT Auxiliary Switch
• Approvals: CUL, CE, C-Tick
• Operating Temperature: 32 to 200 Deg F (Fluid)
