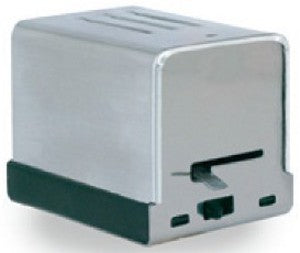

Erie Controls AG13B02A Valve Actuator

The Erie Controls AG13B02A Valve Actuator is an electric ON/OFF device designed for reliable general close-off and 2-position control. With spring-return operation and a 120 V AC supply, it provides precise, fail-safe control for heating and cooling systems and zone valves.

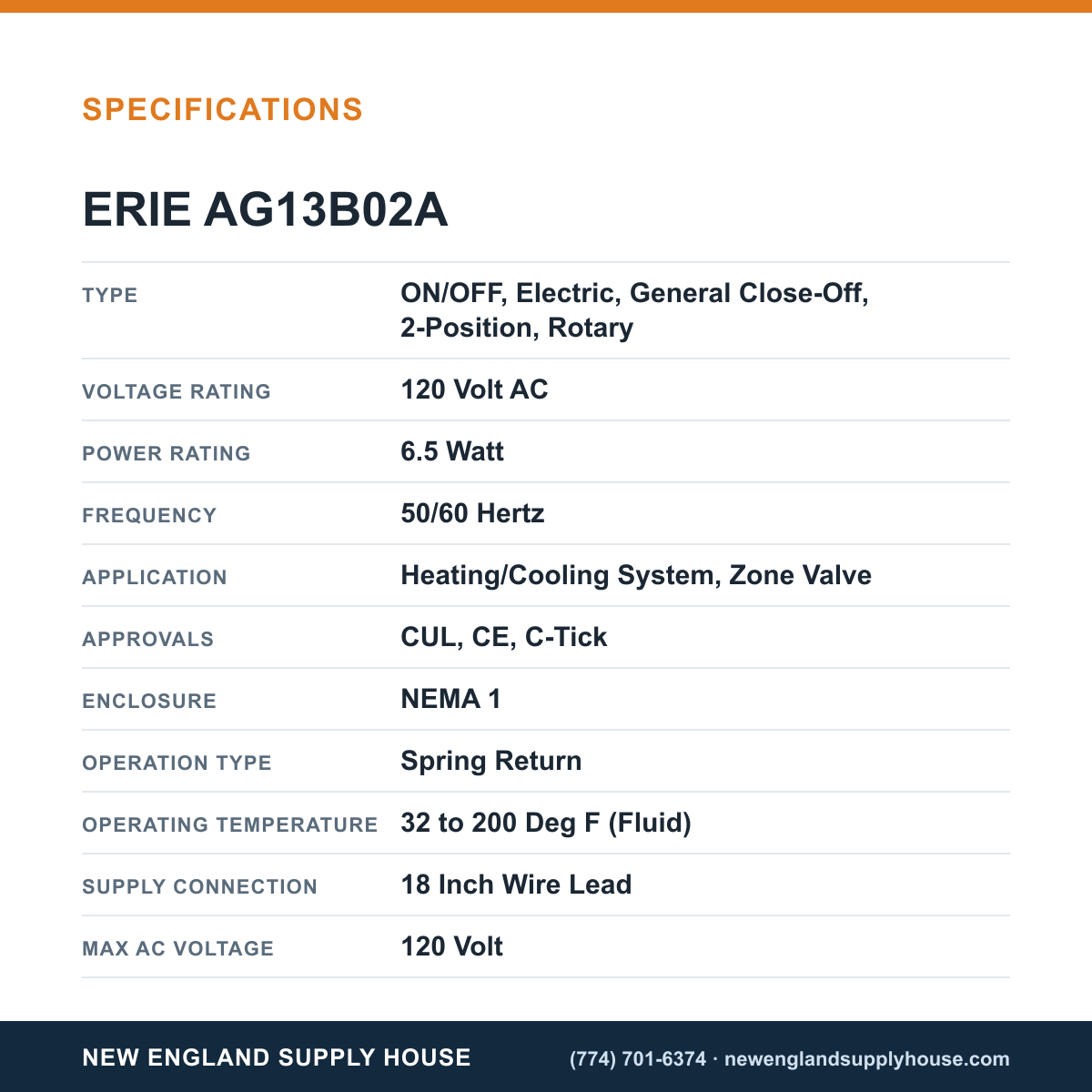

Key specifications include 50/60 Hz frequency, a 6.5 W power rating, and a rugged NEMA 1 enclosure. The unit uses an 18 inch wire lead for easy wiring, operates across a fluid temperature range of 32 to 200 deg F, and is compatible with standard 120 VAC control circuits. The motor is a hysteresis synchronous type, and an SPDT auxiliary switch is included for signaling or interlock applications. Construction features stainless steel base plate and aluminum cover for durability in demanding environments. It carries approvals from CUL, CE, and C-Tick for global acceptance.

• Type: ON/OFF, 2-position, spring-return
• Electrical: 120 VAC, 50/60 Hz, 6.5 W
• Enclosure: NEMA 1 with stainless steel base plate and aluminum cover
• Connections: 18" wire lead; SPDT auxiliary switch included
• Applications: Heating/cooling systems and zone valves
