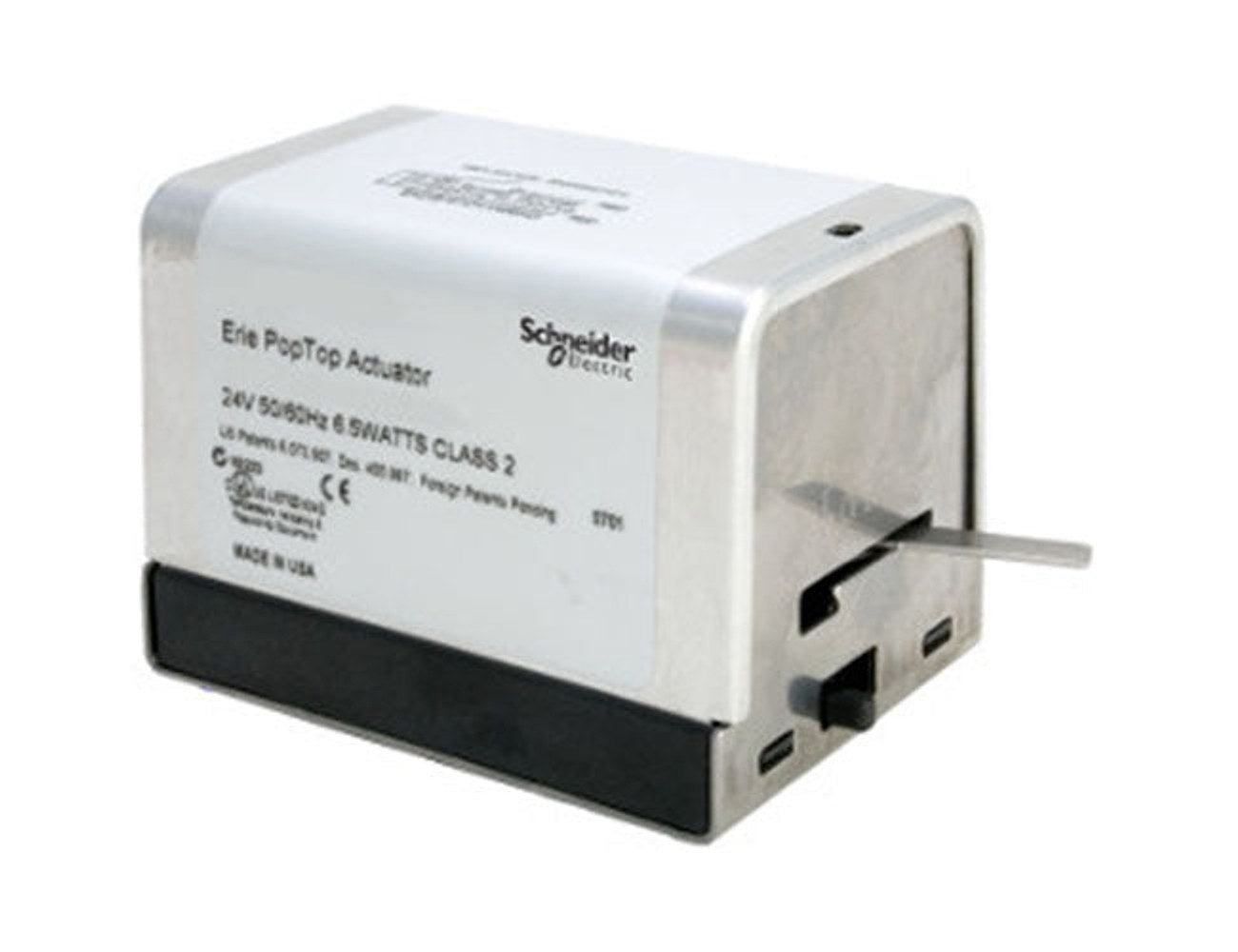

Erie Controls AG23A02A Valve Actuator

Erie Controls AG23A02A Valve Actuator is an ON/OFF, electric, general close-off, 2-position rotary actuator with spring-return operation. This 24 Volt AC device is ideal for heating and cooling systems and zone valves, delivering reliable two-position control with fast response and rugged construction. A hysteresis synchronous motor drives the action, while the SPDT auxiliary switch adds sensing and signaling for enhanced HVAC control. Built for durability, the actuator features a stainless steel base plate and aluminum cover in a NEMA 1 enclosure, ensuring dependable performance in typical facility environments. Electrical specs include 24 V AC supply, 50/60 Hz, and a compact 6.5 W power draw, with an 18-inch wire lead for easy wiring.

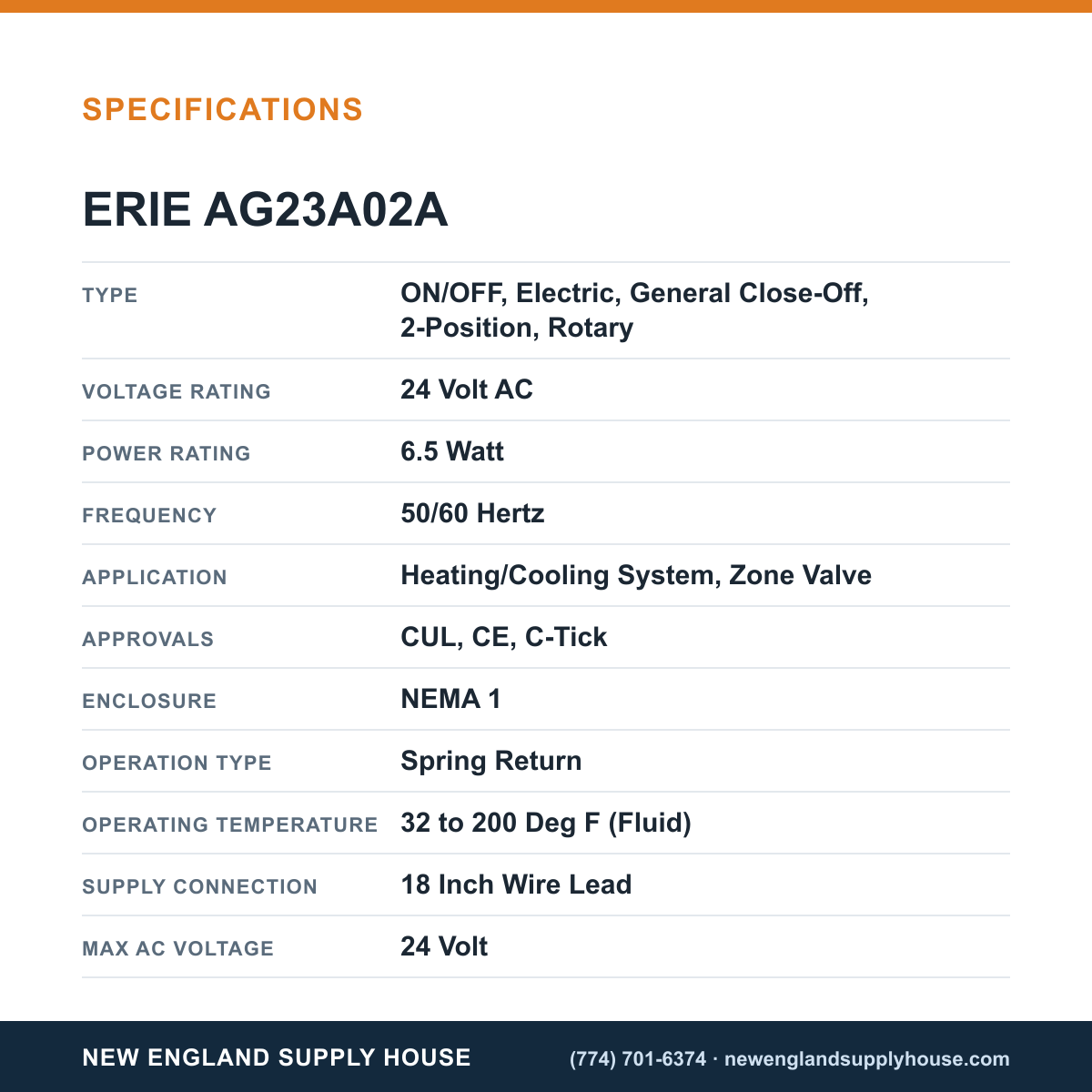

• Voltage: 24 VAC, 50/60 Hz, 6.5 W
• Operation: ON/OFF, 2-position with spring return
• Enclosure: NEMA 1; stainless steel base plate, aluminum cover
• Electrical position: NO; SPDT auxiliary switch
• Lead: 18 inch wire lead
• Motor: Hysteresis Synchronous
• Applications: Heating/Cooling system, zone valve control
• Approvals: CUL, CE, C-Tick
