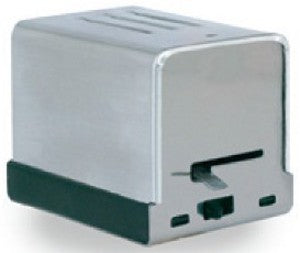

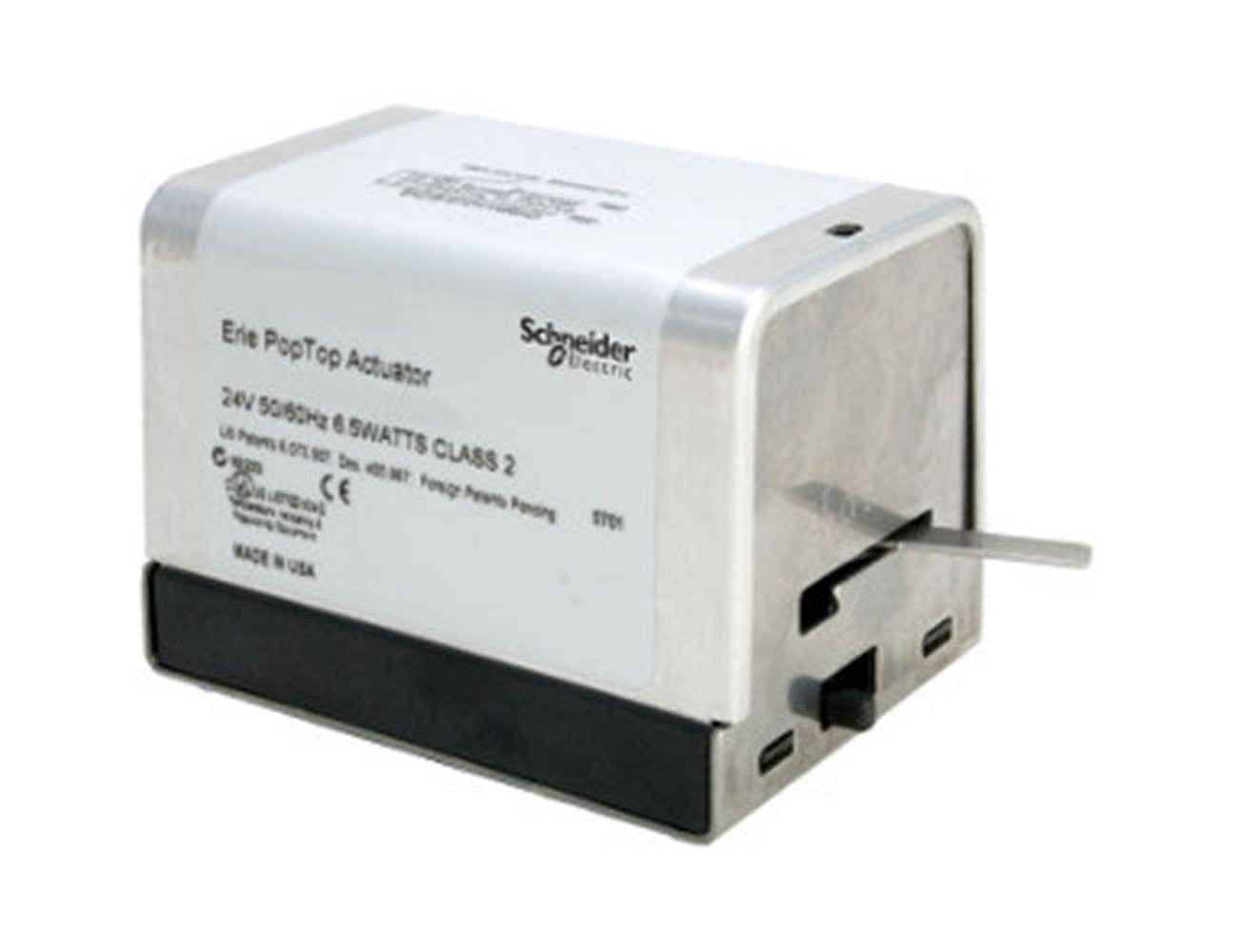

Erie Controls AG24A020 Valve Actuator

Erie Controls AG24A020 Valve Actuator delivers reliable ON/OFF control for heating and cooling systems. The AG24A020 is a 24V AC, two-position rotary actuator designed for general close-off and zone valve applications.

With spring-return operation, it automatically returns to the closed position when power is removed, providing fail-safe performance in critical HVAC tasks. This compact actuator draws only 6.5 watts and operates at 50/60 Hz.

Built for indoor environments, it features a NEMA 1 enclosure, an 18 inch wire lead, and a rugged construction using stainless steel base plate and an aluminum cover. The actuator is designed for 32 to 250 degrees Fahrenheit (fluid) and is ideal for control of heating and cooling zones.

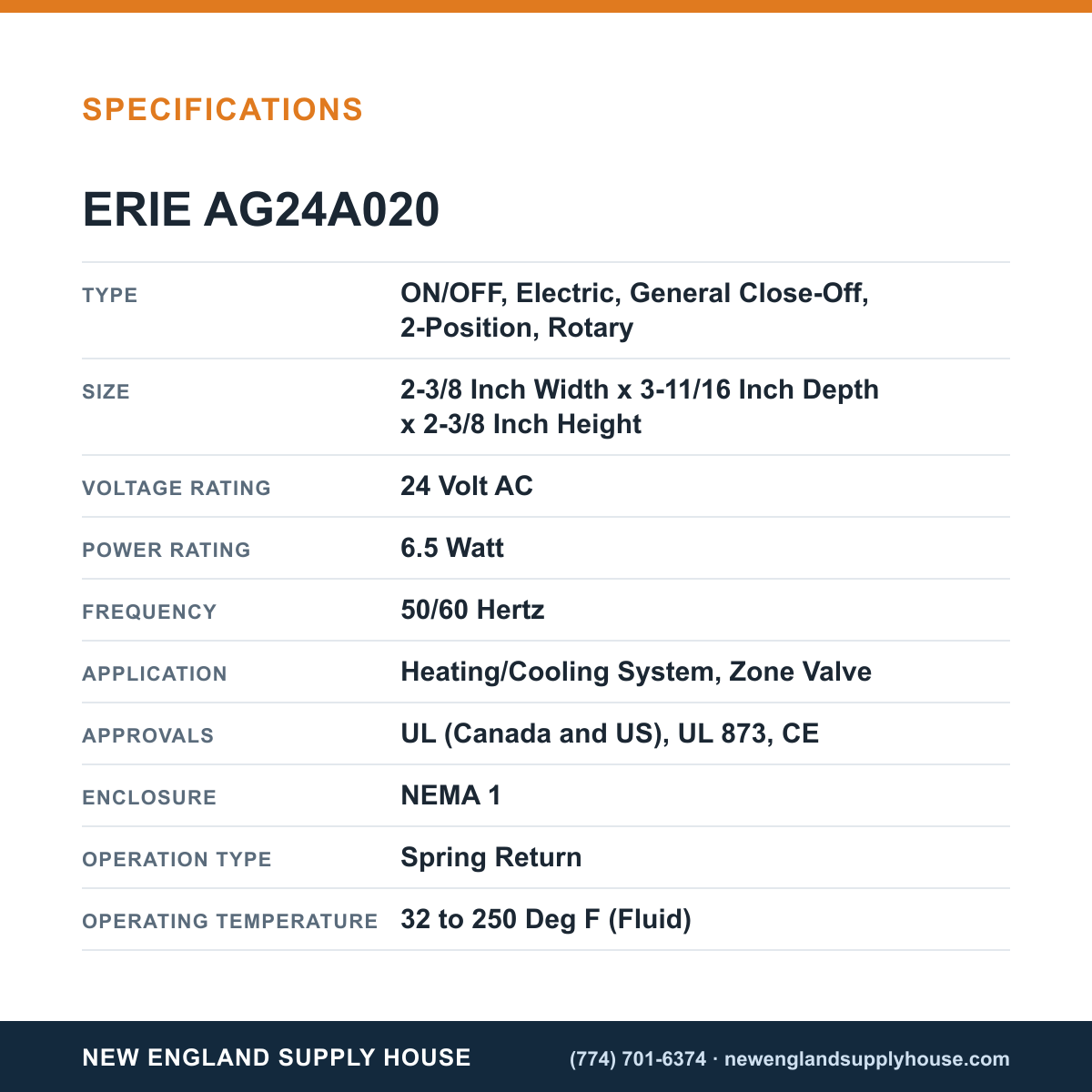

• Type: ON/OFF, Electric, General Close-Off, 2-Position, Rotary
• Operation: Spring Return
• Voltage: 24 Volt AC; Frequency: 50/60 Hz
• Power: 6.5 W
• Enclosure: NEMA 1
• Connections: 18 Inch Wire Lead
• Temperature Range: 32–250°F (fluid)
• Applications: Heating/Cooling System, Zone Valve
• Approvals: UL (Canada and US), UL 873, CE
• Motor & Materials: Hysteresis Synchronous motor; Stainless Steel base plate, Aluminum cover
