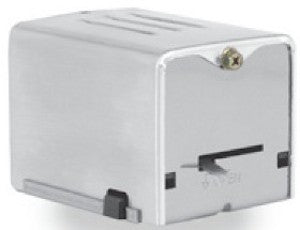

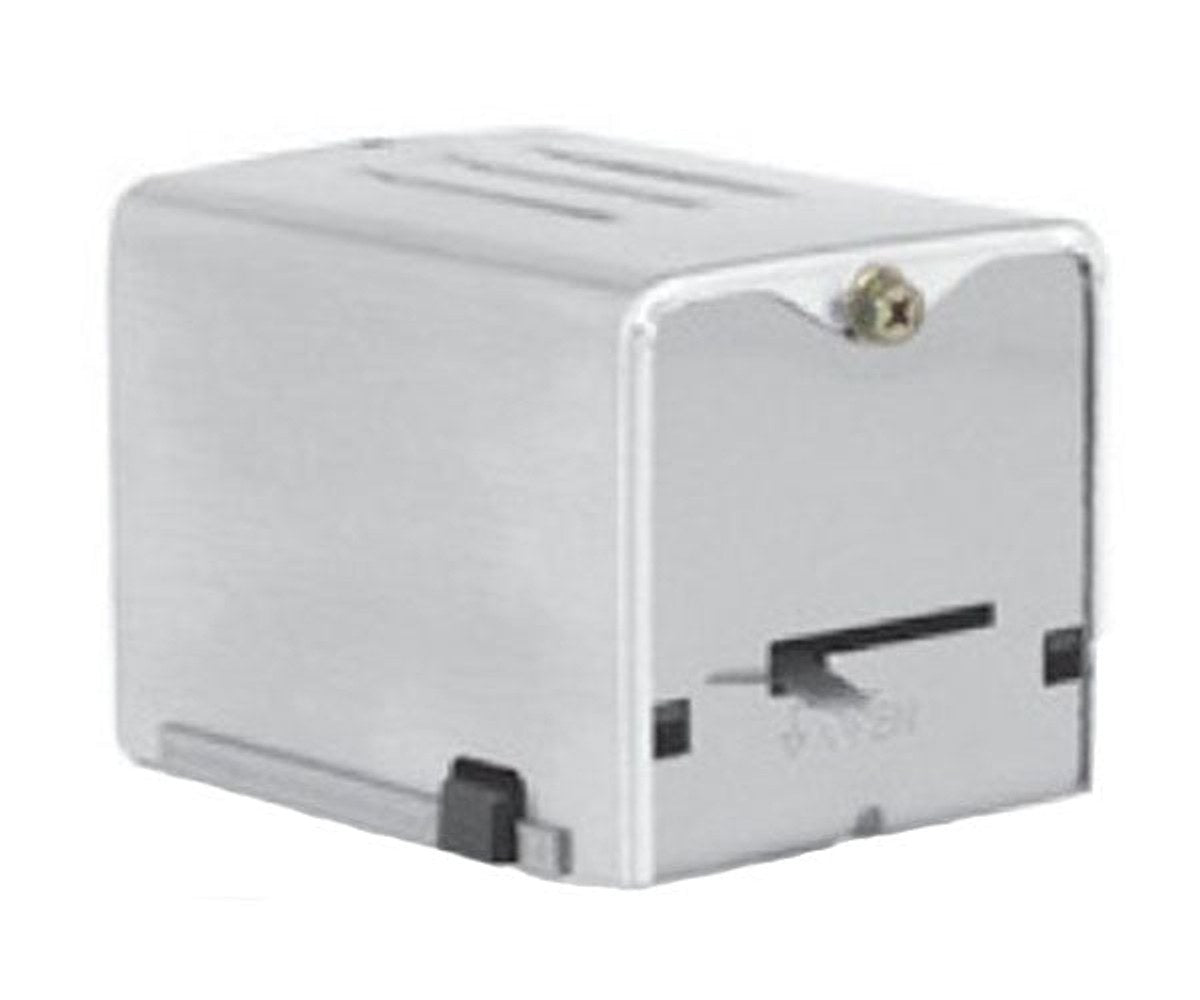

Erie Controls AH13A02A Valve Actuator

Valve Actuator AH13A02A from Erie Controls delivers reliable ON/OFF control for heating and cooling systems. This electric, high close-off, 2-position rotary actuator features spring-return operation for simple, fail-safe performance in zone valve applications. Designed for 24 Volt AC supply, it runs at 50/60 Hz with a modest 6.5 W power rating, and it fits a NEMA 1 enclosure for basic indoor protection. The unit uses a hysteresis synchronous motor, has an electrical position NC, and includes an SPDT auxiliary switch for added control options. Built with a stainless steel base plate and an aluminum cover, it withstands typical facility environments while maintaining dependable operation from 32 to 200 degrees Fahrenheit.

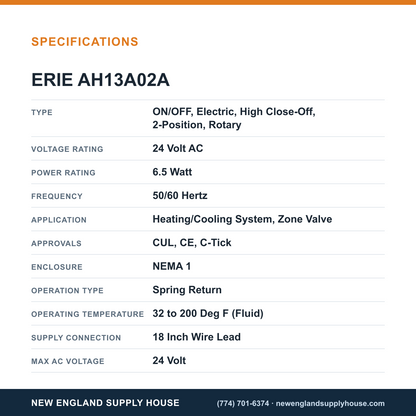

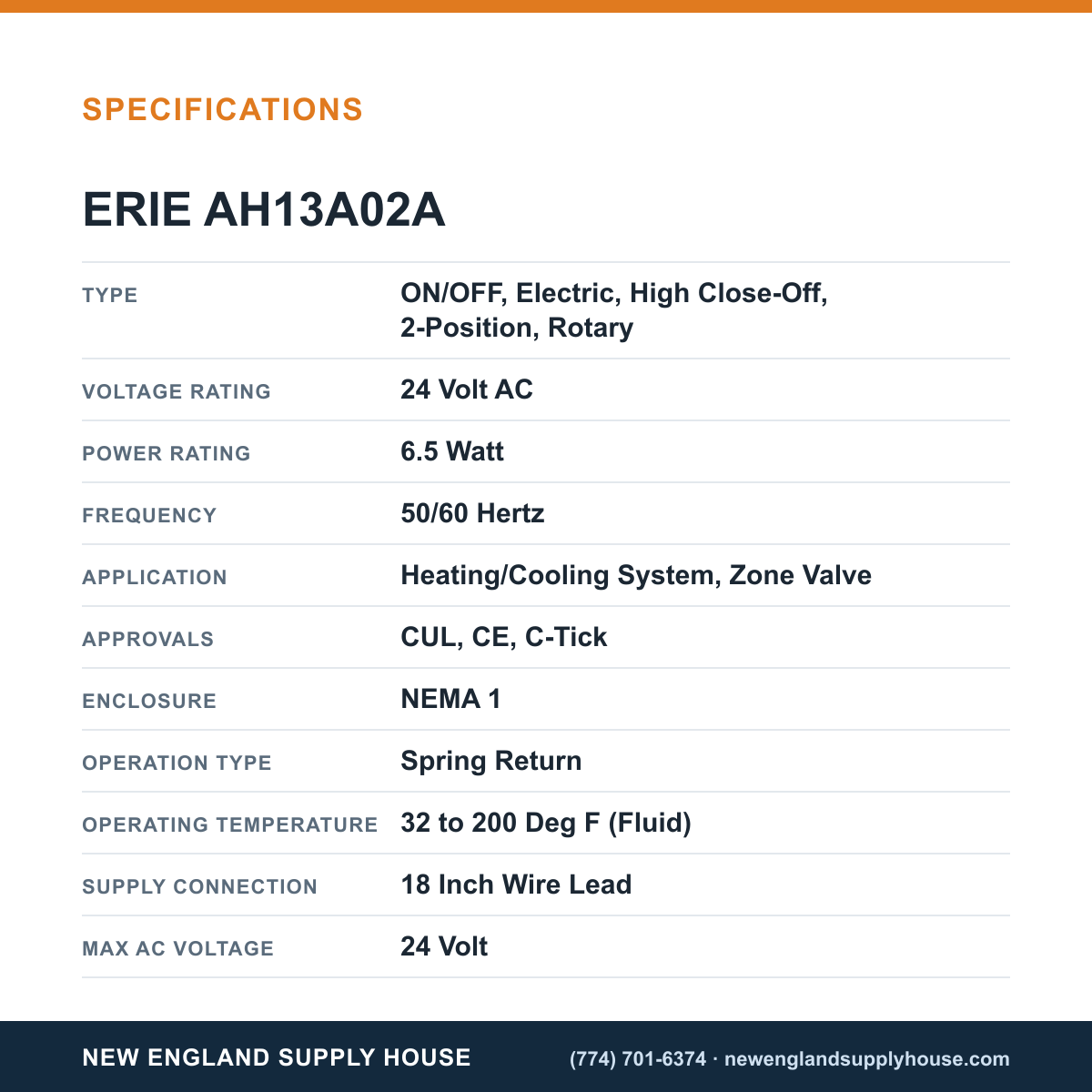

• Voltage: 24 VAC • Frequency: 50/60 Hz • Power: 6.5 W
• Enclosure: NEMA 1 • Connection: 18" wire lead
• Operation: Spring-return, 2-position, ON/OFF rotary
• Motor: Hysteresis synchronous • Electrical position: NC
• Features: SPDT auxiliary switch • Zone valve application • Approvals: CUL, CE, C-Tick
