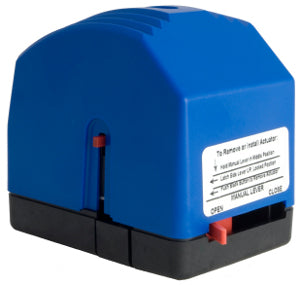

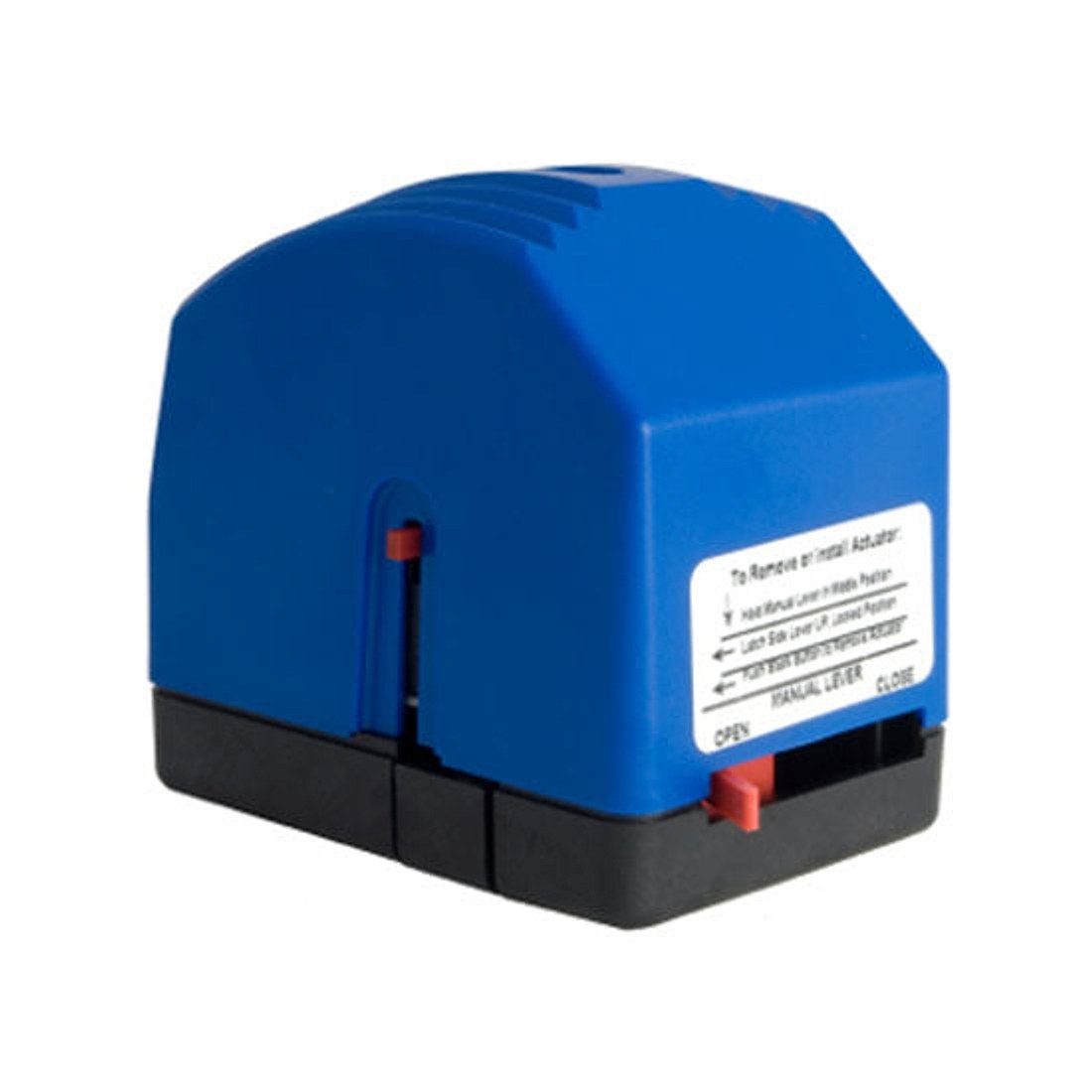

Erie Controls AP13A000 Valve Actuator

AP13A000 Valve Actuator by Erie Controls delivers precise electric modulating control for heating and cooling systems. This proportional rotary actuator uses direct acting, spring-return operation and is designed for reliable 24V AC service with a 50/60 Hz supply. The AP13A000 provides smooth modulation for VM Zone Valves and similar HVAC applications, combining compact plastic construction with rugged NEMA 1 protection.

Key performance and compliance features ensure compatibility with modern control loops and safety standards, including UL 873, CUL, CE, and C-tick approvals. It includes a synchronous motor and an electrical position NC output for accurate feedback and repeatable control. The actuator accepts multiple control signals for flexibility in integration with existing controls.

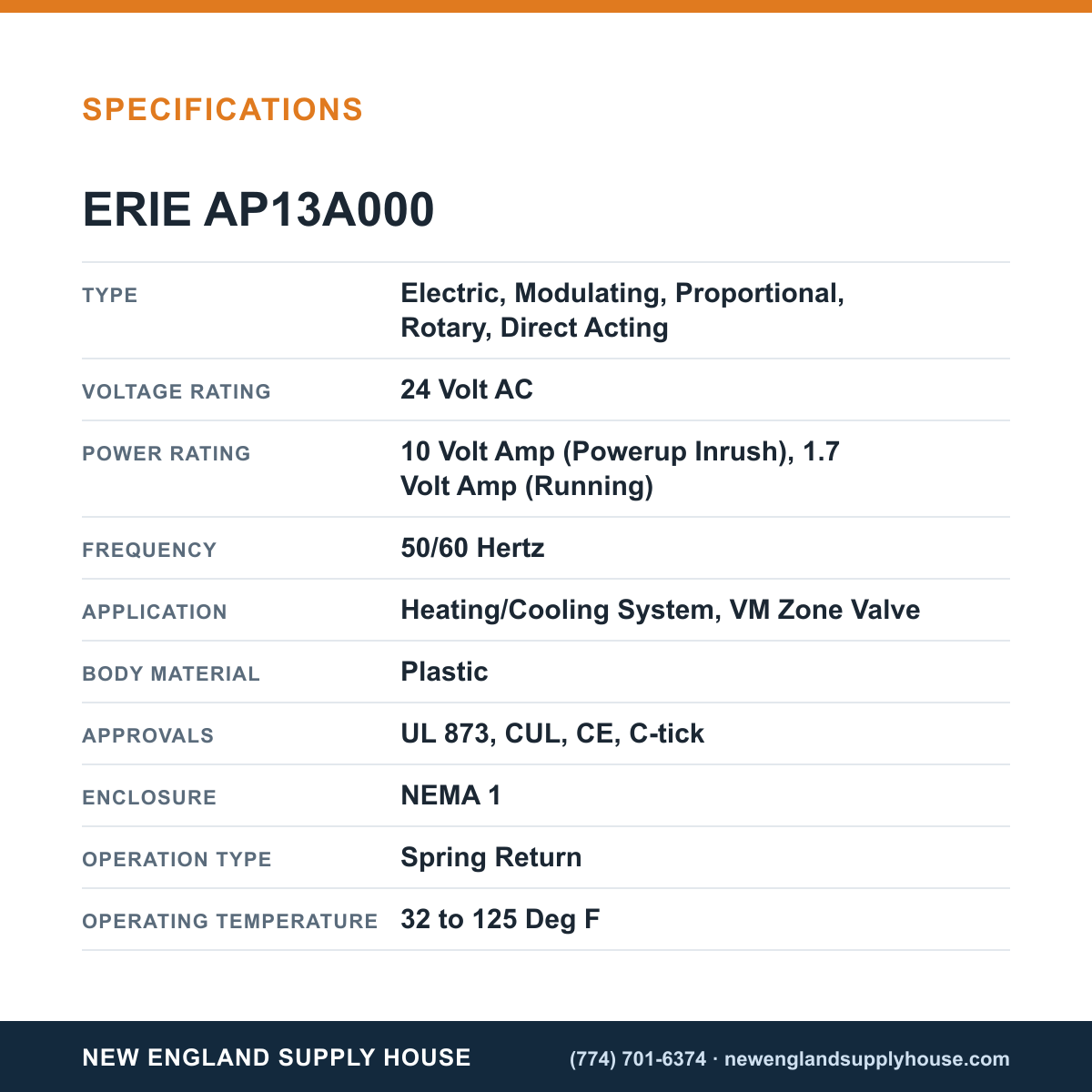

• Electric modulating, proportional rotary actuator
• Spring-return operation for fail-safe positioning
• Power: 24V AC, 50/60 Hz
• Power rating: 10 VA (inrush), 1.7 VA (running)
• NEMA 1 enclosure; plastic body
• Operating temperature: 32–125°F
• Applications: Heating/Cooling systems, VM Zone Valve
• Control signals: 0–10V DC, 0–5V DC, 4–20 mA DC, 5–10V DC
• UL 873, CUL, CE, C-tick approvals
• Synchronous motor; electrical position NC
