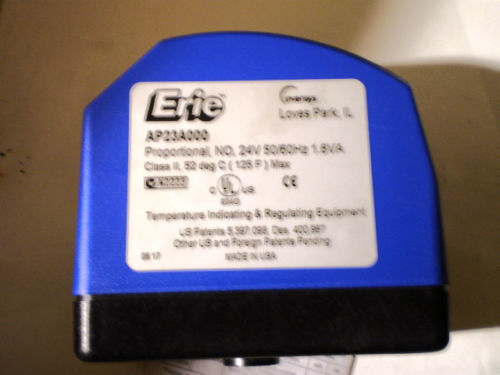

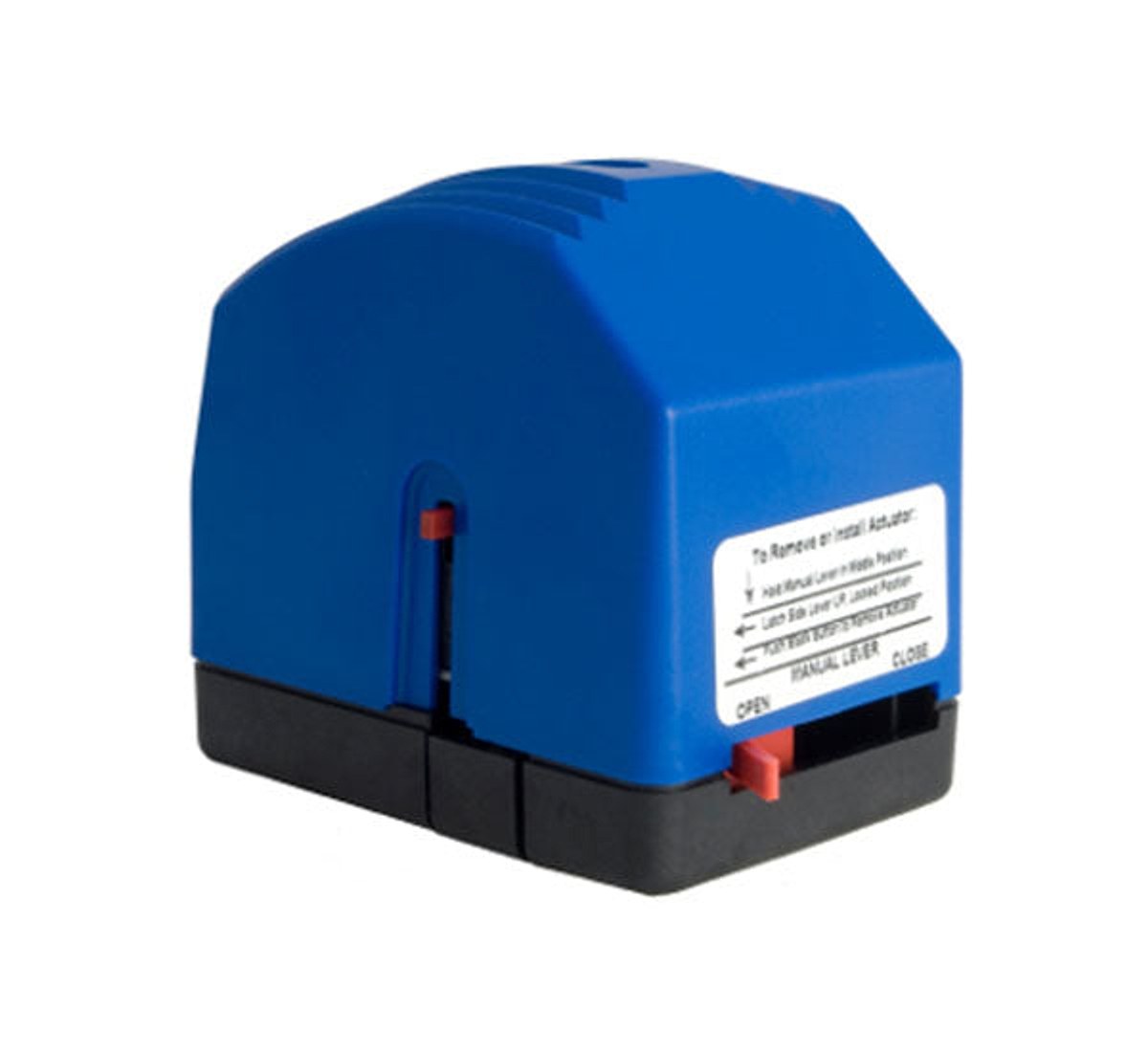

Erie Controls AP23A000 Valve Actuator

AP23A000 Valve Actuator from Erie Controls delivers precise, reliable valve control for heating and cooling systems. This electric, modulating, proportional rotary actuator provides direct-acting motion with spring return, powered by 24V AC. Designed for VM Zone Valve applications, it pairs a compact plastic body with a NEMA 1 enclosure for dependable indoor use. UL 873, CUL, CE, and C-tick approvals ensure safe, easy installation.

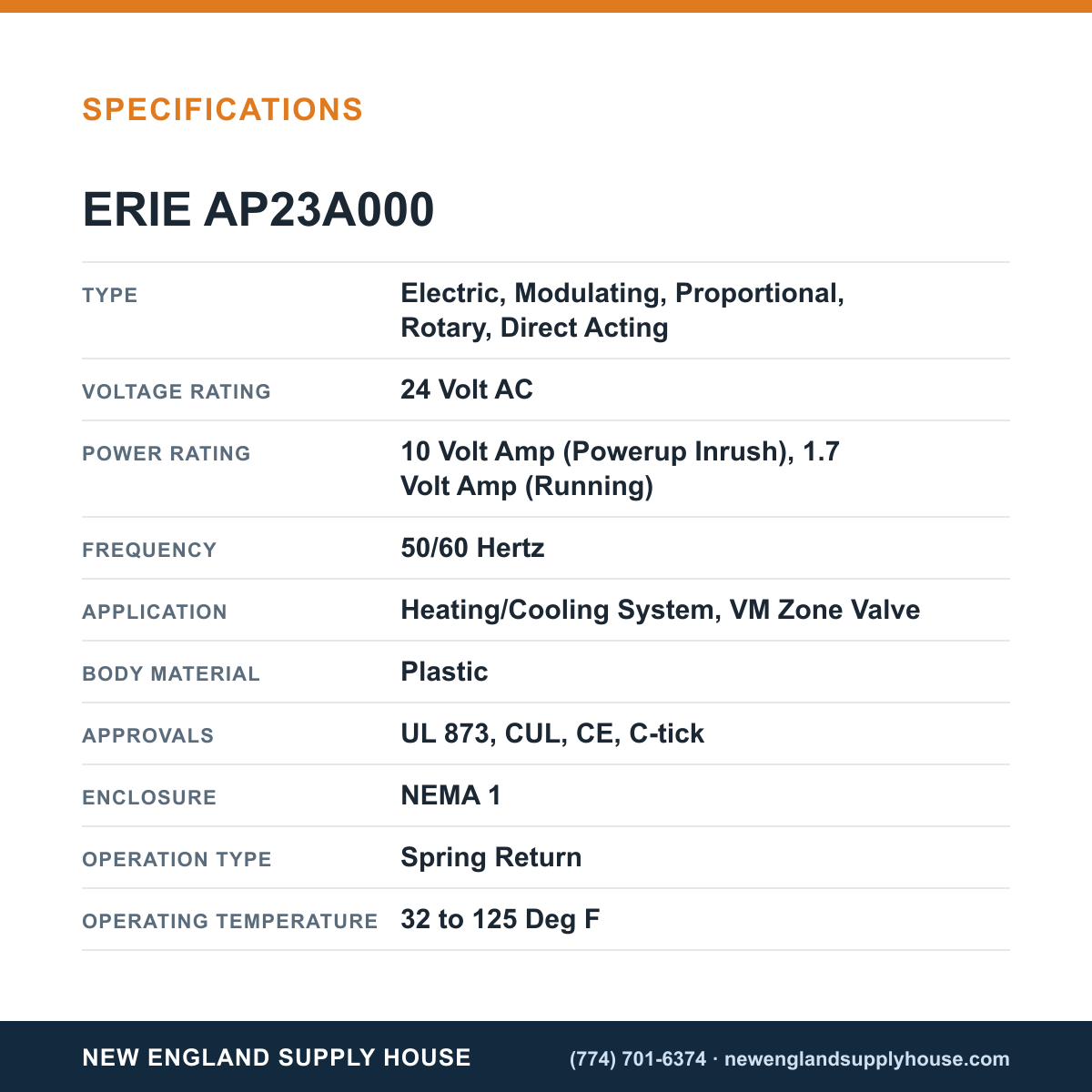

Key features

• Modulating, proportional rotary actuator with direct-acting motion
• Spring return operation for fail-safe valve positioning
• 24 VAC, 50/60 Hz power; inrush 10 VA, running 1.7 VA
• NEMA 1 enclosure and plastic body; operating temperature 32–125°F
• Synchronous motor; electrical position NO
• Multiple control signals: 0–10 VDC, 0–5 VDC, 4–20 mA, 5–10 VDC
• Ideal for Heating/Cooling systems and VM Zone Valve applications
• UL 873, CUL, CE, and C-tick approvals
