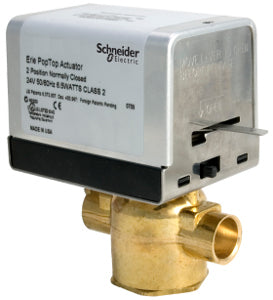

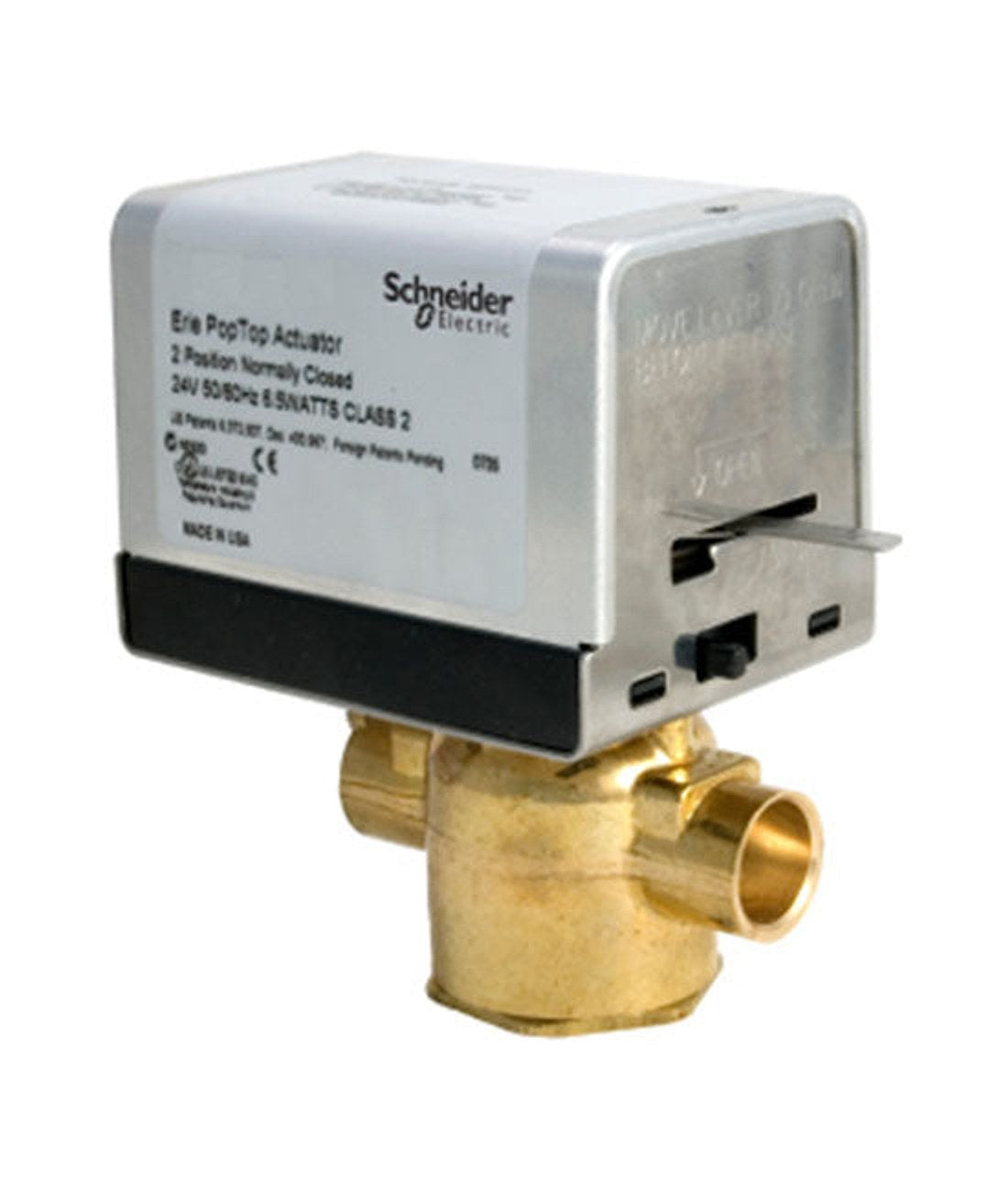

Erie Controls VT2211G13A020 Zone Valve Body Assembly

The Zone Valve Body Assembly VT2211G13A020 delivers precise control for heating and cooling systems. This 2-Way valve uses a normally closed configuration with a 2-position, spring-return actuator for reliable, fail-safe operation.

Designed for robustness, the valve features a 1/2 inch nominal size with soldered x soldered end connections and a forged brass body for long life. It operates on 24 Volt AC (50/60 Hz) with a quick 25-second full-open to full-close timing at 60 Hz (or 30 seconds at 50 Hz). The nickel-plated brass stem and brass seat with Buna N paddle ensure smooth cycling, while the hysteresis synchronous motor delivers durability. Suitable for hot/chilled water and glycol, it supports ambient temperatures up to 104°F and non-condensing humidity from 5 to 95%.

Key specs include ANSI Class IV close-off, Cv 1, and a wide operating range (32–200°F, up to 300 psi static, 60 psi close-off). A manual override lever provides immediate control, and the 18 inch lead keeps installation simple. Ideal for heating and cooling applications requiring reliable, reversible control.

• 2-Way zone valve body with normally closed configuration
• Nominal size 1/2 inch; soldered end connections
• 2-position, spring-return actuator; fail-safe
• Forged brass body; nickel-plated brass stem; Buna N paddle
• Media: hot/chilled water and glycol; 24V AC operation
• ANSI Class IV close-off; Cv 1; 60 psi close-off / 300 psi static
• Manual override lever; 18-inch electrical lead
• Hysteresis synchronous motor for long life
