Erie Controls VT2342G13A02A Zone Valve Body Assembly

Erie Controls VT2342G13A02A Zone Valve Body Assembly

$112.87 USD
$112.87 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 2 left

42443

View full details

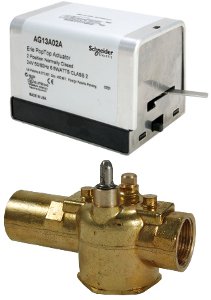

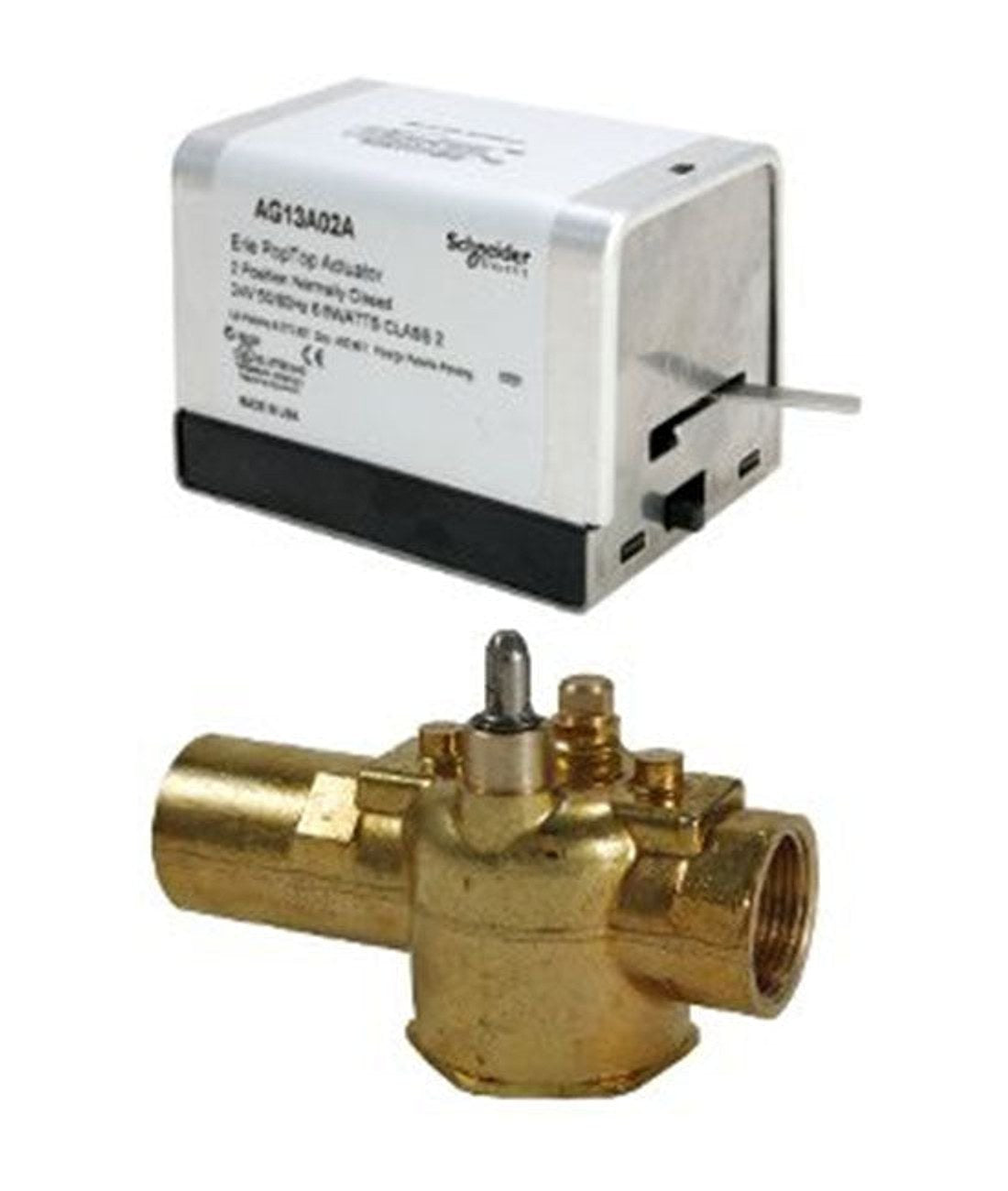

The Erie Controls VT2342G13A02A Zone Valve Body Assembly is designed for precise hydronic control with a 24V coil and a 3/4" inverted flare connection. This 2-way, normally closed (NC) valve delivers smooth operation and dependable performance across heating and cooling systems.

With a 2.5 CV flow rating and an integrated end switch, it wires quickly to modern thermostats, controllers, and boiler interlocks. Built to replace the 0767B, this valve keeps retrofit projects simple and system-compatible while maintaining robust sealing and long service life.

  • 24V coil compatible with standard HVAC controls
  • 3/4" inverted flare ports for easy installation
  • 2-way zone valve NC configuration for reliable shut-off
  • 2.5 CV flow for strong system circulation
  • End switch included for automatic control signals
  • Replaces 0767B for retrofit-friendly upgrades

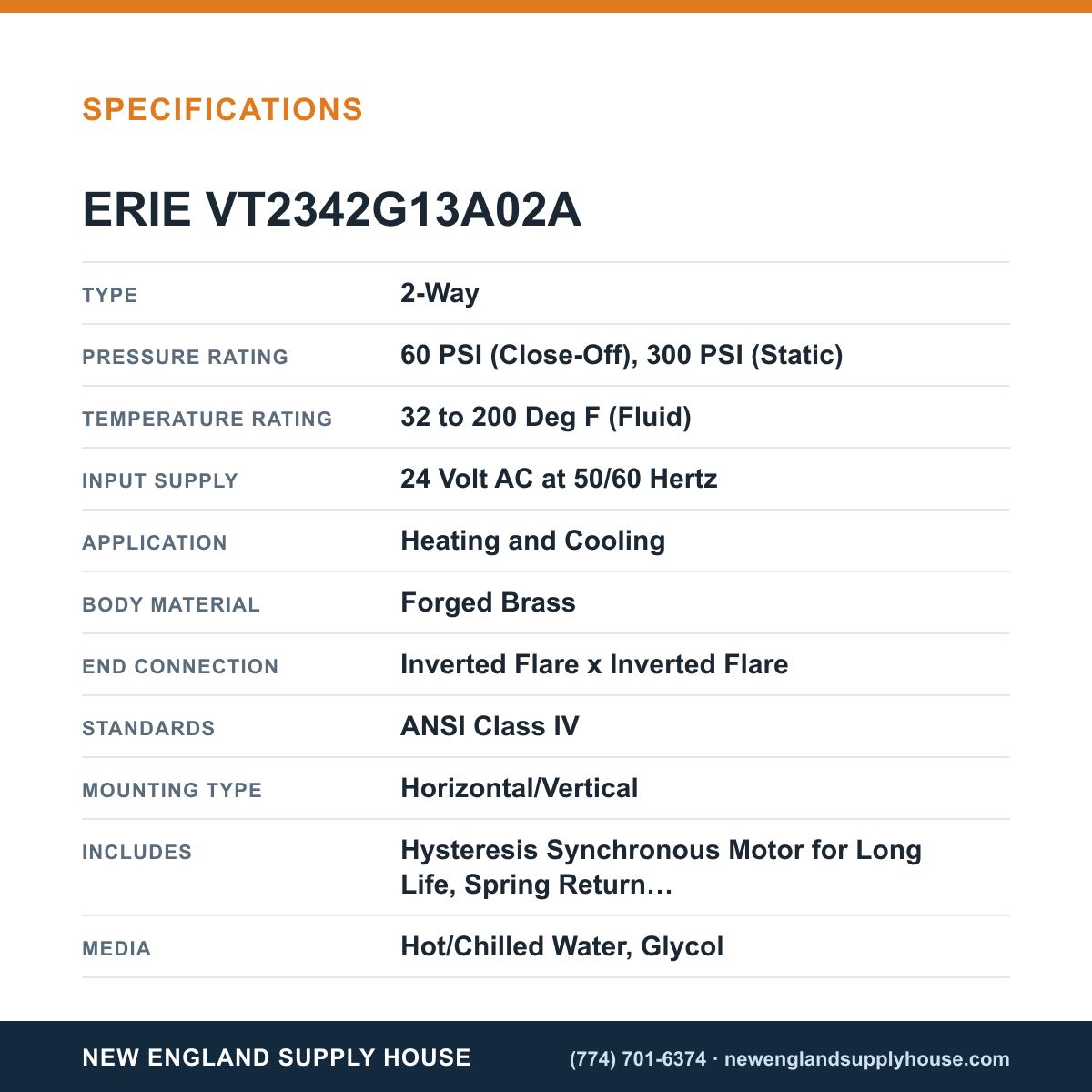

Specifications

Type2-Way
Pressure Rating60 PSI (Close-Off), 300 PSI (Static)
Temperature Rating32 to 200 Deg F (Fluid)
Input Supply24 Volt AC at 50/60 Hertz
ApplicationHeating and Cooling
Body MaterialForged Brass
End ConnectionInverted Flare x Inverted Flare
StandardsANSI Class IV
Mounting TypeHorizontal/Vertical
IncludesHysteresis Synchronous Motor for Long Life, Spring Return Operation Provides a Fail-Safe, Manual Override Lever
MediaHot/Chilled Water, Glycol
Actuation Type2-Position, Spring Return, On/Off (General Close-Off)
Valve PositionNormally Closed
Valve Timing25 Second for 60 Hertz/30 Second for 50 Hertz/9 Second for Spring Return (Full Open to Full Close)
