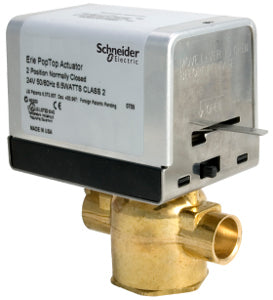

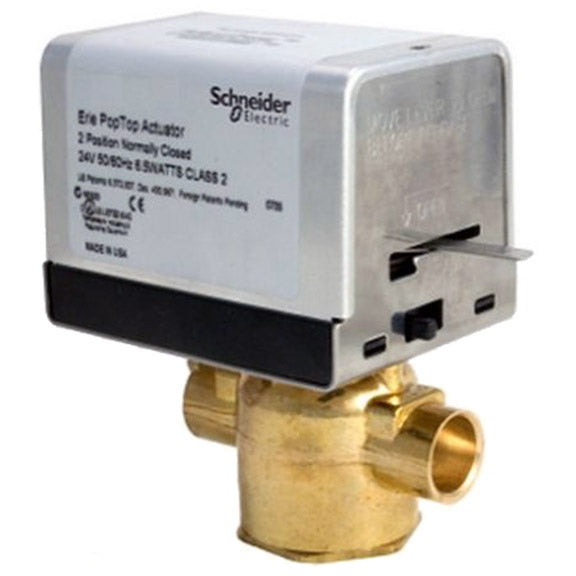

Erie Controls VT2517G13A02A Zone Valve Body Assembly

Erie Controls VT2517G13A02A Zone Valve Body Assembly delivers precise 2-Way valve control for heating and cooling systems. This valve features soldered x soldered end connections, 24V AC input, and a 2-position, spring-return actuation that provides a reliable on/off (general close-off) operation with a normally closed valve position.

Built with a forged brass body and nickel-plated brass stem, it handles hot water, chilled water, and glycol across a wide temperature range (32 to 200 deg F) and supports pressures up to 17 psi close-off and 300 psi static. The unit offers a hysteresis synchronous motor for long life, and a manual override lever for quick service or maintenance.

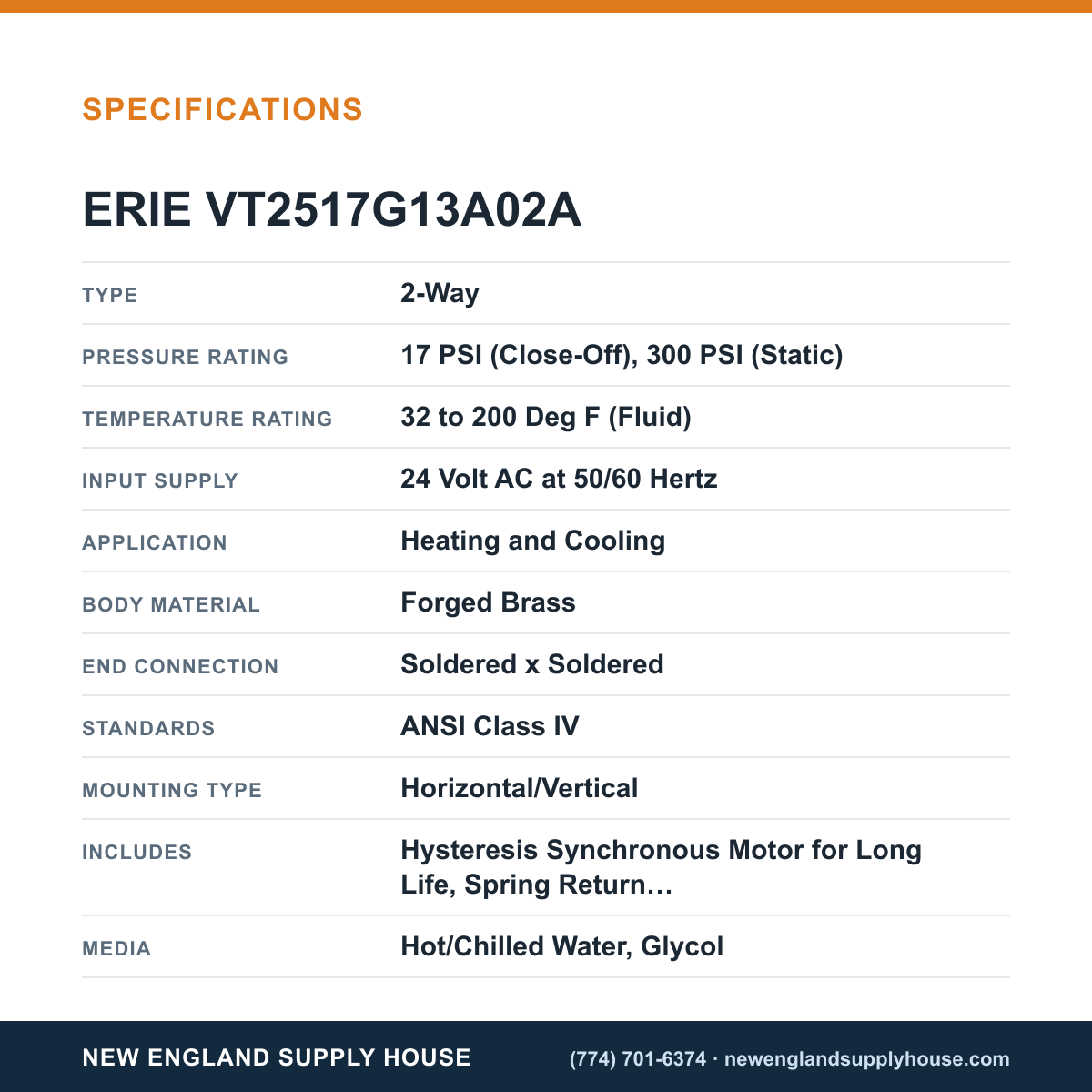

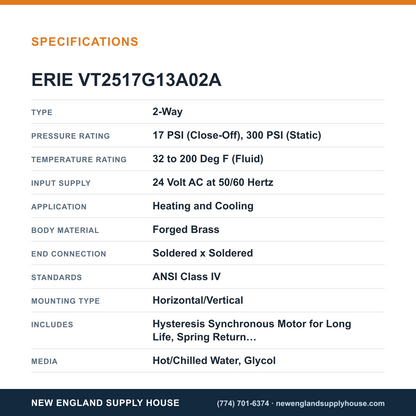

Key features:

• Type: 2-Way Zone Valve Body Assembly
• End connections: soldered x soldered
• Actuation: 2-position, spring return, on/off
• Valve position: normally closed
• Flow capacity: 7.5 Cv
• Electrical: 24 VAC, 18-inch lead
• Media: hot water, chilled water, glycol
• Temperature: 32–200°F
• Pressure: 17 psi close-off, 300 psi static
• Application: heating and cooling system control
• Standards: ANSI Class IV

Ideal for HVAC installations requiring robust, fail-safe zone valve control with easy installation and maintenance.
