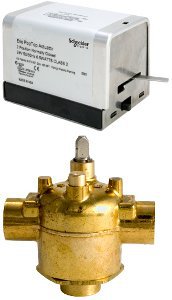

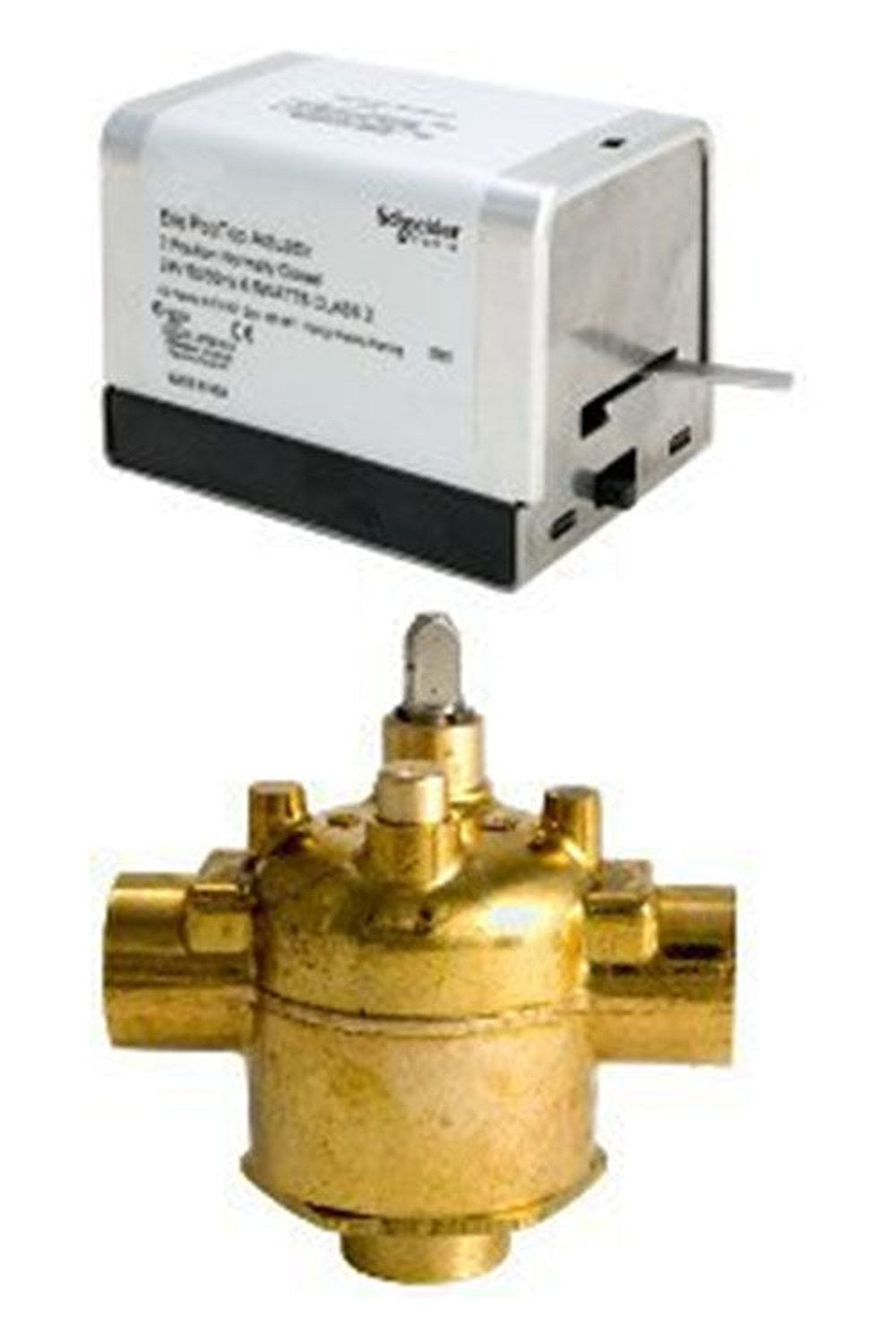

Erie Controls VT3417G13A01A Zone Valve Body Assembly

VT3417G13A01A Zone Valve Body Assembly by Erie Controls delivers precise 3-Way flow control for heating and cooling systems. The 1-inch nominal size uses soldered x soldered end connections and a forged brass body with a nickel-plated brass stem. This valve employs a 2-Position, spring-return actuator for reliable on/off operation, and its normally closed position provides a fail-safe condition during power loss.

Designed for hot water, chilled water, and glycol applications, it handles temperatures from 32 to 200°F and tolerates static pressures up to 300 psi (close-off 25 psi). With 24V AC input at 50/60 Hz and 18-inch electrical leads, the valve can be mounted horizontally or vertically to fit any configuration. It features a hysteresis synchronous motor for long life and includes a manual override lever for on-site service.

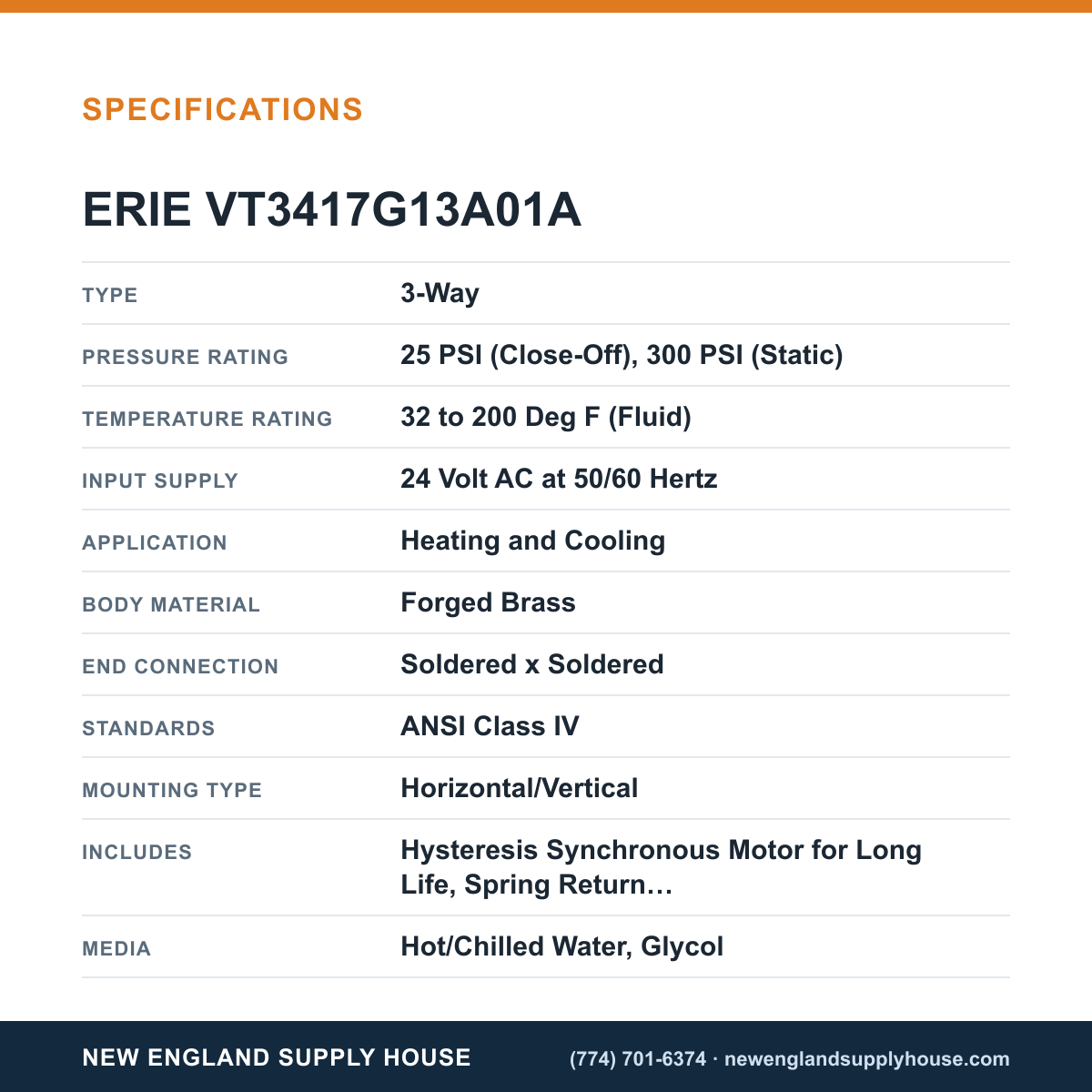

• 3-Way valve body with soldered x soldered end connections
• 2-Position, spring-return actuation for fail-safe on/off control
• Forged brass body with nickel-plated brass stem and Buna N paddle seating
• Flow capacity 7.5 Cv; ANSI Class IV
• Operating range 32–200°F; 25 psi close-off / 300 psi static; 24V AC 50/60 Hz
• 18-inch electrical leads; horizontal or vertical mounting

Ideal for efficient heating and cooling system zoning.
