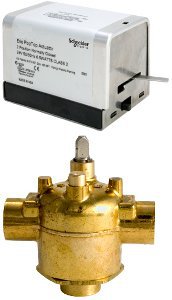

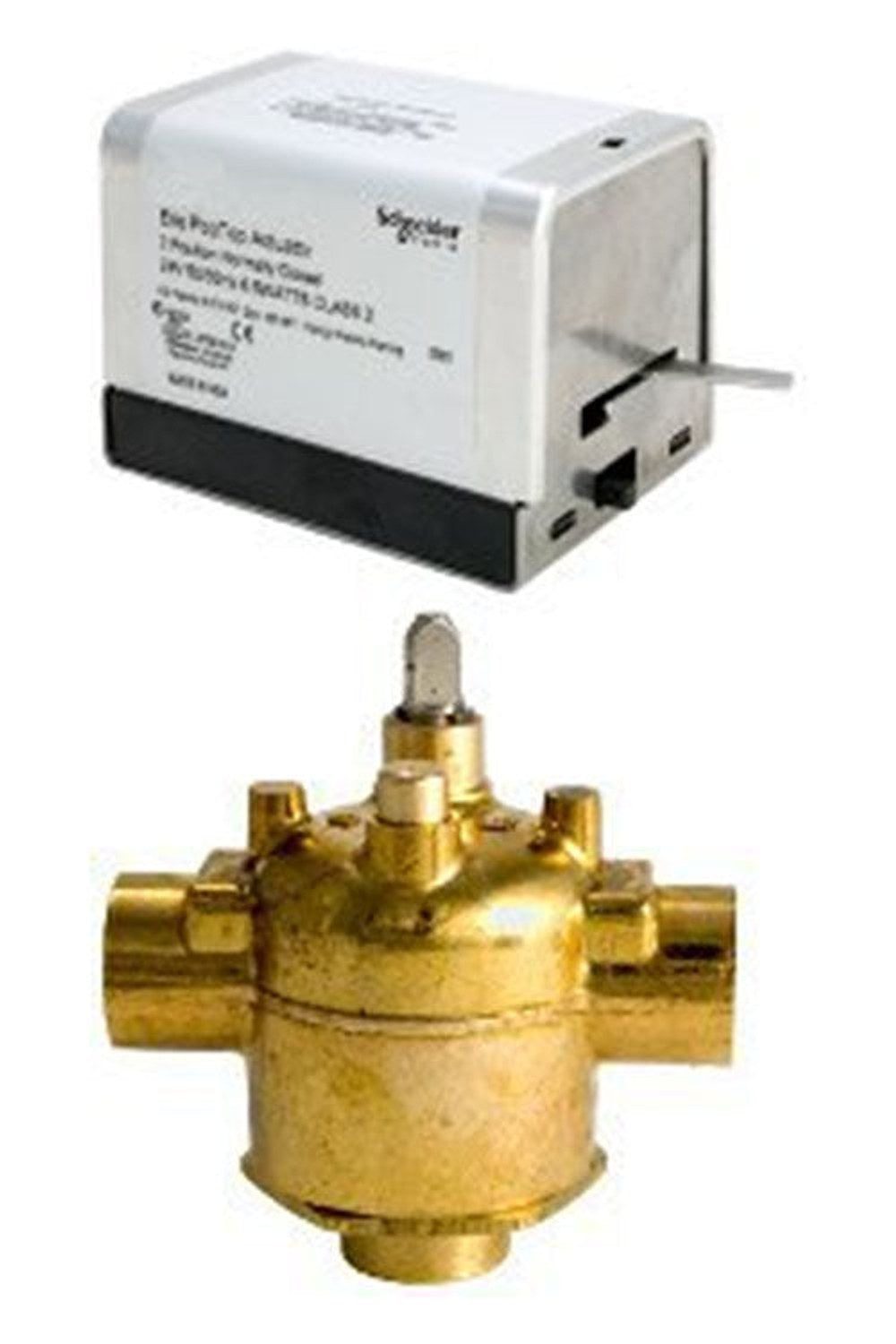

Erie Controls VT3417G13A02A Zone Valve Body Assembly

Zone Valve Body Assembly VT3417G13A02A by Erie Controls delivers precise 3-way control for HVAC systems. This Zone Valve Body Assembly combines a rugged forged brass body with a 24V AC synchronous motor for dependable heating and cooling operation.

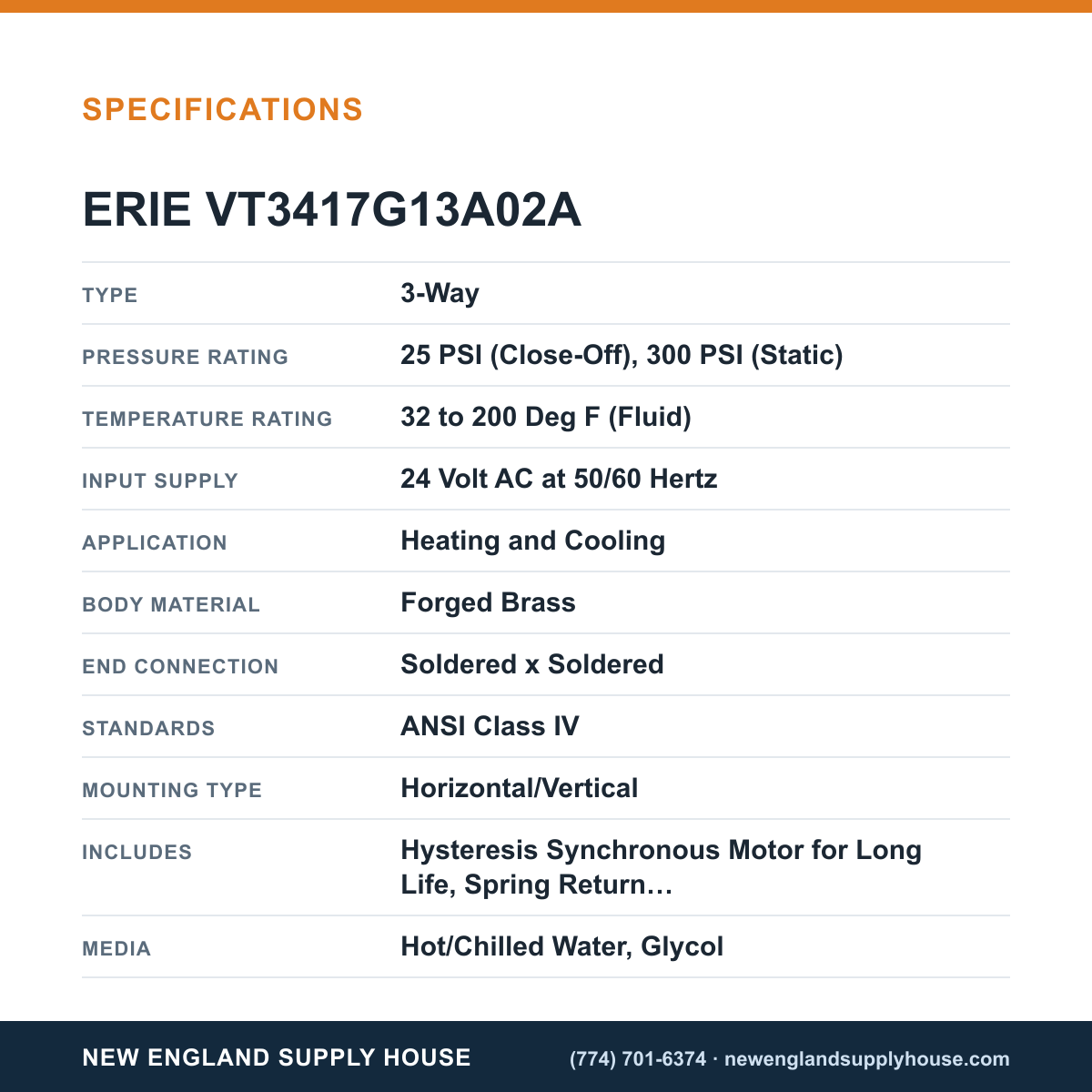

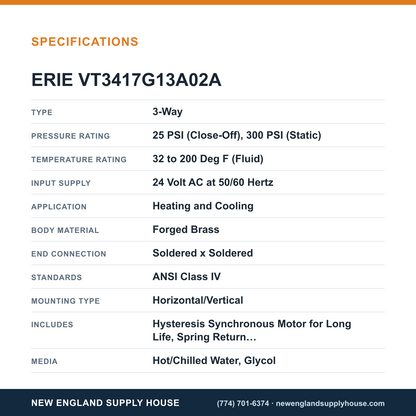

Key specs include Type 3-Way, Nominal Size 1 Inch, End Connections Soldered x Soldered, and 2-Position, Spring-Return (On/Off) with a normally closed valve position. The valve features a forged brass body with a nickel-plated brass stem and Buna N paddle for durability. Valve timing is 25 seconds at 60 Hz, 30 seconds at 50 Hz, with 9 seconds for the spring-return to move from full open to full close. It operates on 24V AC (50/60 Hz) and handles temperatures from 32 to 200 degrees Fahrenheit with pressure ratings of 25 psi close-off and 300 psi static. Flow capacity 7.5 Cv. Suitable for hot water, chilled water, and glycol, this valve excels in heating and cooling applications.

• Synchronous motor for long life and reliable actuation
• Fail-safe spring-return provides dependable shutoff
• Manual override lever for service and testing
• 18-inch electrical lead for easy wiring
• Durable materials include nickel-plated brass stem, brass seat, and Buna N paddle
