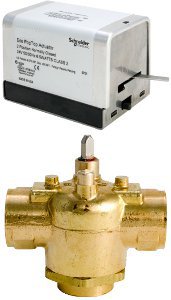

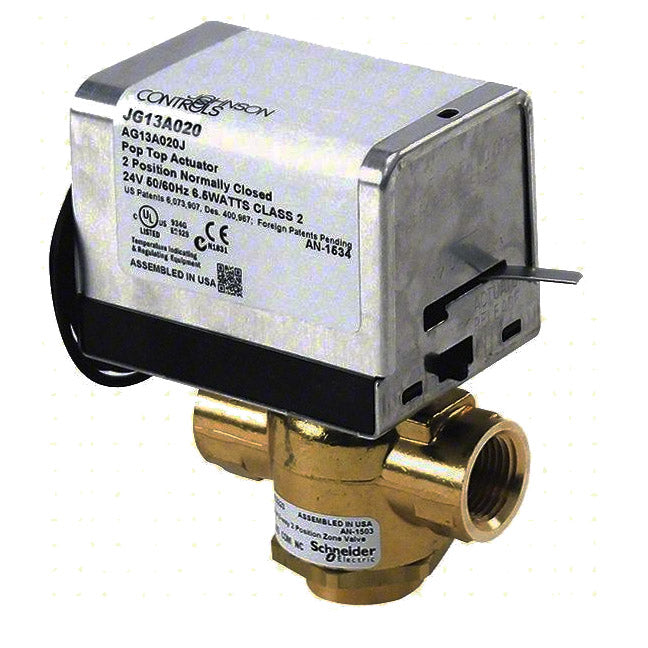

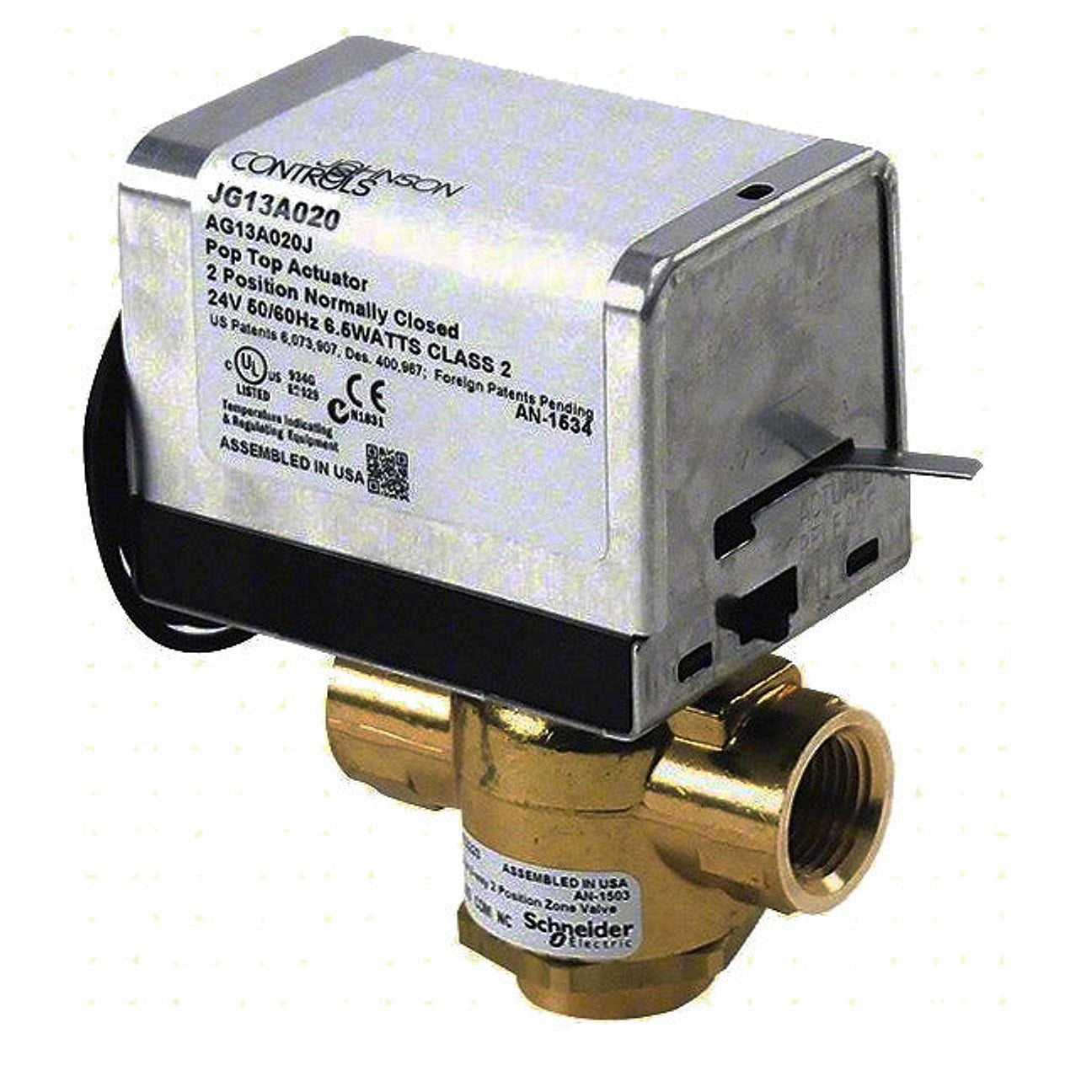

Erie Controls VT3427G13A020 Zone Valve Body Assembly

VT3427G13A020 Zone Valve Body Assembly is engineered for reliable 3-Way control in heating and cooling systems. Featuring a forged brass body and nickel-plated stem, this zone valve handles hot and chilled water with glycol blends for versatile HVAC performance. The 24 VAC actuation is a 2-Position, Spring Return design with a normally closed position, delivering a dependable fail-safe for zone control. Suitable for horizontal or vertical mounting, it meets ANSI Class IV standards for leak-tight performance.

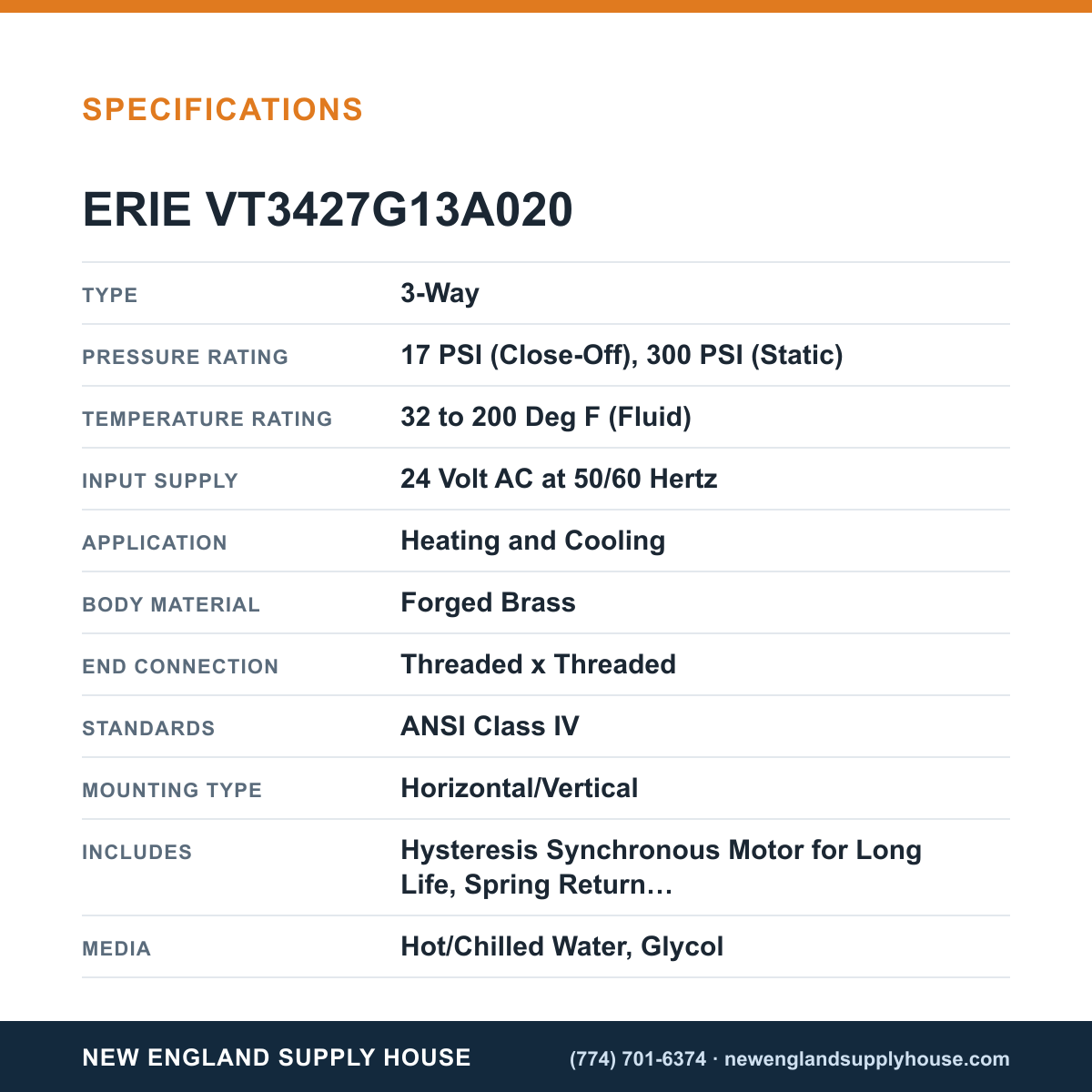

• Type: 3-Way valve
• Nominal Size: 1 inch
• End Connections: Threaded x Threaded
• Actuation: 2-Position, Spring Return (On/Off), Normally Closed
• Flow Capacity: 7.5 Cv
• Media: Hot/Chilled Water, Glycol
• Temperature Range: 32–200°F
• Pressure: 17 psi close-off; 300 psi static
• Electrical: 24 VAC at 50/60 Hz; 18 in. lead
• Mounting: Horizontal or Vertical
• Timing (full open to full close): 25 s @ 60 Hz; 30 s @ 50 Hz; 9 s with spring return
• Materials: Nickel-plated Brass (Stem); Brass (Seat); Buna N (Paddle)
• Ambient/Humidity: 104°F ambient; 5–95% non-condensing
• Application: Heating and Cooling
• Standards: ANSI Class IV
