GC Valves S202GF02N5DG4 Solenoid Valve

Solenoid Valve GC Valves S202GF02N5DG4 delivers precise control for automation systems. This 2-Way Zero Differential, Pilot Diaphragm valve features a brass body with 1/2 inch female threaded ports and a Normally Open (NO) configuration.

Built for demanding environments, the unit is rated for 120 VAC at 60 Hz and supports pressures up to 150 PSI. The rugged NEMA 4/4X enclosure and explosionproof (NEMA 7) construction protect it in harsh settings, while the ambient temperature range of 32 to 125 F expands its versatility.

Standard lead length is 24 inches. Seals are nitrile for reliable compatibility with common fluids. It meets UL and CSA standards, ensuring safety and compliance. Inclusions include metallic conduit, grommet, open frame, and a junction box with single or dual knockout options.

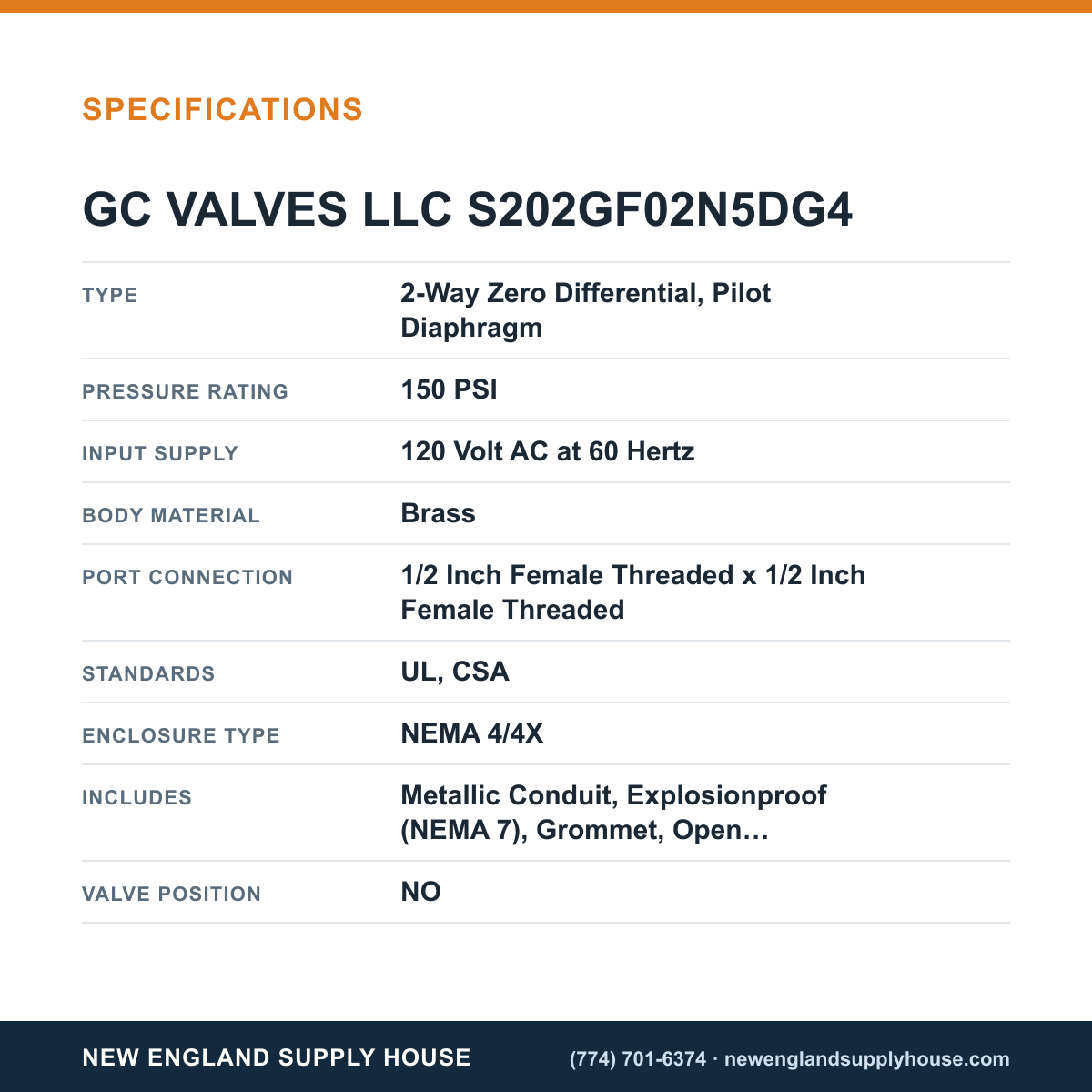

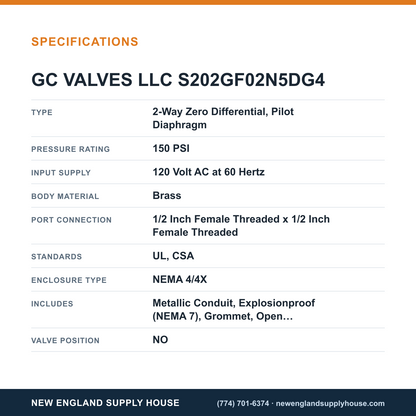

• 2-Way Zero Differential, Pilot Diaphragm design
• Brass body with 1/2 inch female threaded ports
• Normally Open (NO) configuration for easy actuation
• NEMA 4/4X enclosure; Explosionproof (NEMA 7)
• 120 VAC, 60 Hz input; 150 PSI pressure rating
• UL and CSA listed; nitrile seals for chemical compatibility
• Standard lead length 24 inches; includes metallic conduit, grommet, open frame, and junction box options
