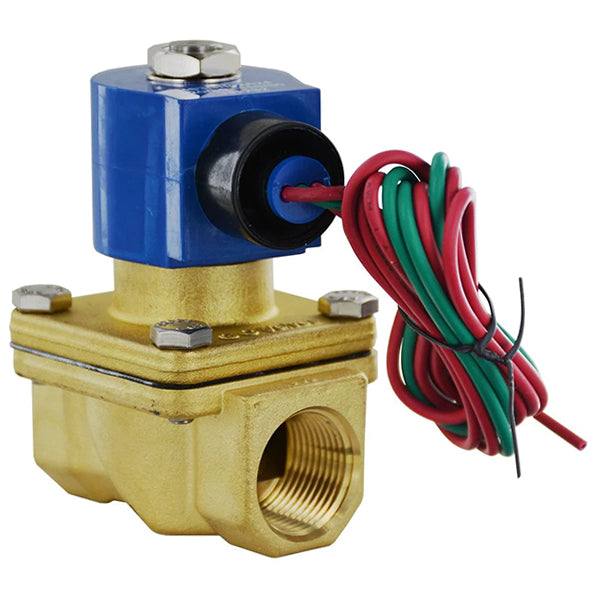

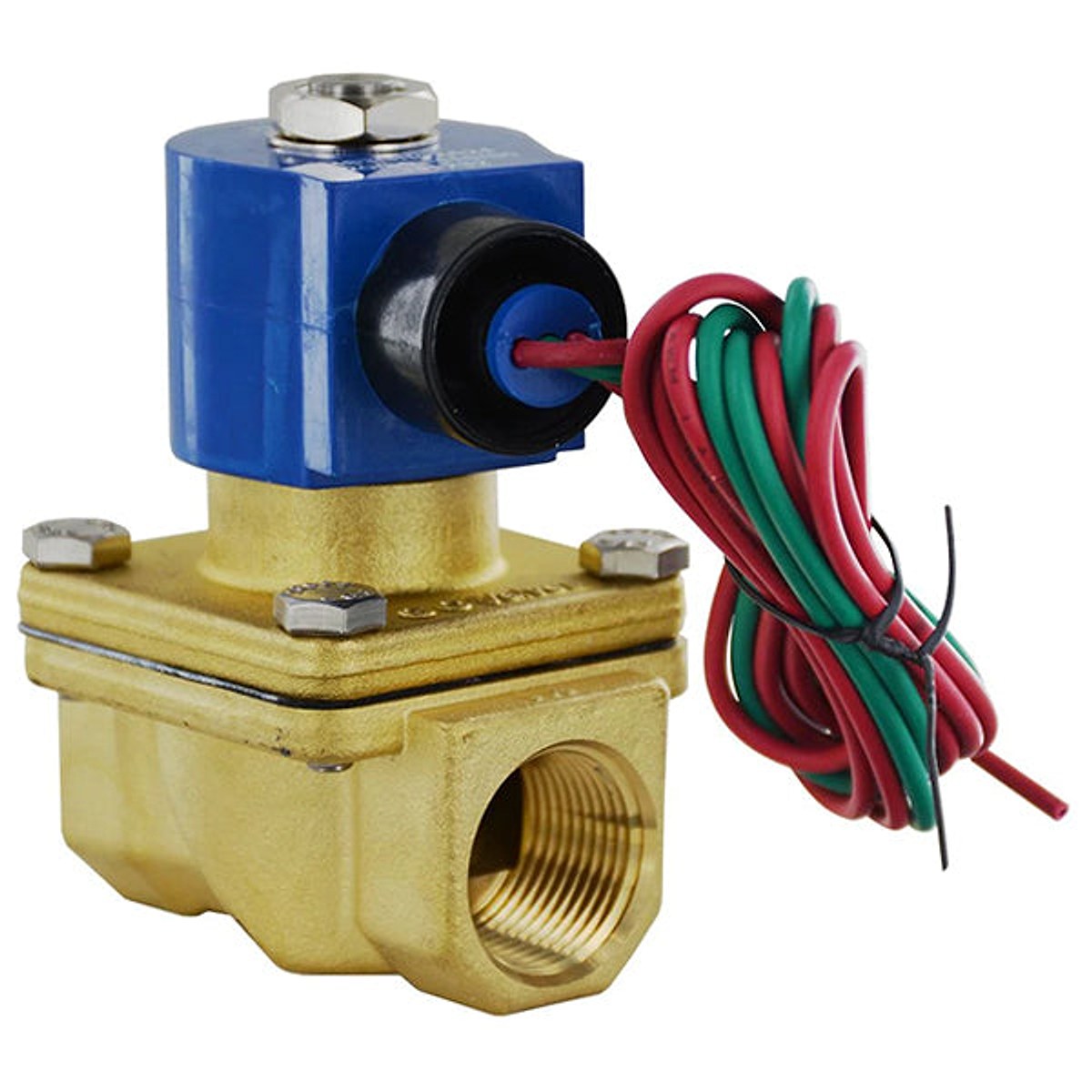

GC Valves S211GH02C5EG5 Solenoid Valve, 3/4", 120V, Replaces S211GF02C5EG5

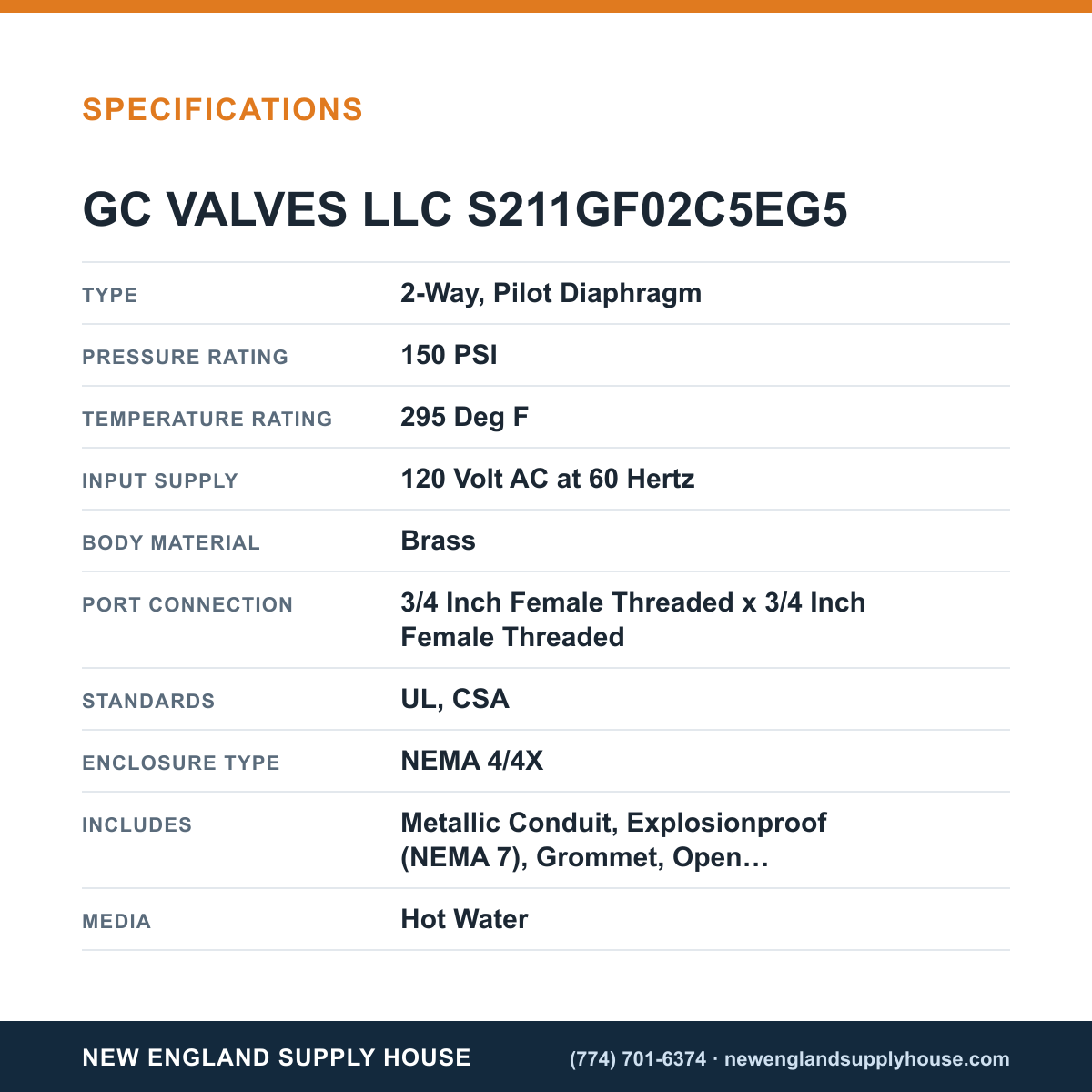

Solenoid Valve S211GF02C5EG5 by GC Valves delivers dependable 2-Way control with a robust pilot diaphragm design. The brass body with 3/4 inch female threaded ports accepts standard piping and supports UL/CSA listed performance for hot water systems. Operating at 120 Volt AC, 60 Hz, the valve handles up to 150 PSI and temperatures up to 295°F, making it ideal for residential or commercial hot water applications. The valve is normally closed (NC) for fail-safe operation and features a NEMA 4/4X enclosure for weatherproof and corrosion resistance.

• 2-Way solenoid valve with a pilot diaphragm for precise control
• 3/4" female threaded ports on inlet and outlet; brass body for durability
• Normally Closed (NC) valve position for fail-safe operation
• UL/CSA listed with NEMA 4/4X enclosure for indoor/outdoor reliability
• Hot water ready with temperature rating up to 295°F and pressure up to 150 PSI
• Lead length 24 inches; seal material EPR
• Vertical mounting and included installation options (metallic conduit, grommet, open frame, junction box)
• Explosion-proof configuration available (NEMA 7) with metallic conduit and junction box options
