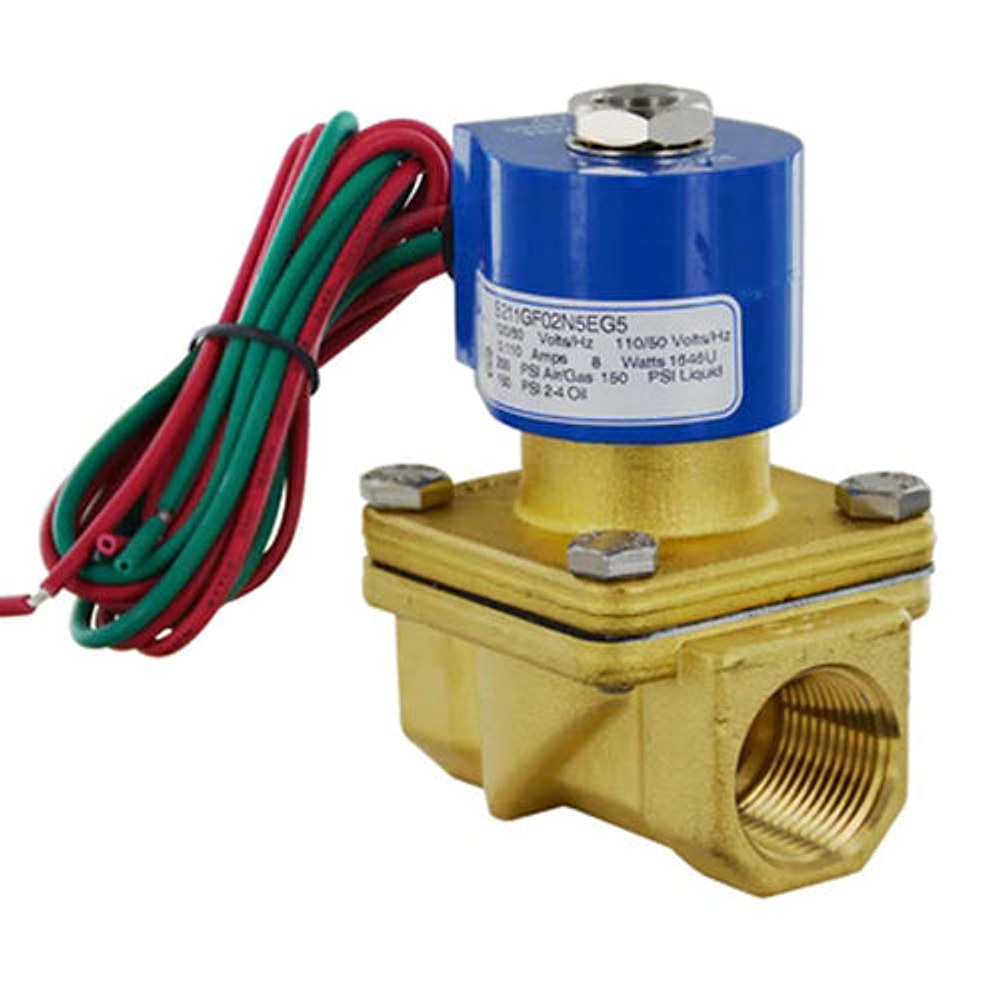

GC Valves S211GF02N5EG5 Solenoid Valve

The GC Valves S211GF02N5EG5 Solenoid Valve is a rugged 2-Way pilot diaphragm valve designed for precise air and water control. This 3/4 inch female threaded valve features a brass body and a NEMA 4/4X enclosure for reliability in demanding environments.

Powered by 120 V AC at 60 Hz, it delivers dependable actuation with a normally closed (NC) valve position. With a 200 PSI rating and a wide operating range from 32°F to 125°F ambient (and a 180°F temperature rating), this valve handles challenging conditions while maintaining a tight seal with Nitrile.

• 2-Way, pilot diaphragm design for reliable control
• Port connections: 3/4" female threaded inlet and outlet
• Brass body for durability and corrosion resistance
• Enclosure: NEMA 4/4X protection
• Valve position: Normally Closed (NC)
• Media: Air or Water
• Standards: UL, CSA listed
• Inclusions: Metallic conduit, explosionproof (NEMA 7), grommet, open frame, junction box (single or dual knockout)
• Lead length: 24 inches; Port size: 3/4 inch
• Ambient temp: 32–125°F; Seal: Nitrile
