GC Valves S211UF02N5EG5 Solenoid Valve

The Solenoid Valve GC Valves S211UF02N5EG5 is a robust 2-Way, pilot-diaphragm valve designed for reliable control in industrial systems. This normally closed (NC) configuration uses a brass body and 3/4 inch female threaded ports for secure, leak-tight connections.

Operating at 120 Volt AC (60 Hz), with a NEMA 4/4X enclosure and optional explosion-proof (NEMA 7) versions, it meets UL and CSA standards for safety and performance. The unit is designed for vertical mounting and provides a standard 24 inch lead length, making field wiring straightforward in densely installed equipment enclosures. The nitrile seal is engineered for 32 to 125°F ambient temperatures, delivering dependable shutoff in challenging environments.

In addition to the core valve, this model includes features that simplify installation and maintenance, such as metallic conduit options, grommets, an open frame, and a junction box with single or dual knockout configurations.

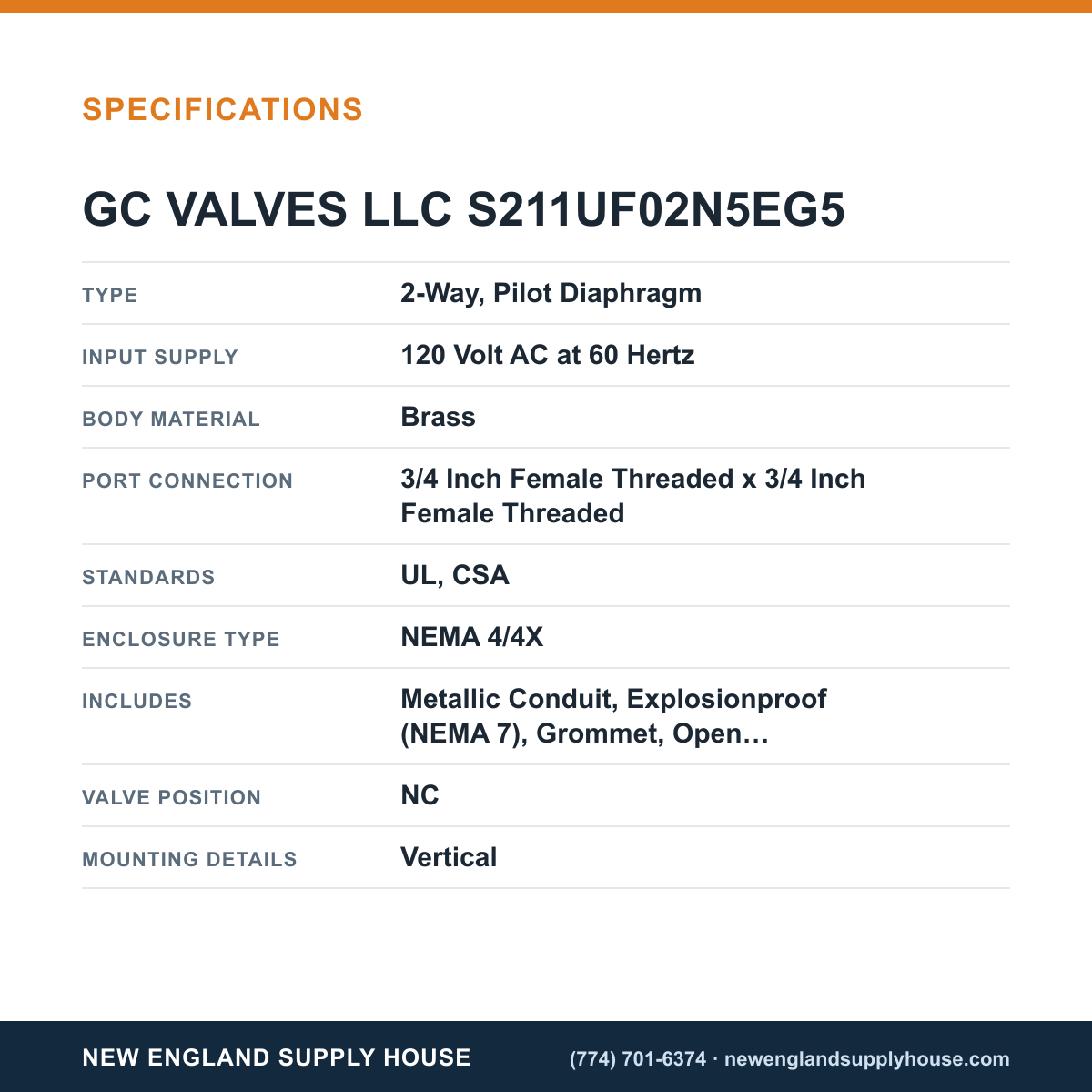

• Port connections: 3/4" female thread x 3/4" female thread
• Valve type: 2-Way, pilot diaphragm, normally closed (NC)
• Body material: Brass
• Enclosure: NEMA 4/4X (explosionproof NEMA 7 options available)
• Input supply: 120 VAC, 60 Hz
• Mounting: Vertical
• Seal material: Nitrile
• Standard lead length: 24 inches
• Standards: UL, CSA
