Grundfos Pumps UPS15-58FRC Circulator Pump
Grundfos Pumps UPS15-58FRC Circulator Pump
55 in stock
Couldn't load pickup availability
- Purchase Orders & Tax-Exempt Welcome Contractors, municipalities, schools and businesses: email a PO, or send your exemption certificate once and tax comes off every order.
SKU:65564
View full details
![Grundfos Pumps UPS15-58FRC Circulator Pump — New England Supply House spec card [NESH-SPEC-CARD-V2]](http://newenglandsupplyhouse.com/cdn/shop/files/spec-9032759247070.png?v=1782842845&width=1445)
![Grundfos Pumps UPS15-58FRC Circulator Pump specifications — New England Supply House [NESH-SPECTABLE-V1]](http://newenglandsupplyhouse.com/cdn/shop/files/specs-9032759247070.png?v=1790701797&width=1445)
The Grundfos UPS15-58FRC Circulator Pump is built for dependable flow and efficiency in residential and light commercial heating or cooling applications. This 115V unit features a 1/25 HP motor with 3-speed control, providing precise, energy-efficient circulation for your hydronic system.
With a rugged cast iron housing and a reverse flange design, the pump is built for durability and easy retrofit into existing piping. Its compact profile fits tight spaces, while variable speeds help optimize performance, reduce noise, and minimize energy consumption in boiler, radiant floor, or loop applications.
Ideal for heating, air conditioning, and radiant floor installations, the UPS15-58FRC delivers reliable flow and long service life. Its design supports efficient energy use and low maintenance, making it a smart upgrade for aging circulating pumps.
- 115V power supply
- 1/25 HP motor
- 3-speed operation for tuning flow
- Cast iron housing for longevity
- Reverse flange mounting for flexible installs

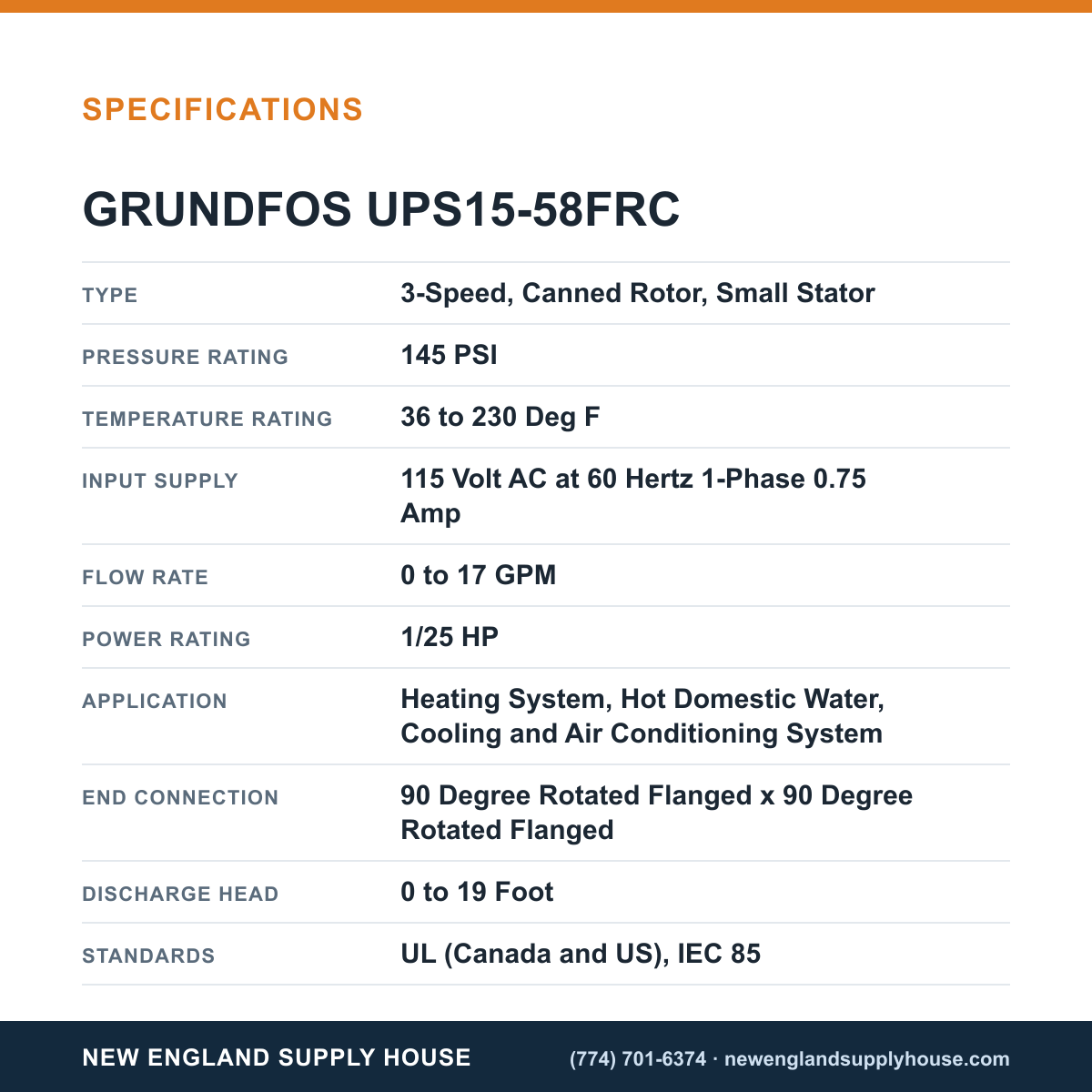

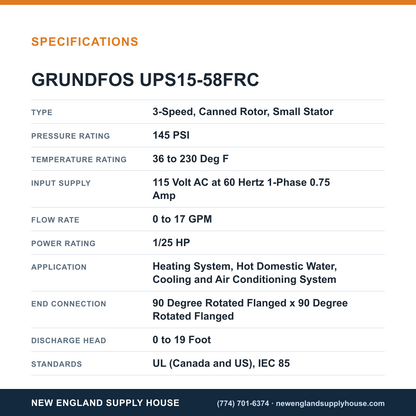

Specifications
| Type | 3-Speed, Canned Rotor, Small Stator |
|---|---|
| Pressure Rating | 145 PSI |
| Temperature Rating | 36 to 230 Deg F |
| Input Supply | 115 Volt AC at 60 Hertz 1-Phase 0.75 Amp |
| Flow Rate | 0 to 17 GPM |
| Power Rating | 1/25 HP |
| Application | Heating System, Hot Domestic Water, Cooling and Air Conditioning System |
| End Connection | 90 Degree Rotated Flanged x 90 Degree Rotated Flanged |
| Discharge Head | 0 to 19 Foot |
| Standards | UL (Canada and US), IEC 85 |
| Includes | Removable Check Valve, Carbon Thrust Bearing, Radial Bearing, Bearing Plate, Corrosion Resistant, (2) 1/2 Inch Bolt Hole |
| Impeller Material | Composite, PES |
| Impeller Design | Closed |
| Casing Material | AISI 304 Stainless Steel |
| Motor Type | 2-Pole Asynchronous Squirrel-Cage Permanent Split Capacitor |
| Shaft Material | Ceramic |
| Warranty | 24 Months from the Date of Delivery |
