Grundfos Pumps UPS26-99FC Circulator Pump

UPS26-99FC Circulator Pump from Grundfos delivers reliable, energy-efficient circulation for heating systems, hot domestic water, and cooling applications. The UPS26-99FC Circulator Pump features a 3-speed, canned rotor design with a large stator for steady flow and long life.

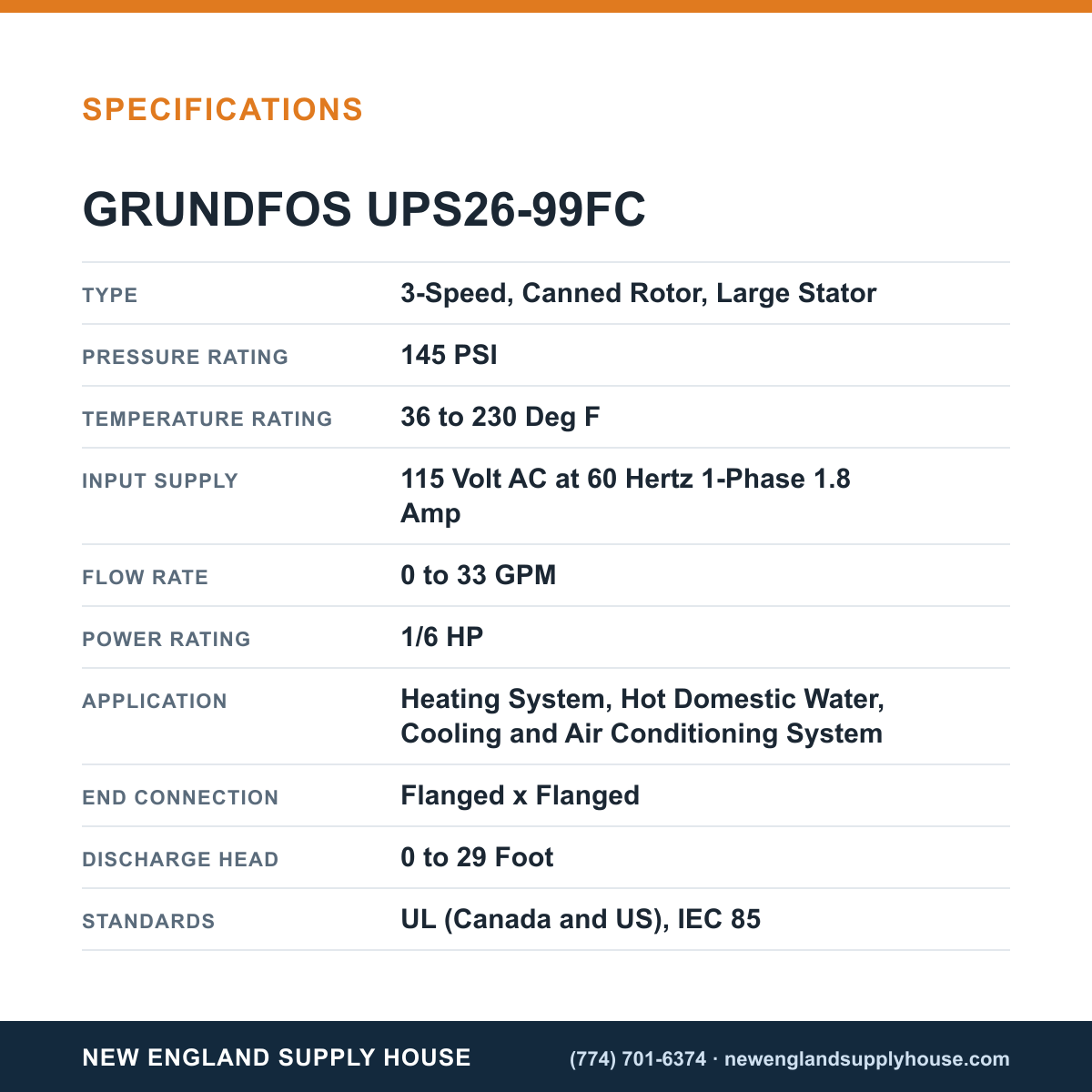

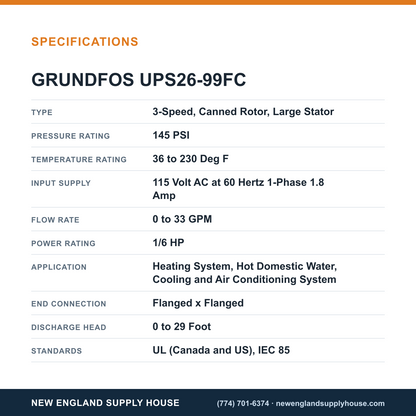

With end connections flange x flange, it handles up to 0–33 GPM and a discharge head of 0–29 ft. The 1/6 HP, 115V AC, 60 Hz, 1-phase motor provides efficient performance across a 36–230°F temperature range and up to 145 PSI. The 2-pole asynchronous PSC design ensures reliable startup and smooth operation.

• 3-speed operation with a 2-pole PSC motor for adjustable flow
• Canned rotor and large stator for efficient, low-noise performance
• Flanged x Flanged end connections for straightforward installation
• Durable ASTM 30B cast iron casing; ceramic shaft and PES impeller for corrosion resistance
• Removable check valve, carbon thrust bearing, radial bearing, and bearing plate included
• Two 1/2 inch bolt holes for secure mounting
• Applications: heating, hot domestic water, cooling and air conditioning systems
• UL (Canada/US) and IEC 85 standards; lead-free construction
• Warranty: 24 months from delivery
