Honeywell Commercial 220736A Foot Mounted Motor Internal Auxiliary Switch Kit

Honeywell Commercial 220736A Foot Mounted Motor Internal Auxiliary Switch Kit is designed for Modutrol IV motor control systems and is commonly used with Tradeline models. This internal auxiliary switch kit provides a precise 1-SPDT control signal and a reliable On/Off switch, ensuring smooth start/stop operation in HVAC applications. Specifically engineered for foot-mounted motors, it integrates easily with standard control panels to support dependable performance.

This kit features durable construction and precise micro-switch actuation to deliver consistent control under typical HVAC operating conditions. It supports a wide voltage range with explicit full-load and locked-rotor ratings for 120 and 240 VAC systems, while the 15-inch lead wire simplifies wiring in tight control enclosures.

• 1-SPDT control signal with an On/Off switch for straightforward motor control
• Auxiliary switch ratings: 7.2 A @ 120 VAC (full load); 3.6 A @ 240 VAC (full load); 43.2 A @ 120 VAC (locked rotor); 21.6 A @ 240 VAC (locked rotor)
• Electrical connection: 15-inch lead wire for flexible installation
• Power consumption: 20 VA driving power
• Temperature rating: 0 to 131°F operating range
• Includes: Micro Switch V3 precision switch

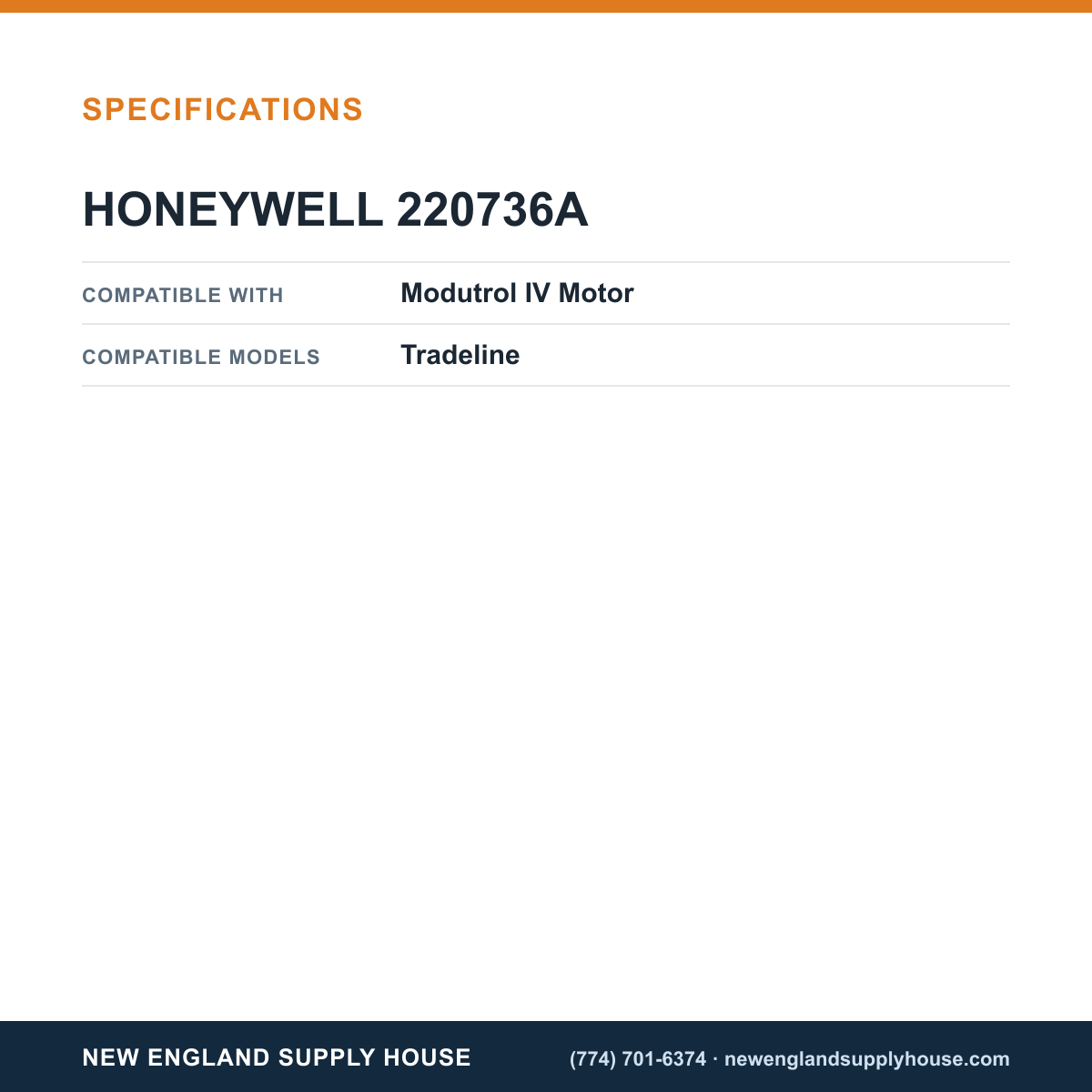

• Compatibility: Modutrol IV motor and Tradeline devices
