Honeywell Commercial M4185B1009 Actuator Motor

The Honeywell M4185B1009 Actuator Motor is a rugged, 2-position SPST, line-voltage actuator designed for damper control in commercial HVAC systems. With spring-return operation and a 120V AC supply, it delivers reliable cycling, 60 in-lb torque, and a wide 160° rotation for precise airflow adjustment. Built for durability, the unit features a NEMA 3 enclosure, foot-mount installation, and UL/CE/RoHS compliance for broad applicability in modern facilities.

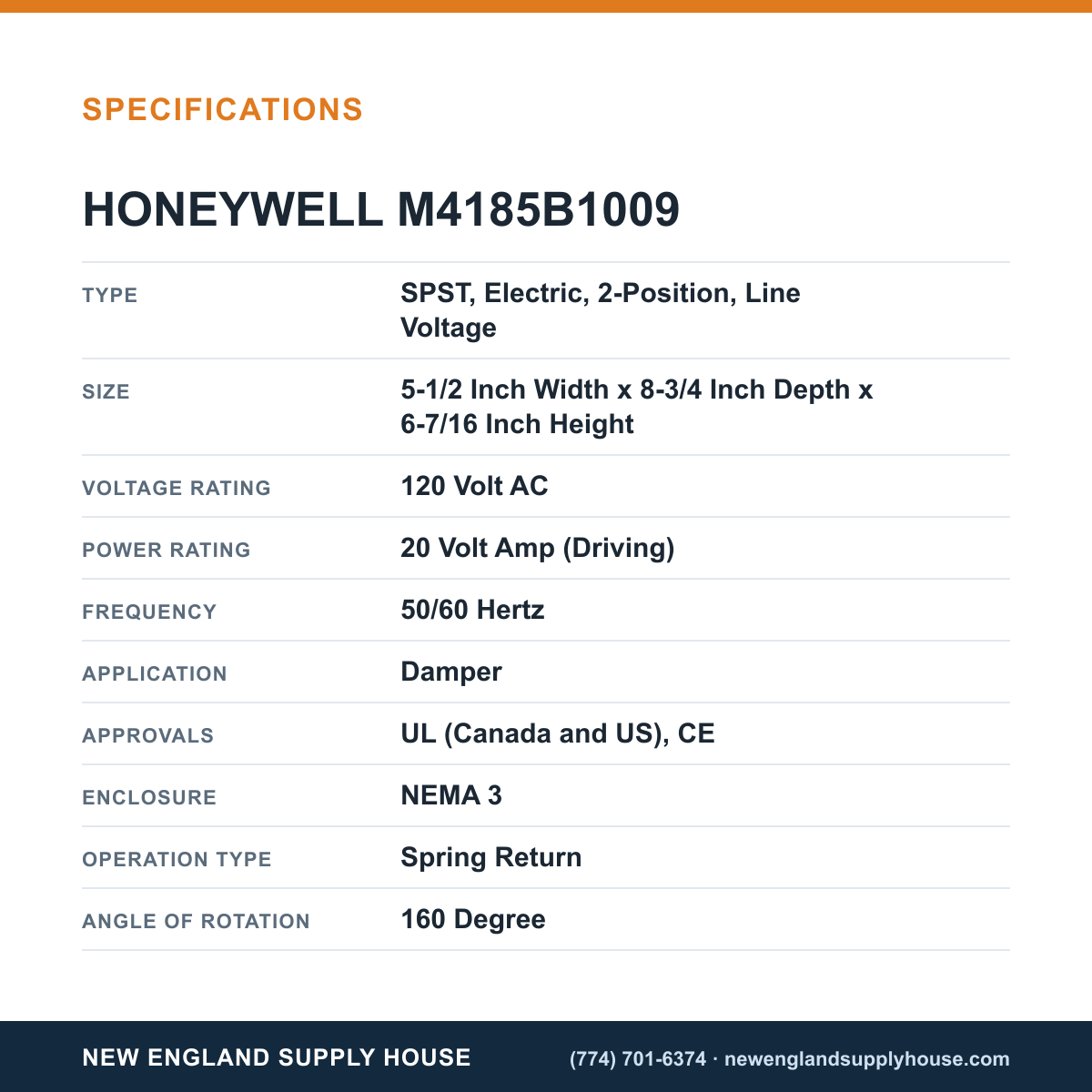

• Type: SPST, 2-Position, Line Voltage
• Operation: Spring Return
• Voltage: 120 VAC, 50/60 Hz
• Torque: 60 in-lb
• Rotation: 160°
• Enclosure: NEMA 3
• Mounting: Foot Mount
• Connection: Quick Connect Terminal
• Includes: Transformer, Auxiliary Switch
• Size: 5-1/2"W x 8-3/4"D x 6-7/16"H
• Operating Temp: -40 to 150°F
• Applications: Damper
• Approvals: UL (Canada & US), CE, RoHS Compliant
• Rotation Direction: Clockwise
• Nominal Time: 30–60 seconds
