• Honeywell Commercial M6194D1017 Damper Actuator
  • Honeywell Commercial M6184D1035 Actuator Motor — New England Supply House spec card [NESH-SPEC-CARD-V2]
1 2

Honeywell Commercial M6184D1035 Actuator Motor

Honeywell Commercial M6184D1035 Actuator Motor

$1,145.38 USD
$1,145.38 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 2 left

2291

View full details

Honeywell Commercial M6184D1035 Actuator Motor is a high-reliability damper actuator for commercial HVAC systems. This electric, floating actuator offers non-spring return operation and precise control in a compact footprint.

Rated for 24 VAC input with a 50/60 Hz supply, it delivers up to 150 in-lb of torque through a 160° travel. The rugged NEMA 3 enclosure, foot mounting, and quick-connect terminals simplify installation in ducts and dampers. RoHS compliant and UL-listed (US/Canada) with CE marking, this actuator is built for demanding environments and long service life.

  • Voltage: 24 VAC
  • Frequency: 50/60 Hz
  • Torque: 150 in-lb
  • Rotation: 160°
  • Power: 15 VA
  • Enclosure: NEMA 3
  • Mounting: Foot mount
  • Connection: Quick Connect terminals
  • Nominal travel time: 30–60 seconds
  • Operating temp: -40 to 150°F
  • Certifications: UL listed (US/Canada), CE, RoHS

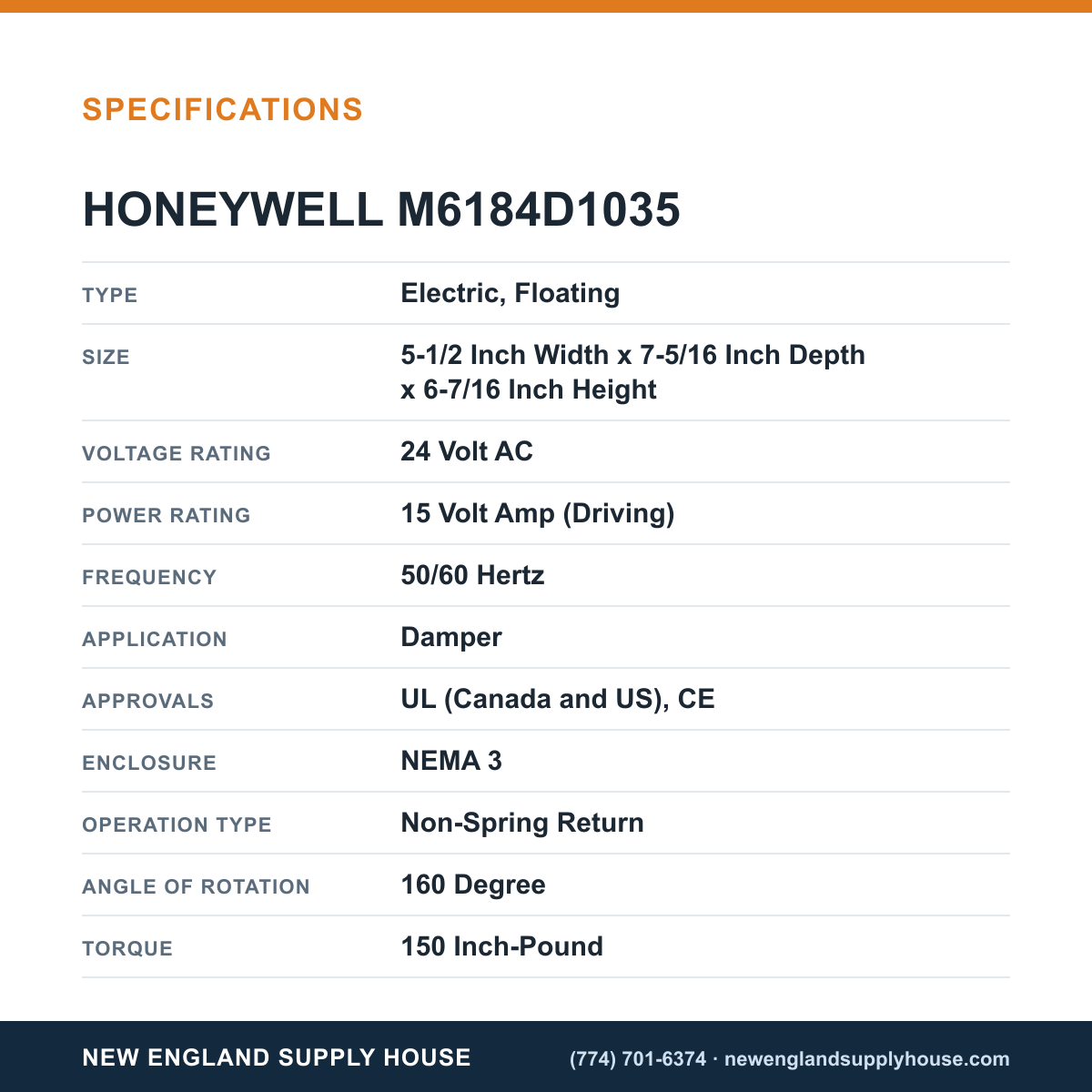

Specifications

TypeElectric, Floating
Size5-1/2 Inch Width x 7-5/16 Inch Depth x 6-7/16 Inch Height
Voltage Rating24 Volt AC
Power Rating15 Volt Amp (Driving)
Frequency50/60 Hertz
ApplicationDamper
ApprovalsUL (Canada and US), CE
EnclosureNEMA 3
Operation TypeNon-Spring Return
Angle of Rotation160 Degree
Torque150 Inch-Pound
Operating Temperature-40 to 150 Deg F (Ambient)
Max AC Voltage24 Volt
