Honeywell Commercial M6194D1017 Damper Actuator

The Honeywell Commercial M6194D1017 Damper Actuator is a high-precision electric, floating damper actuator for HVAC systems. It operates on 24V AC and delivers stable, non-spring return control for reliable damper positioning.

Designed for commercial HVAC applications, this actuator delivers 300 inch-pounds of torque with a 160-degree rotation, enabling precise damper control across wide opening ranges. The rugged die-cast aluminum body and NEMA 3 enclosure ensure durability in harsh environments. With a foot-mount design and quick-connect terminals, installation is straightforward, while UL and CE approvals certify quality and safety. Operating temperature range from -40 to 150 degrees Fahrenheit allows use in varied climates.

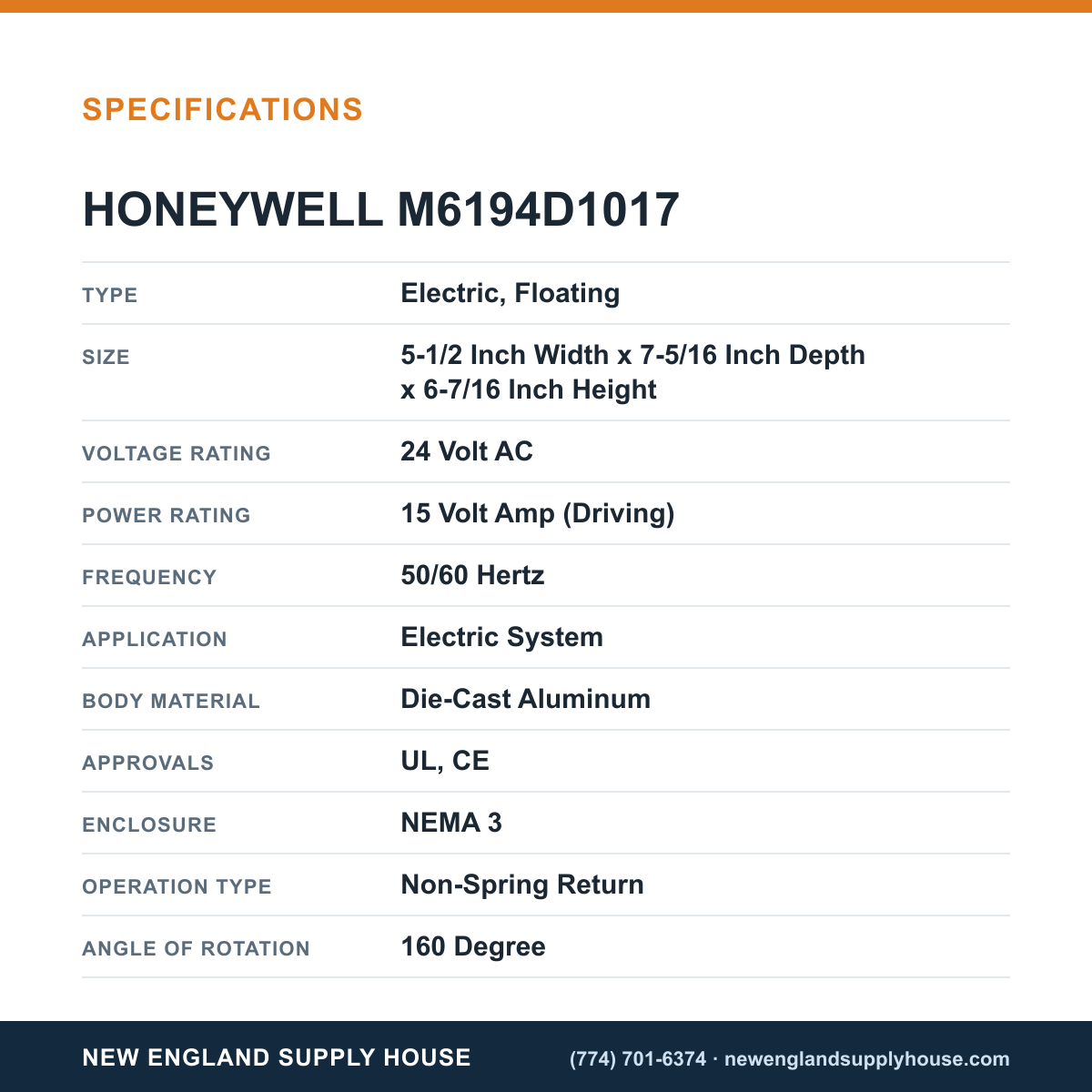

• Type: Electric, Floating; Non-Spring Return
• Voltage: 24 V AC | Frequency: 50/60 Hz
• Torque: 300 in-lb
• Rotation: 160 degrees
• Enclosure: NEMA 3
• Mounting: Foot Mount
• Material: Die-Cast Aluminum
• Connection: Quick Connect Terminal
• Size: 5-1/2 in W x 7-5/16 in D x 6-7/16 in H
• Operating Temp: -40 to 150°F
• Approvals: UL, CE
• Timing: 120–240 seconds
