Honeywell Commercial M6285A1005-S Electric Damper Actuator

Honeywell M6285A1005-S Electric Damper Actuator is a reliable choice for commercial HVAC dampers, delivering precise 24V AC control. This floating, adjustable, asymmetrical actuator operates as a spring-return, normally closed (NC) device to fit a range of damper configurations.

Designed for durable performance, it features a foot-mounted installation and a 3/8 inch square shaft with a dual-ended motor for flexible mounting. The actuator delivers 60 in-lb of torque with a rotation range of 90–160 degrees, all within a rugged NEMA 3 enclosure for indoor or protected outdoor use. With a 30–60 second timing and quick-connect terminals, wiring is fast and secure.

Approved for modern systems, this model is UL (Canada and US), CE, and RoHS compliant, making it a smart integration choice for any commercial HVAC project.

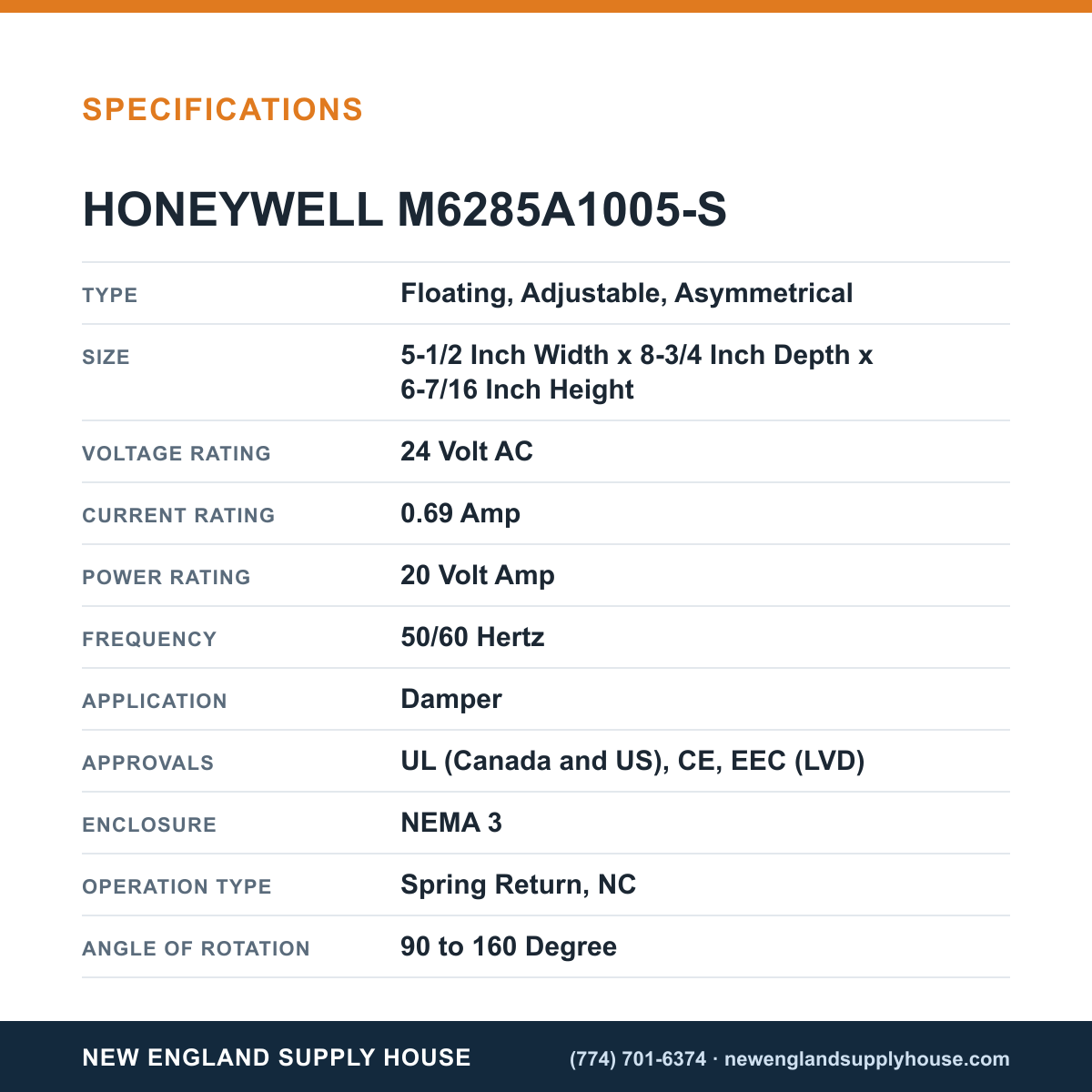

• Voltage: 24 VAC; current 0.69 A; power 20 VA
• Torque & Range: 60 in-lb; 90–160° rotation
• Durability: NEMA 3 enclosure; operating temp -40 to 150°F
• Construction: Foot mounted; 3/8 inch square shaft; dual-ended motor; quick-connect terminals
• Ratings: UL/CE/RoHS; Timing 30–60 seconds; Contact rating 7.2 A @120VAC / 3.6 A @240VAC (full load); 43.2 A @120VAC / 21.6 A @240VAC (locked rotor)
