Honeywell Commercial M7284A1004 Damper Actuator

The Damper Actuator M7284A1004 from Honeywell delivers precise modulating control for commercial HVAC dampers. This electric, modulating actuator operates with no spring return and uses 120 V AC power, drawing 0.24 A and consuming 23 W to smoothly position dampers across a 90° swing. Built for rugged environments, its die-cast aluminum body sits in a NEMA 3 enclosure, making it suitable for indoor or protected outdoor installations. With clockwise rotation and a control signal range of 4–20 mA, it integrates easily with modern building automation systems while providing reliable throttling of airflow through dampers and valves. The unit supports a nominal timing of 30–60 seconds, ensuring steady, predictable response. Its wide operating temperature range of -40 to 150°F expands its suitability for challenging environments, and it carries UL (Canada and US), CE, and RoHS compliance for safe, compliant operation.

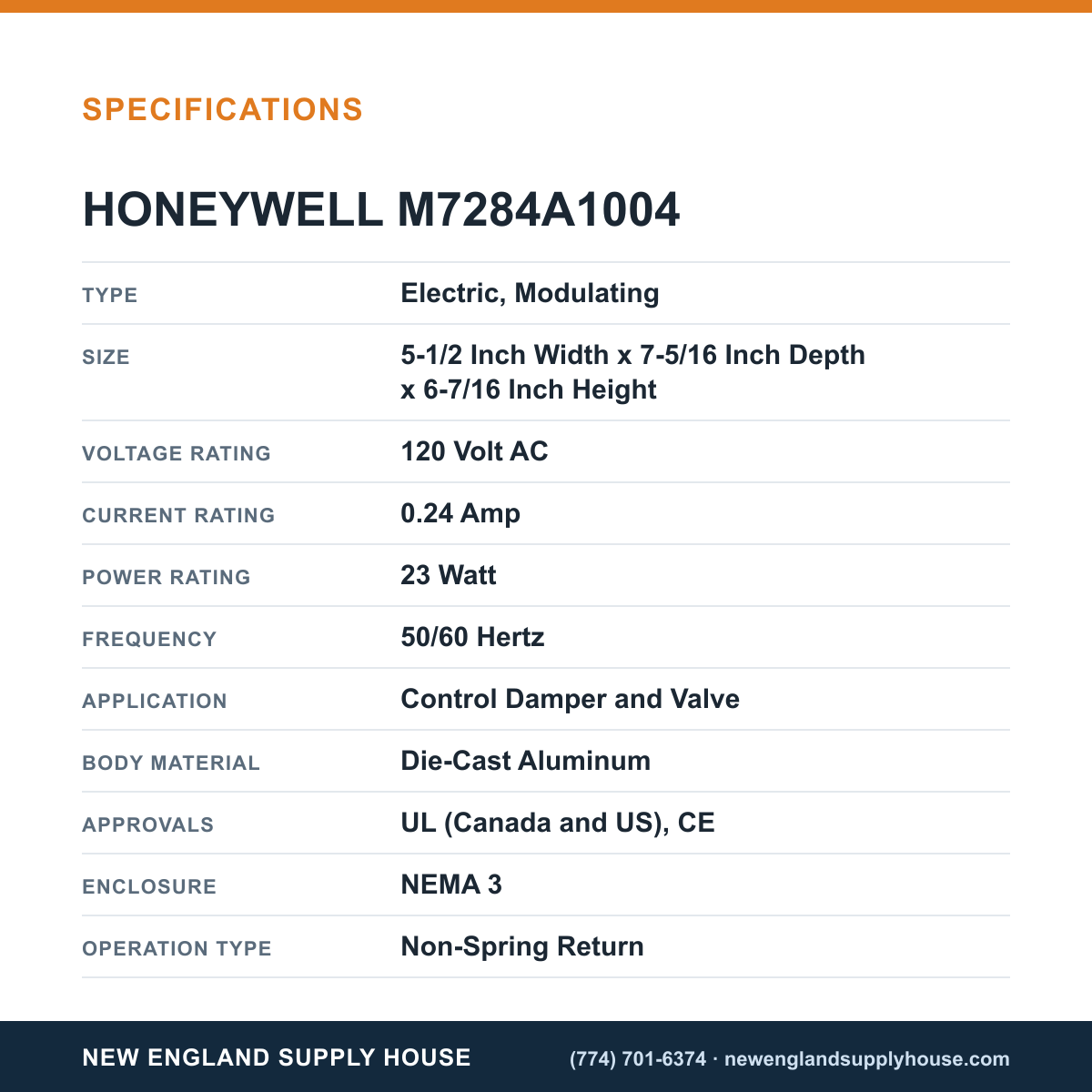

• Type: Electric, Modulating; Operation: Non-Spring Return
• Voltage: 120 VAC; Current: 0.24 A; Power: 23 W; Control: 4–20 mA
• Torque: 150 in‑lb; Angle: 90°; Rotation: Clockwise
• Enclosure: NEMA 3; Body: Die‑Cast Aluminum; Temperature: -40 to 150°F
• Mounting: Foot; Connection: Screw Terminal; Includes: Transformer, Screw Terminal Adapter
• Compliance: UL (Canada & US), CE, RoHS
