Honeywell Commercial M8185D1006 Damper Actuator

Damper Actuator, the Honeywell M8185D1006, delivers reliable ON/OFF control for HVAC dampers. This 2-Position SPST actuator operates on 24V AC with spring-return action for fail-safe positioning, ensuring quick, dependable damper and valve response.

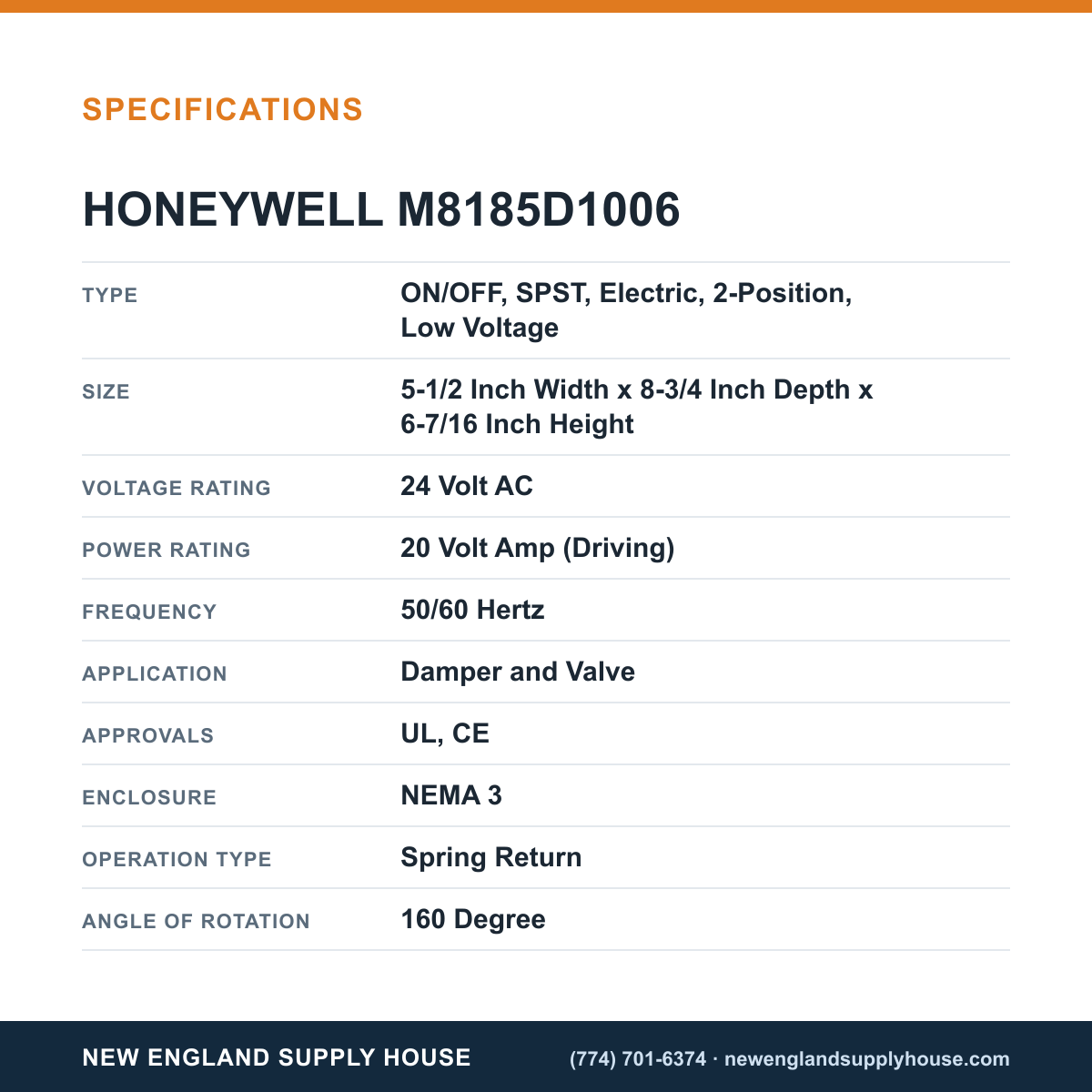

Designed for commercial environments, it features a NEMA 3 enclosure, foot mounting, and quick-connect terminals for easy installation. With a 60 in-lb torque and a 160° rotation, it provides robust actuation across a wide range of dampers while maintaining precise control. Its compact footprint (5-1/2" W x 8-3/4" D x 6-7/16" H) fits tight mechanical rooms, and its 30–60 second timing supports adaptable control sequences. The unit runs on 24V AC at 50/60 Hz and draws up to 20 VA while driving, balancing performance with efficiency. UL, CE, and RoHS compliance ensure safe, reliable operation in modern facilities.

• Primary function: Damper Actuator with ON/OFF, SPST 2-Position control
• Electrical specs: 24V AC, 50/60 Hz, 20 VA
• Mechanical: 60 in-lb torque, 160° rotation, clockwise
• Durability: NEMA 3 enclosure, foot mount, quick-connect terminals
• Environment & compliance: -40 to 150°F, UL, CE, RoHS
• Timing: 30–60 seconds
