Honeywell Commercial M8405A1006 Economizer Damper Actuator

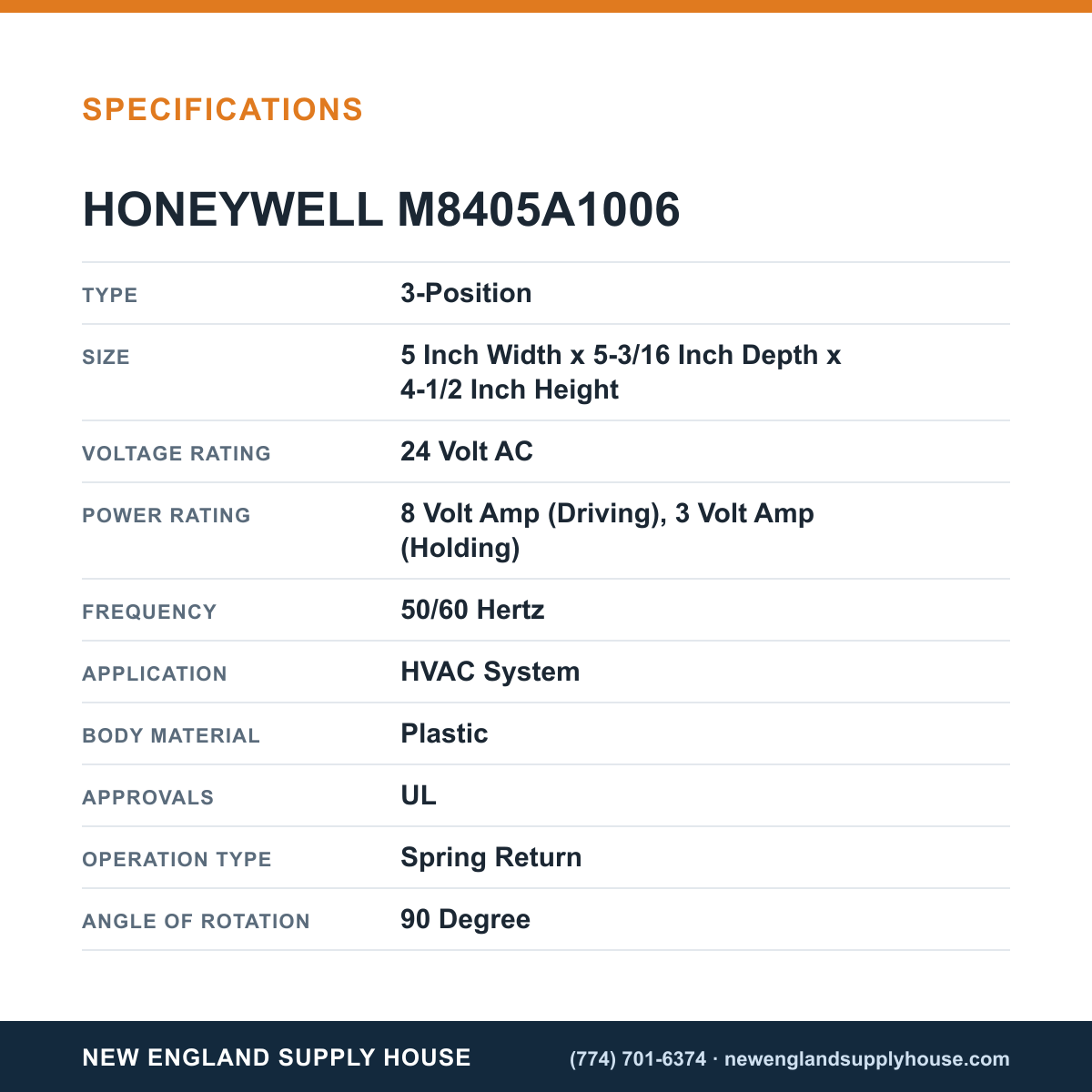

The Honeywell Commercial M8405A1006 Economizer Damper Actuator is a 3-Position, spring-return actuator designed for HVAC systems. Operating at 24V AC with a 24V maximum voltage and a 50/60 Hz frequency, it delivers precise damper positioning with 25 in-lb torque and a 90-degree CCW rotation. This compact plastic-body actuator fits standard economizers and offers a 5 x 5-3/16 x 4-1/2 inch footprint, foot mounting, and quick-connect terminals for fast wiring. The unit features 8 VA driving current and 3 VA holding current, a 90-second timing cycle, and a rotation direction of CCW to match typical damper linkages. UL-listed and designed for a broad ambient range from -25 to 125°F, it withstands demanding commercial environments. This dependable actuator is widely used in HVAC control for energy-efficient operation and reliable economizer performance. Key specs include foot-mount installation, quick-connect terminals, and a compact footprint, with a lightweight plastic body for easy handling in busy mechanical rooms.

• 3-Position, spring-return operation for precise economizer control
• 24V AC input with 24V maximum rating; 50/60 Hz compatibility
• 90-degree CCW rotation and 25 in-lb torque for reliable damper positioning
• Foot-mount installation and quick-connect terminals for easy wiring
• UL approved, operates from -25°F to 125°F; compact plastic body (5" W x 5-3/16" D x 4-1/2" H)
