Honeywell Commercial M9174B1027 Damper Actuator

Honeywell M9174B1027 Damper Actuator is a high-precision electric proportional damper actuator designed for commercial HVAC systems. This non-spring-return unit delivers reliable damper control with fast response, supported by UL and CE approvals.

Operate with 120 VAC at 50/60 Hz and 75 in-lb of torque to move dampers through a precise 90-degree, clockwise rotation in a 30–60 second window. This configuration makes it an ideal electric proportional damper actuator for accurate airflow modulation and energy efficiency in demanding environments.

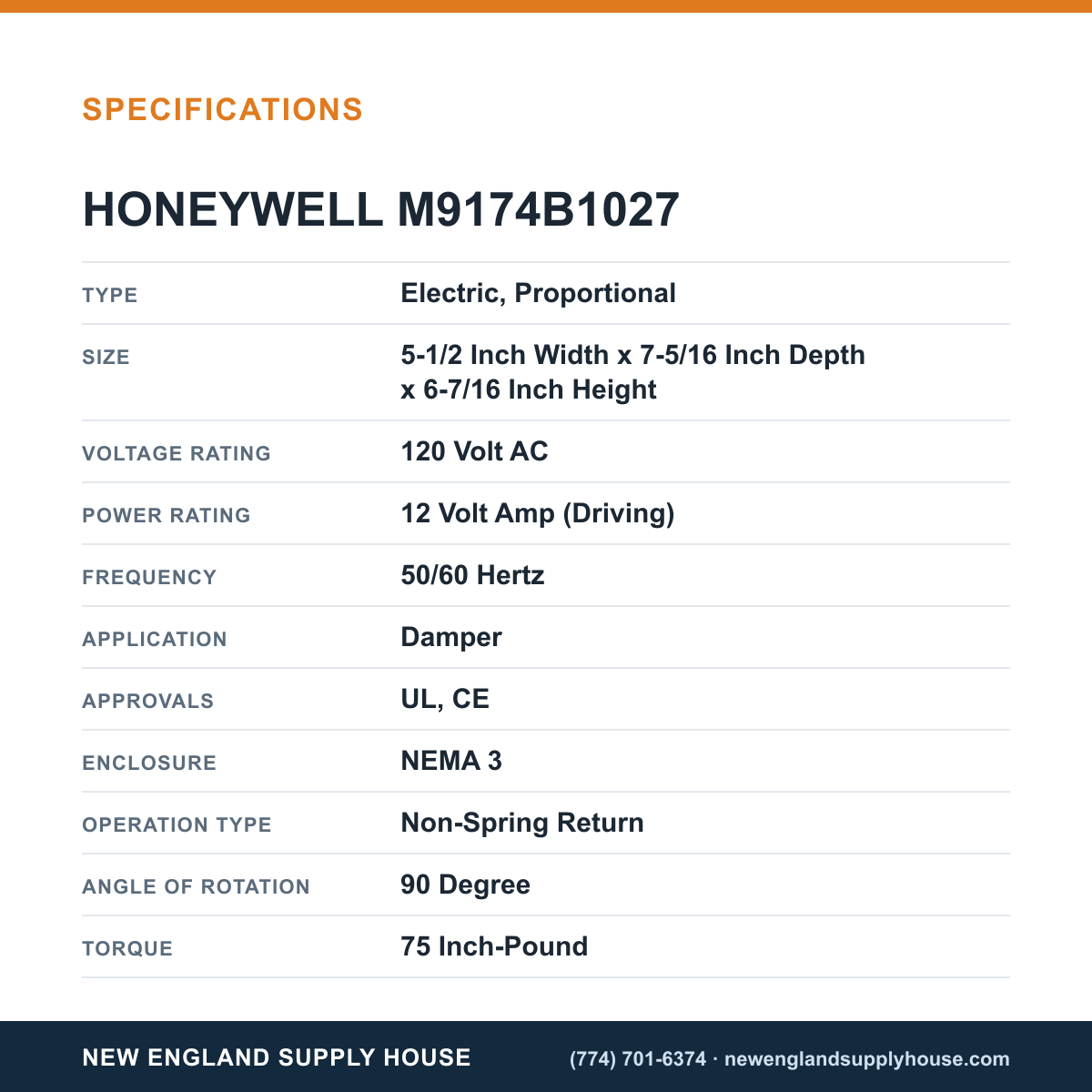

• Type: Electric, Proportional
• Operation: Non-Spring Return
• Voltage: 120 VAC; 50/60 Hz
• Power: 12 VA (driving)
• Torque: 75 in-lb
• Angle of Rotation: 90 degrees; Rotation: Clockwise
• Enclosure: NEMA 3
• Size: 5-1/2 in W x 7-5/16 in D x 6-7/16 in H
• Mounting: Foot Mount
• Connection: Quick Connect Terminals
• Includes: Transformer and Auxiliary Switch
• Approvals: UL, CE

Designed for robust damper control in commercial HVAC, it combines precise positioning, durable construction, and easy installation for reliable performance year after year.
