Honeywell Commercial M9184A1019 Actuator Motor

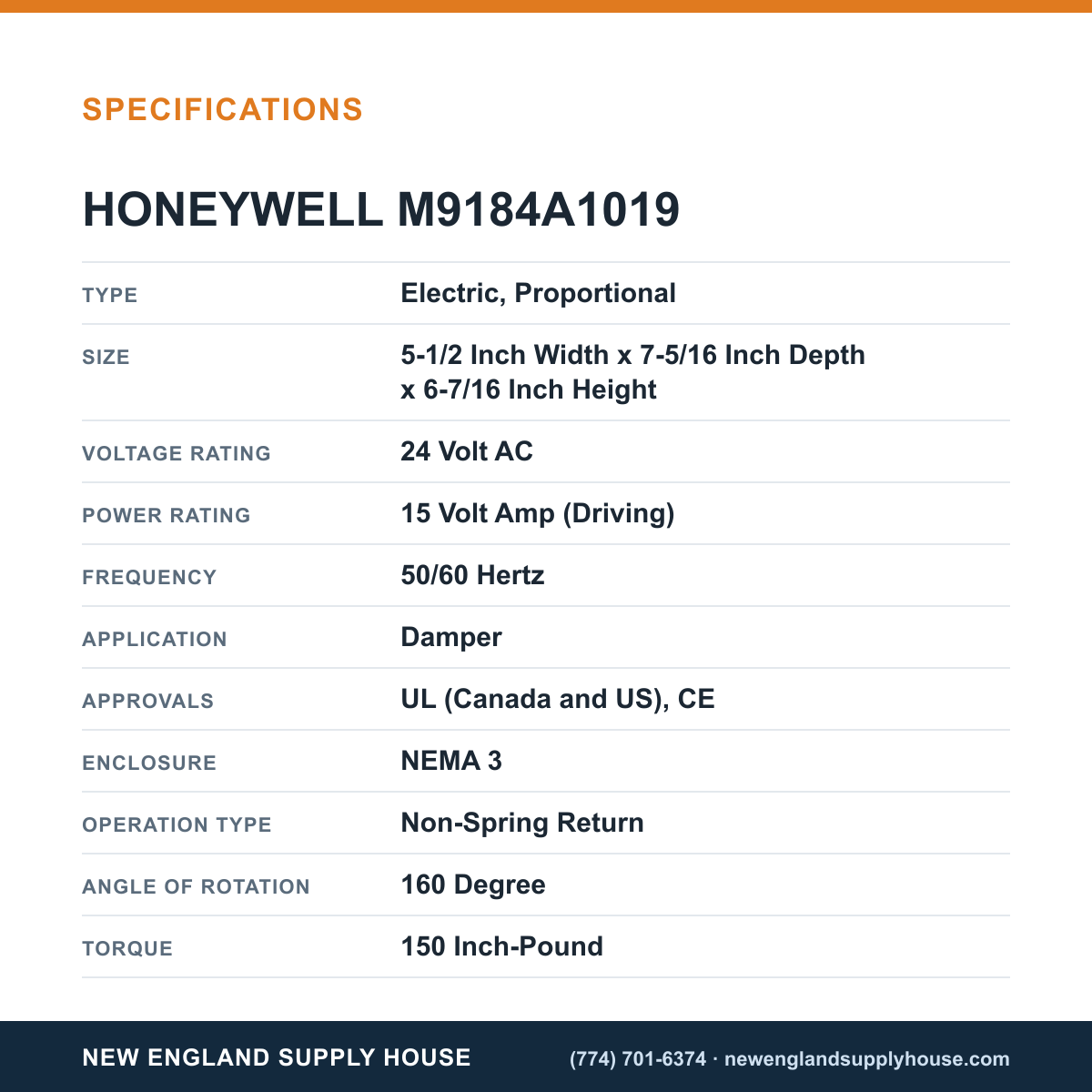

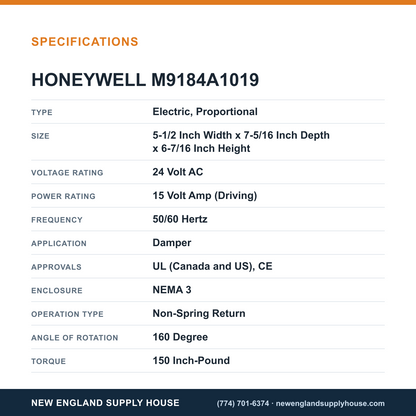

Honeywell Commercial M9184A1019 Actuator Motor is an electric actuator designed for precise proportional control of dampers. Operating at 24 Volt AC with 50/60 Hz, it delivers up to 150 inch-pounds of torque and a 160-degree rotation for accurate airflow modulation. The model features a non-spring return design, clockwise rotation, and a nominal travel time of 30–60 seconds to respond quickly in busy HVAC environments.

Built for demanding commercial use, this actuator comes in a NEMA 3 enclosure with a foot-mount installation and quick-connect terminals for straightforward wiring. It supports a wide operating temperature from -40 to 150°F and is UL-listed (Canada and US), CE, and RoHS compliant, ensuring reliable performance and regulatory compliance in modern buildings. Power rating is 15 VA (Driving).

• Electric actuator with proportional control for precise damper positioning
• 24 VAC operation (50/60 Hz) with 150 in-lb torque and 160° travel
• Non-spring return design with clockwise rotation
• NEMA 3 enclosure, foot-mount, and quick-connect terminals
• 30–60 second nominal travel time and wide -40 to 150°F operating range
• UL Listed, CE, and RoHS compliant
