Honeywell Commercial M9184D1021 Actuator Motor

The Honeywell Commercial M9184D1021 Actuator Motor is a precision electric, proportional actuator designed for reliable damper control in commercial HVAC systems. Featuring non-spring return operation and 24V AC input, it delivers accurate positioning and dependable performance across varying temperatures.

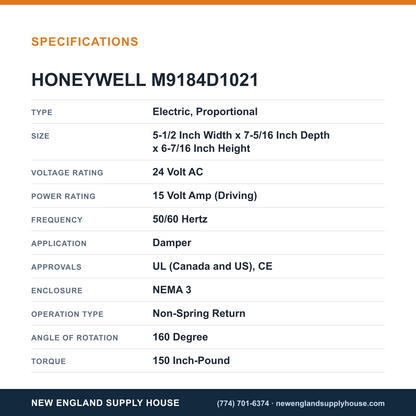

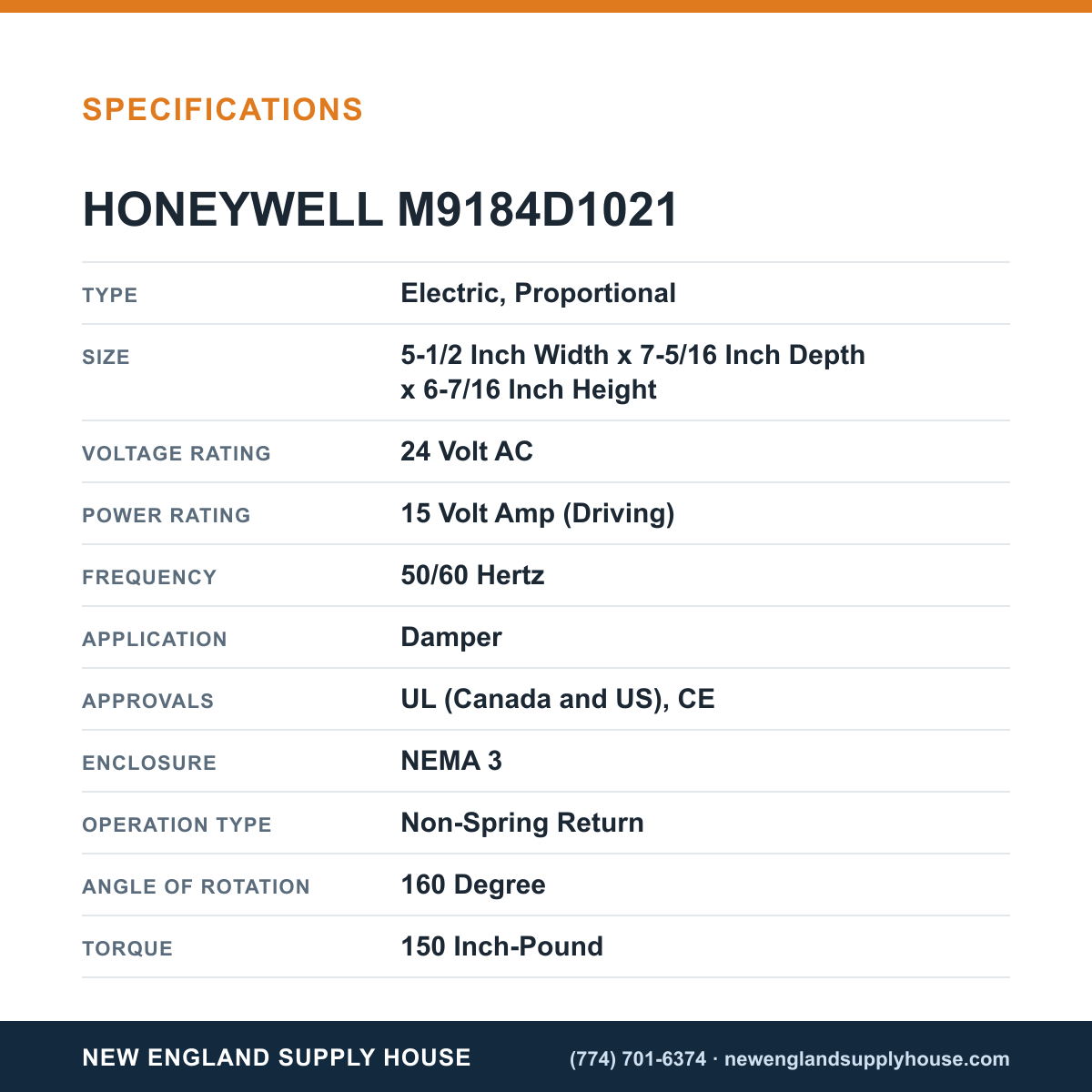

Key features:

• Type: Electric, Proportional
• Operation: Non-Spring Return
• Voltage/Frequency: 24 VAC, 50/60 Hz
• Torque: 150 in-lb
• Angle of Rotation: 160°
• Enclosure: NEMA 3
• Dimensions: 5-1/2 in W x 7-5/16 in D x 6-7/16 in H
• Mounting: Foot Mount
• Connection: Quick Connect Terminal
• Rotation: Clockwise
• Nominal Time: 30–60 seconds
• Operating Temperature: -40°F to 150°F
• Application: Damper
• Approvals: UL (Canada/US), CE; RoHS Compliant

Built for durability in busy commercial environments, the M9184D1021 uses a rugged NEMA 3 enclosure, supports clockwise rotation, and offers quick-connect terminals for easy wiring. Ideal for damper control, this proportional actuator provides smooth, precise positioning with dependable UL/CE RoHS compliance for peace of mind in demanding installations.
