Honeywell Commercial M9185D1004 Actuator Motor

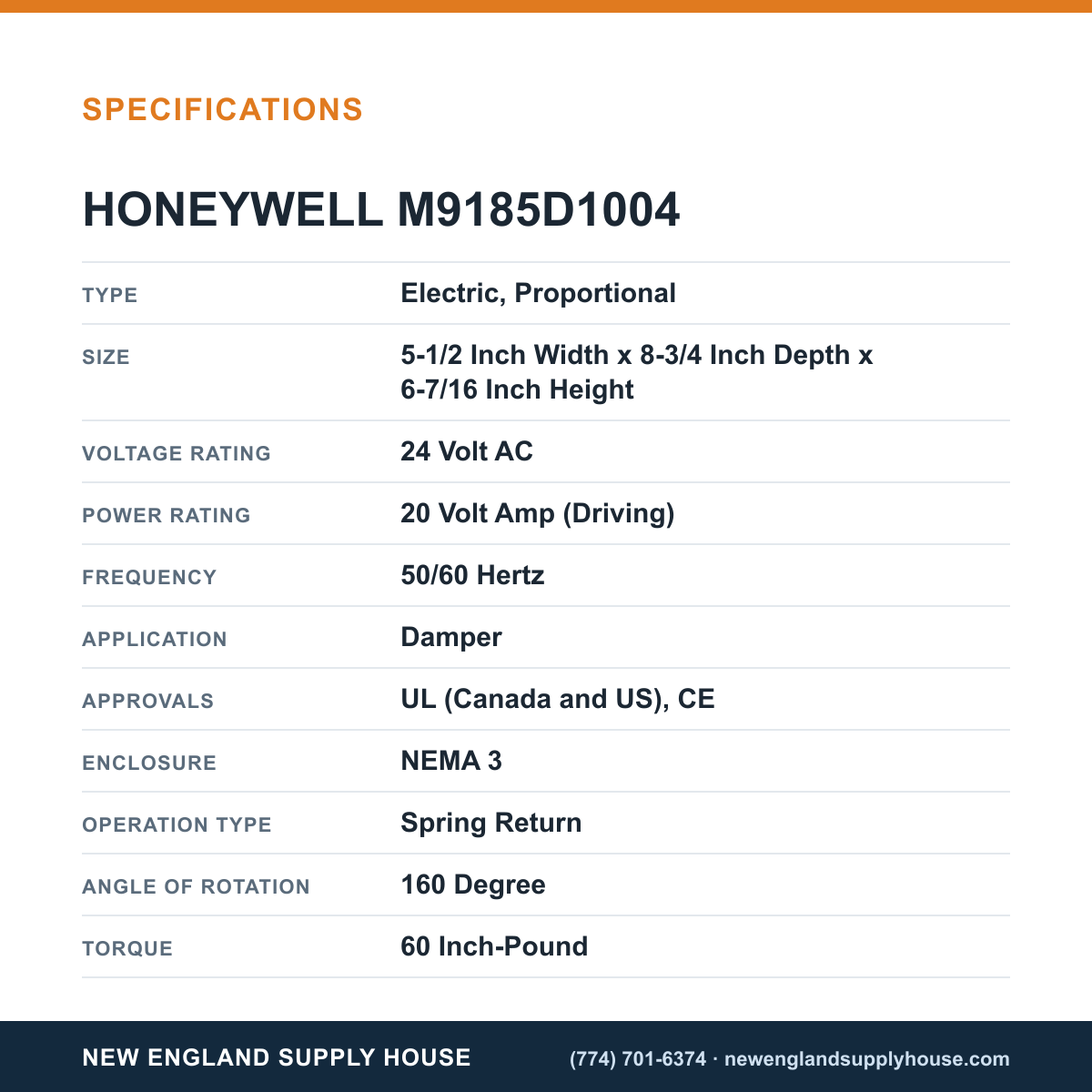

The Honeywell Commercial M9185D1004 Actuator Motor is a high-performance electric actuator designed for precise damper control in commercial HVAC systems. As a proportional actuator, it delivers accurate positioning for HVAC system balancing. The unit operates with spring return and is rated for 24V AC at 50/60 Hz, providing 60 inch-pounds of torque and a 160° rotation range. Built with a NEMA 3 enclosure, this actuator works in varied environmental conditions and supports convenient foot mounting and quick-connect terminals for fast installation. Its nominal time of 30–60 seconds ensures responsive damper movement, while clockwise rotation aligns with standard ductwork configurations. The operating temperature range of -40 to 150 °F enables year-round reliability.

• Proportional electric actuator for precise damper control
• Spring-return operation for fail-safe positioning
• Powered by 24V AC at 50/60 Hz with 60 in-lb torque
• Adjusts through 160° of rotation in 30–60 s
• NEMA 3 enclosure, foot mounting, and quick-connect terminals
• UL (Canada/US), CE, and RoHS compliant
