Honeywell Commercial ML6161A2009 Damper Actuator

The Honeywell Commercial ML6161A2009 Damper Actuator is a 24V AC ON/OFF actuator designed for reliable HVAC control in commercial systems. It combines a Direct Coupled, SPDT, floating configuration with a non-spring return and a declutch mechanism to deliver precise, durable performance.

Operating at 50/60 Hz and drawing 1.8 VA, the actuator delivers 35 inch-pounds of torque through a 90-degree rotation. It uses a NEMA 1 enclosure with a plastic body for lightweight durability and a shaft sized 3/8 to 1/2 inch for versatile damper compatibility. Ambient temperature tolerance is 20 to 125°F.

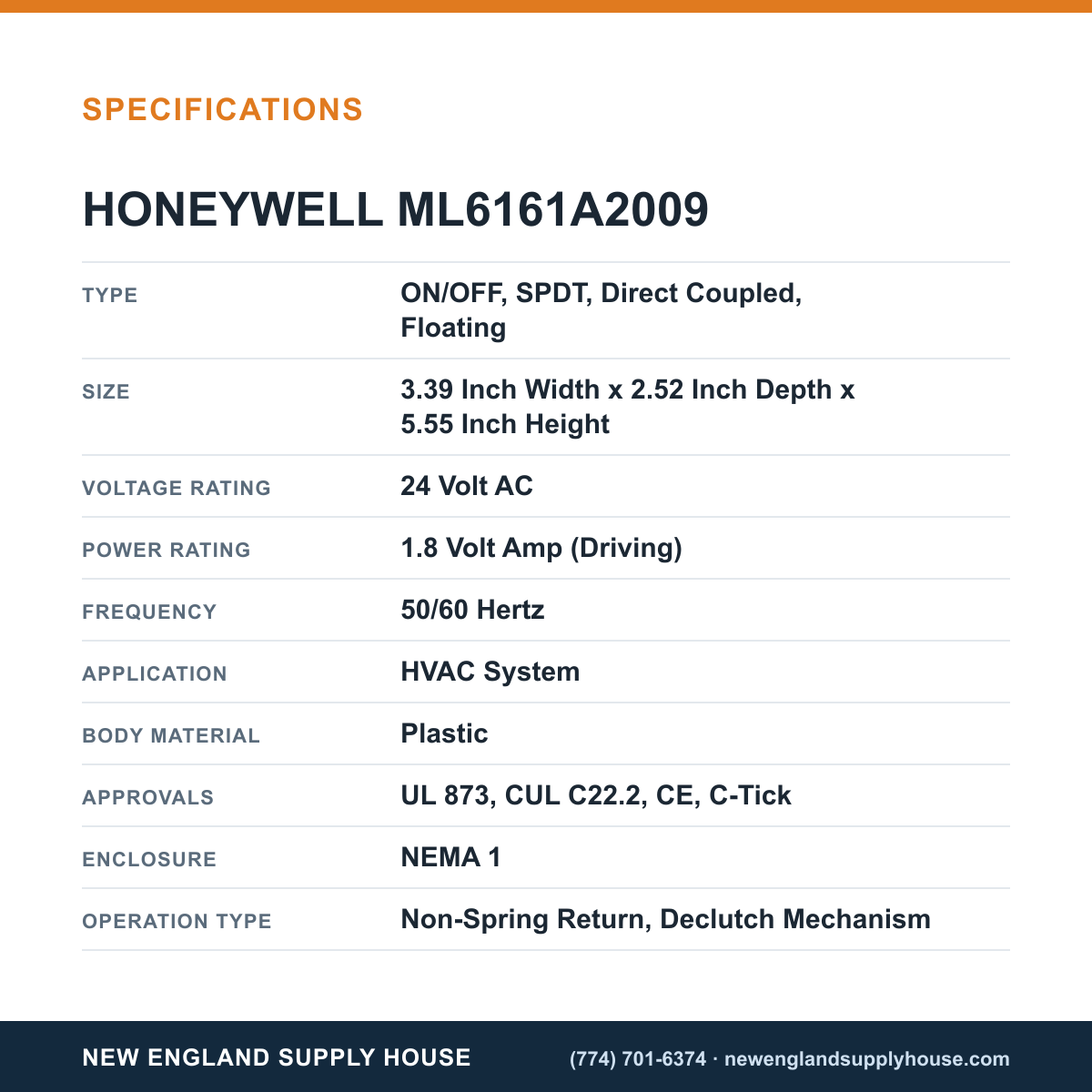

Key features

• Voltage: 24V AC
• Configuration: ON/OFF, SPDT, floating; direct-coupled
• Return: Non-spring return with declutch mechanism
• Torque & rotation: 35 in-lb; 90°
• Enclosure & body: NEMA 1; plastic
• Electrical draw: 1.8 VA; screw-terminal connection
• Timing: 90 seconds
• Shaft: 3/8"–1/2"
• Certifications: UL 873, CUL/C22.2, CE, C-Tick
