Honeywell Commercial ML6425A3022 Valve Actuator

The Honeywell Commercial ML6425A3022 Valve Actuator is a rugged, 2-position electric actuator designed for precision control in commercial HVAC systems. As a direct-coupled SPDT valve actuator with spring-return operation, it delivers reliable actuation from a 24 V AC power supply for compatibility with standard building controls.

Built for durability, this actuator features an IP54 enclosure, a robust ABS-FR plastic body with an aluminum yoke, and a compact footprint. It offers a 3/4 inch stroke, 135 inch-pounds of torque, and a 90-second timing profile, ensuring smooth, dependable damper and valve movement across a wide operating range (14 to 122°F).

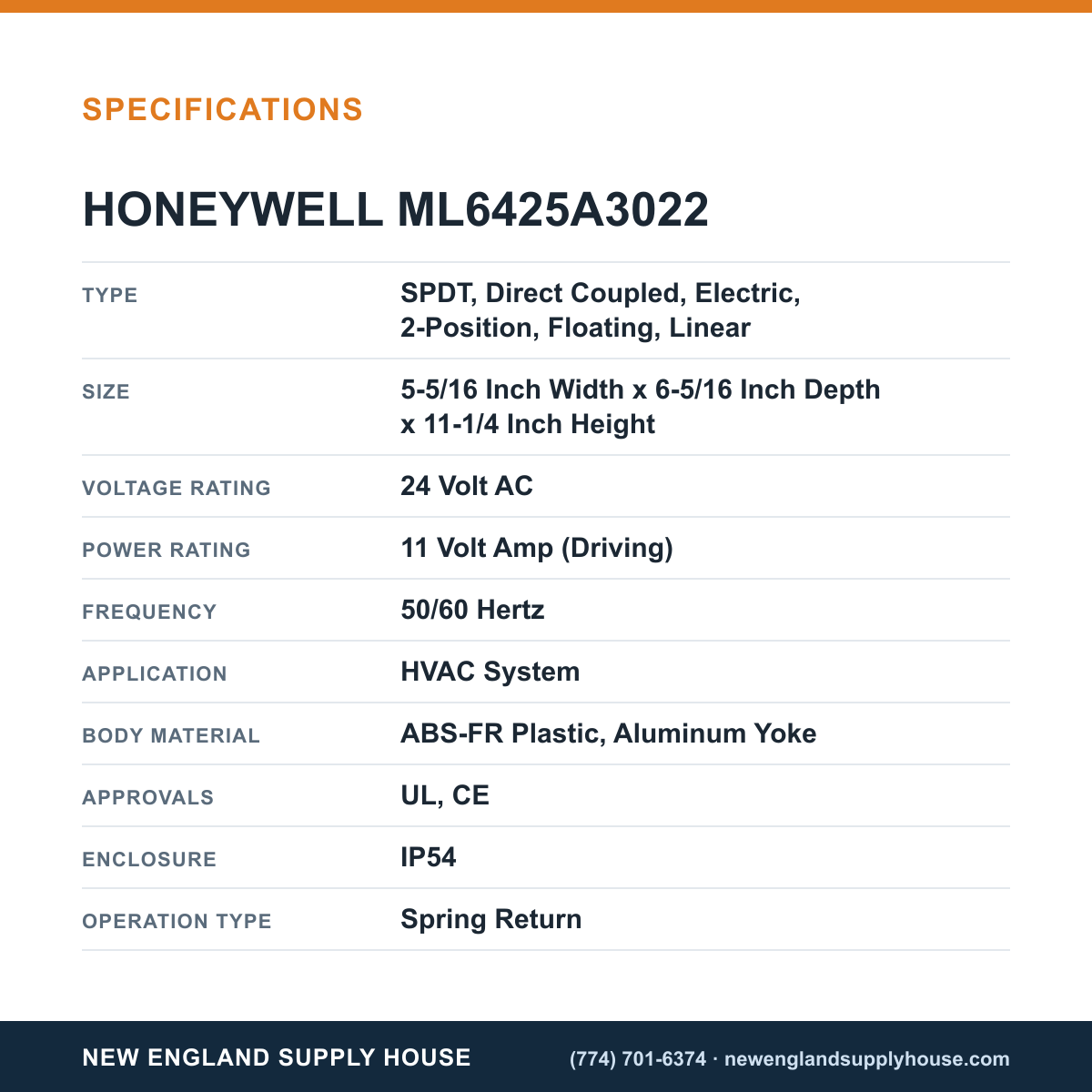

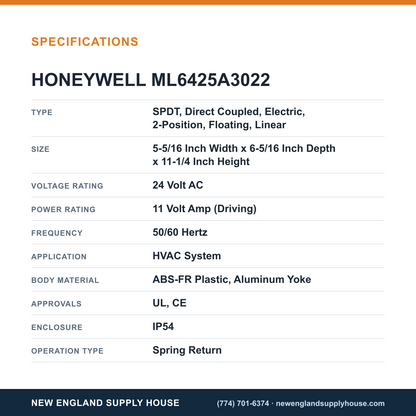

• Type and operation: SPDT, Direct Coupled, Electric, 2-Position, Floating, Linear; Spring Return
• Electrical specs: 24 V AC, 50/60 Hz, driving power ~11 VA
• Mechanical: Stroke 3/4 inch; Torque 135 in-lb
• Durability: IP54 enclosure; ABS-FR plastic body with aluminum yoke; operating temp 14–122°F
• Physical size & mounting: 5-5/16" W x 6-5/16" D x 11-1/4" H
• Installation & approvals: Screw terminal connections; UL and CE listed; includes 1/2" conduit hub and 1/2" conduit adapter

Designed for seamless integration in HVAC systems, this actuator provides reliable, energy-efficient control with straightforward wiring and durable construction.
