Honeywell Commercial MN6105A1011 Damper Actuator

The Honeywell Commercial MN6105A1011 Damper Actuator delivers precise, reliable control for commercial HVAC systems. This ON/OFF, SPDT, direct-coupled, floating actuator features a non-spring return operation with a declutch mechanism for dependable damper positioning.

Powered by 24V AC/DC with 50/60 Hz compatibility, it delivers robust performance in a compact 2.6" W x 2.44" D x 5.23" H package. The actuator provides 44 in-lb of torque over a 95-degree travel and rugged IP54/NEMA 2 protection.

Built for HVAC environments, its plenum-rated plastic body, 3/8" to 5/8" shaft, and -5 to 140 °F operating range ensure durable installation. Wiring comes via enclosed screw terminals for secure connections and simplified maintenance.

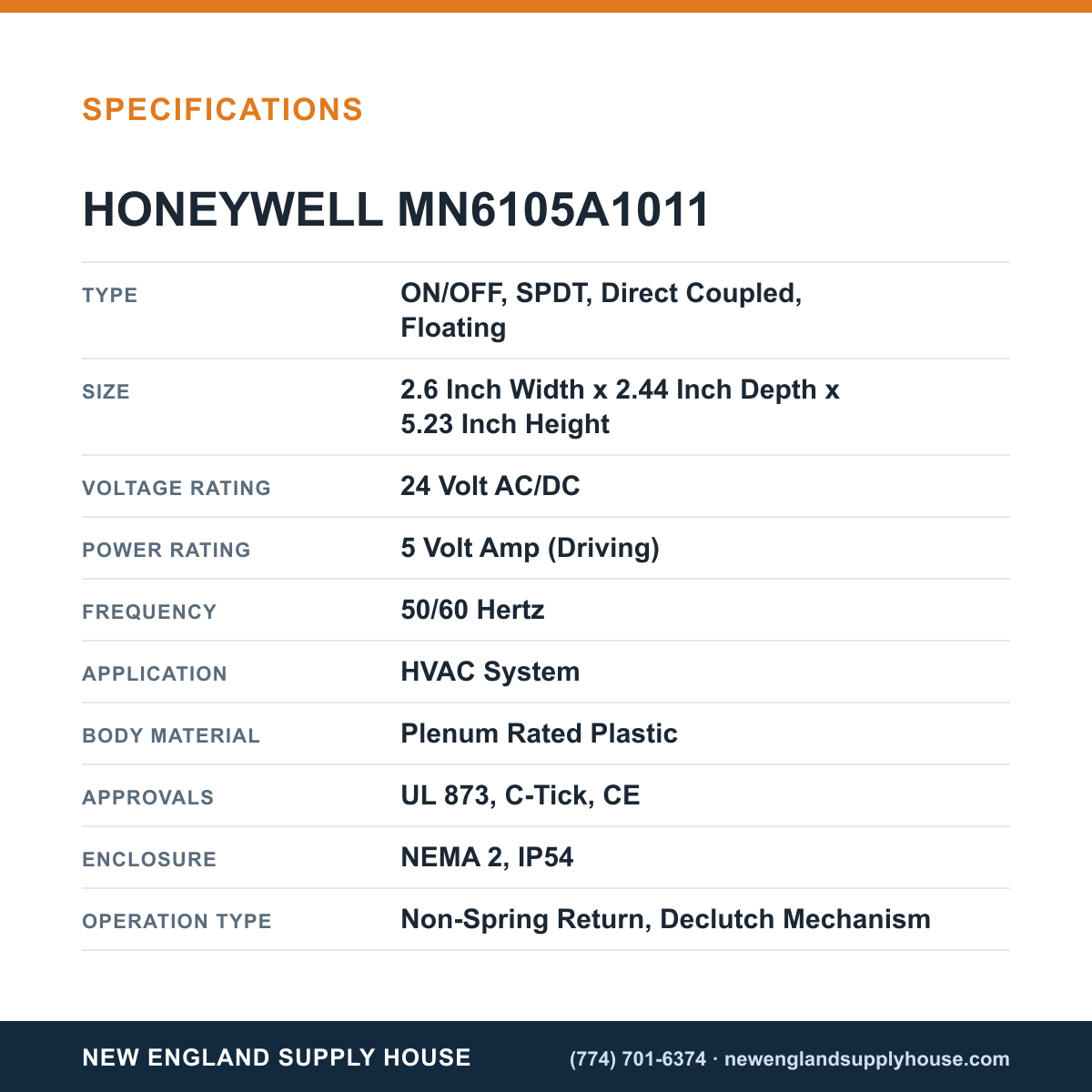

• Type: ON/OFF, SPDT, Direct Coupled, Floating
• Operation: Non-Spring Return, Declutch Mechanism
• Electrical: 24V AC/DC; 50/60 Hz
• Torque & Travel: 44 in-lb; 95° rotation
• Enclosure: NEMA 2, IP54
• Dimensions: 2.6" W × 2.44" D × 5.23" H
• Shaft: 3/8" to 5/8" diameter
• Body: Plenum-rated plastic
• Temperature Range: -5 to 140 °F
• Application: HVAC System
• Certifications: UL 873, CE, C-Tick
• Connections: Enclosed screw terminal strip
• Timing: 95 seconds

Designed for retrofit or new installations, this damper actuator integrates with standard control schemes, delivering dependable performance across cooling and heating applications.
