Honeywell Commercial MN6120A1002 Damper Actuator

The Honeywell Commercial MN6120A1002 Damper Actuator is an ON/OFF, SPDT, direct-coupled, 2-position floating actuator built for modern HVAC systems. Operated from 24 V AC (50/60 Hz) with a 6 VA driving power, it delivers dependable damper positioning with a declutch mechanism and non-spring return for precise, safe control.

Designed for harsh environments, this actuator features a plenum-rated plastic body and a NEMA 2/IP54 enclosure, ensuring reliable operation in ducts and industrial settings. Its compact size, 95-degree rotation, and 175 in-lb torque cover a wide range of dampers, while the included mounting bracket and self-centering shaft adapter simplify installation.

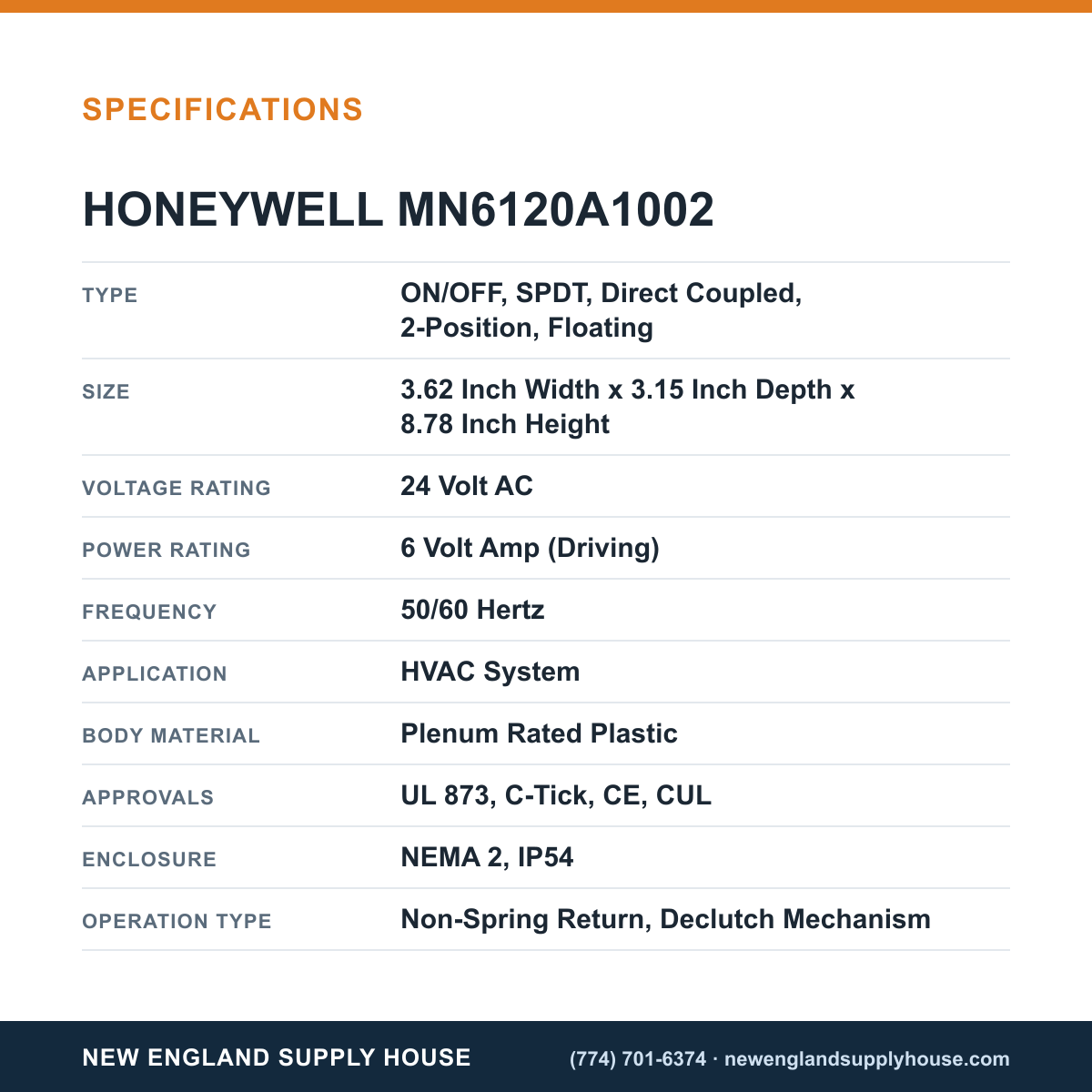

• Voltage / Power: 24 VAC; 50/60 Hz; 6 VA driving power
• Output & Motion: SPDT, 2-position, direct-coupled, floating with 95° rotation
• Mechanical: Torque 175 in-lb; Shaft diameter 3/8" to 1.06"
• Size & Enclosure: 3.62"W x 3.15"D x 8.78"H; NEMA 2, IP54; plenum-rated plastic housing
• Environmental: Operating temperature -5 to 140°F
• Connections: Enclosed screw terminal strip
• Includes: Mounting bracket, self-centering shaft adapter
• Certifications: UL 873, CE, CUL, C-Tick
• Applications: HVAC system installations
