Honeywell Commercial MN7220A2007 Damper Actuator

Honeywell MN7220A2007 Damper Actuator delivers precise damper positioning for commercial HVAC systems, combining reliability with plenum-rated durability. This direct coupled, non-spring return actuator operates on 24 Volt AC and is built to handle demanding environments while maintaining accurate control.

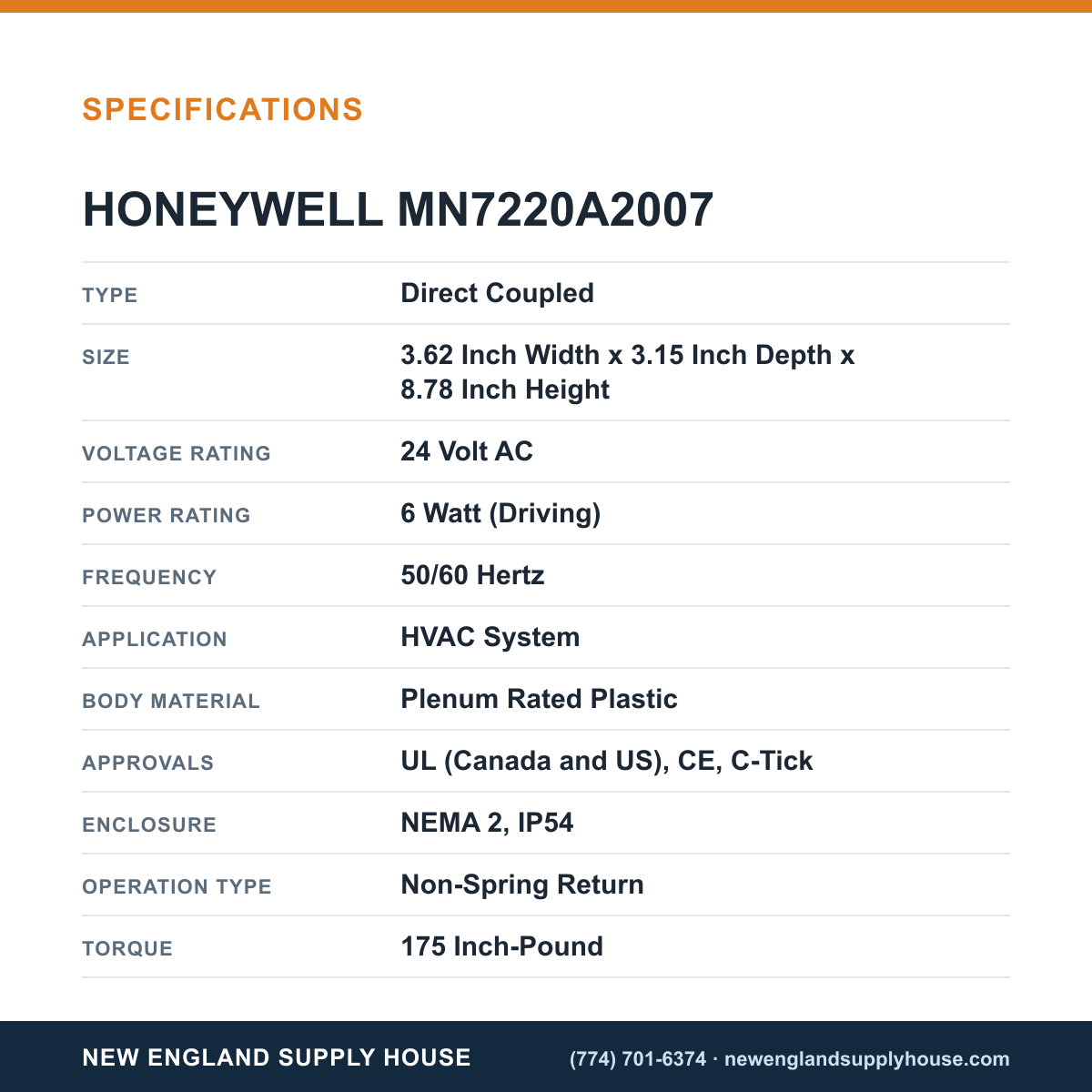

With a 175 in-lb torque and a compact footprint, this 6 W actuator fits standard ductwork and integrates with common control schemes. The enclosure meets IP54 and NEMA 2 ratings, offering rugged protection against dust and water exposure. It supports versatile control signals (2 to 10 V DC, 4 to 20 mA) and uses screw terminal connections for easy field wiring. The unit ships with a mounting bracket and self-centering shaft adapter for quick setup.

• Direct coupled, non-spring return operation
• 24V AC, 50/60 Hz, 6 W driving power
• 175 in-lb torque for reliable damper control
• IP54/NEMA 2 enclosure for rugged HVAC environments
• Control signals: 2–10 V DC and 4–20 mA
• Screw terminal connections for easy wiring
• Includes mounting bracket and self-centering shaft adapter
• Compact size: 3.62" W x 3.15" D x 8.78" H
• Shaft range: 3/8" to 1.06"
• Operating temperature: -5 to 140 F
• Timing: 95 seconds
• UL (Canada & US), CE, C-Tick approvals
