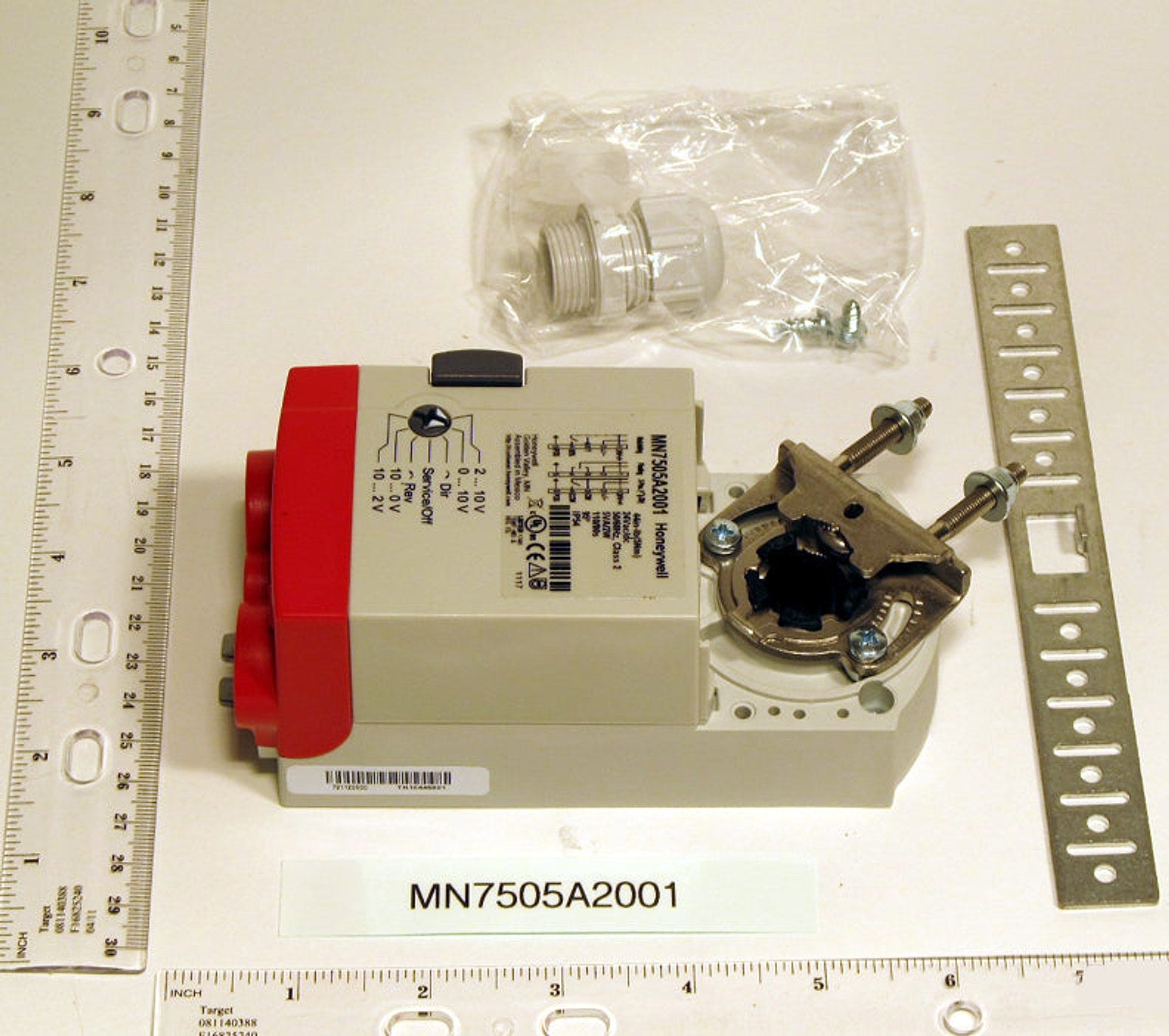

Honeywell Commercial MN7505A2001 Damper Actuator

The Honeywell MN7505A2001 Damper Actuator is a rugged ON/OFF, SPDT, direct-coupled damper actuator designed for commercial HVAC systems. This floating, non-spring-return unit operates on 24V AC/DC and accepts a 0–10V DC control signal, with a 2–10V DC output for feedback to the control system. A declutch mechanism provides reliable service in demanding installations while simplifying maintenance.

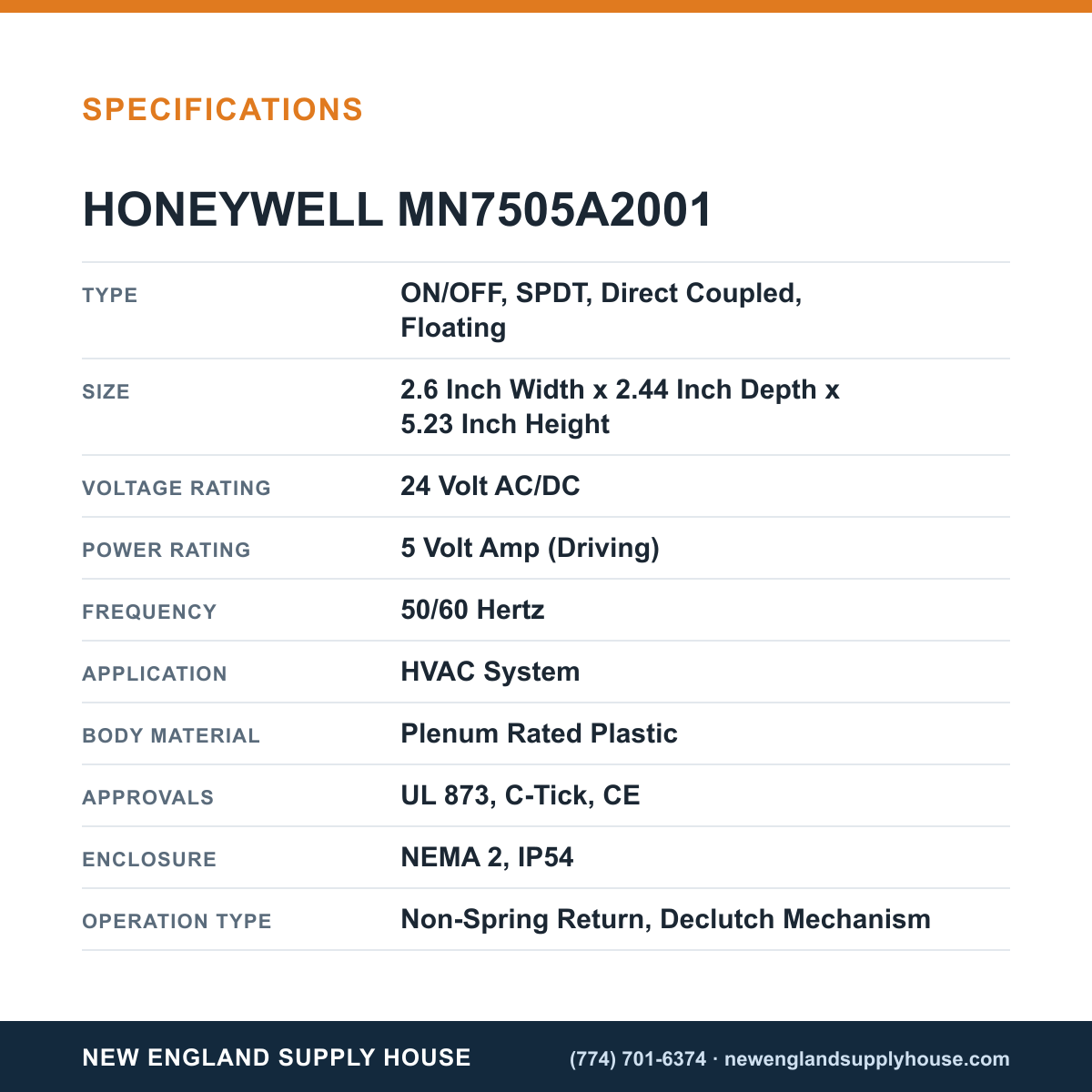

Key specs and capabilities enable precise air control in challenging environments, including 95° rotation, 44 in-lbs of torque, and a plenum-rated plastic body. The enclosure meets NEMA 2 and IP54 protection, ensuring resilience against dust and moisture aboard ductwork. The compact housing (2.6" W x 2.44" D x 5.23" H) supports a shaft range of 3/8" to 5/8" and is designed for easy integration with standard HVAC dampers. UL 873, CE, and C-Tick approvals further back the actuator’s reliability for commercial projects. Operating temperature ranges from -5 to 140°F to accommodate diverse job-site conditions.

• ON/OFF, SPDT, Direct-Coupled, Floating operation
• Voltage: 24V AC/DC; Power: 5 VA (Driving)
• Control: 0–10V DC input; 2–10V DC output
• Rotation: 95°; Torque: 44 in-lbs
• Enclosure: NEMA 2, IP54; Body: Plenum-rated plastic
• Connections: Enclosed screw-terminal strip
• Shaft: 3/8" to 5/8"; Size: 2.6" W x 2.44" D x 5.23" H
